CAME ZA3P User Manual

L
N
 3
10 11
ENGLISH
p.
5
- Manual code:
319W86
319W86 v.
2
05/2015 © CAME cancelli automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.

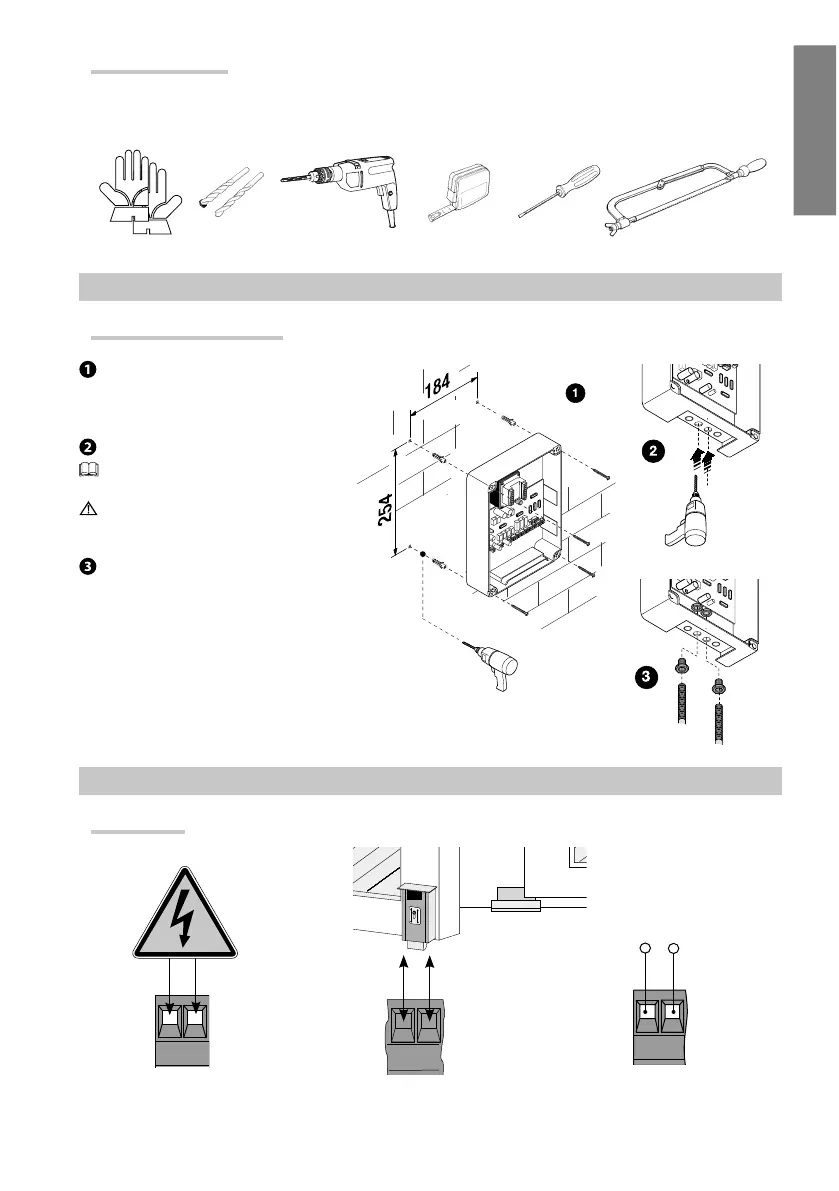

Tools and materials
Make sure you have all the tools and materials you will need for installing in total safety and in compliance with applicable
regulations. The figure shows some of the equipment installers will need.
INSTALLATION
Fastening the control panel
ELECTRICAL CONNECTIONS AND PROGRAMMING
Power supply
Control panel
230V A.C. 50/60 Hz
Terminals for connecting
24 VAC accessories.
Electolock connection
(12V-15W max.)
Fasten the control panel base in a
protected area; use rounded cross head
screws with maximum 6 mm diameter.
Perforate the pre-drilled holes.
The holes have different diameters:
23, 29 and 37 mm.
Be careful not to damage the control
board inside the control panel.
Enter the cable gland with the
corrugated tubes for threading the
electrical cables.

CAME ZA3P Specifications

General

Motor power supply	230 V AC
Maximum power	800 W
Protection rating	IP54
Operating temperature	-20°C to +55°C
Power supply	230V AC ±10%, 50/60Hz
Functions	Automatic closing
