CAME ZA3P User Manual

FROGFROG
FERNIFERNI
KRONOKRONO
ATIATI
FASTFAST
UVWXYEE3
2
FC1 FA2 FC2
FA1
2
FC1 FA2 FC2
FA1
ENGLISH
p.
6
- Manual code:
319W86
319W86 v.
2
05/2015 © CAME cancelli automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.

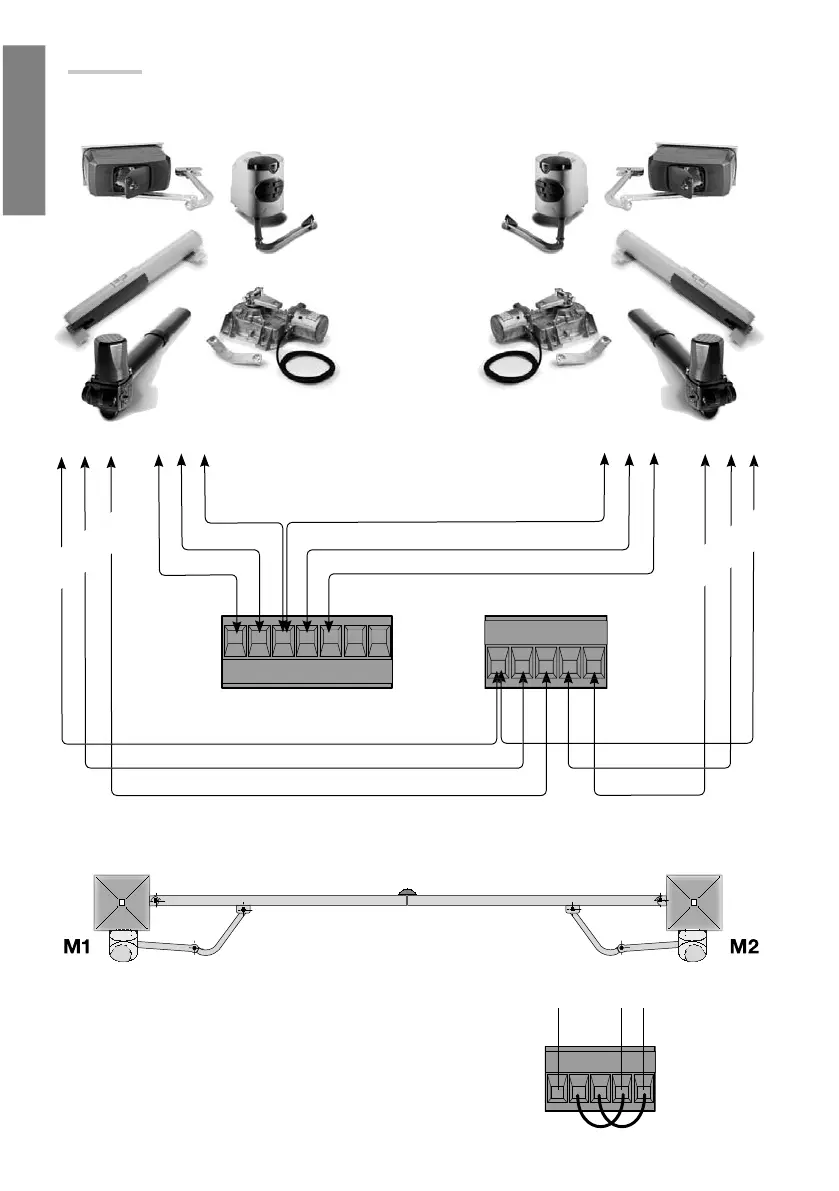

With gates with only one leaf:
• connect the gearmotor to W X Y (M2) regardless of the side it is
fi tted on (for FROG, if necessary, invert connections X and Y);
• connect the limit-switches to 2-FA2-FC2 and short-circuit
FA1-FA2/FC1-FC2.
Came gearmotors standard set opening scheme.
Delayed opening action
gearmotor (M1)
Delayed closing action
gearmotor (M2)
Gearmotor
contacts
NC
contacts
NC

CAME ZA3P Specifications

General

Motor power supply	230 V AC
Maximum power	800 W
Protection rating	IP54
Operating temperature	-20°C to +55°C
Power supply	230V AC ±10%, 50/60Hz
Functions	Automatic closing
