CAME ZA3P User Manual

10 11 S 1 2 3 3P 4 5 7 2 C1 CX B1 B2
11 S 1 2 3 3
10 11 S 1 2 3 3P 4 5 7 2
UVWXYEE3
ENGLISH
p.
7
- Manual code:
319W86
319W86 v.
2
05/2015 © CAME cancelli automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.

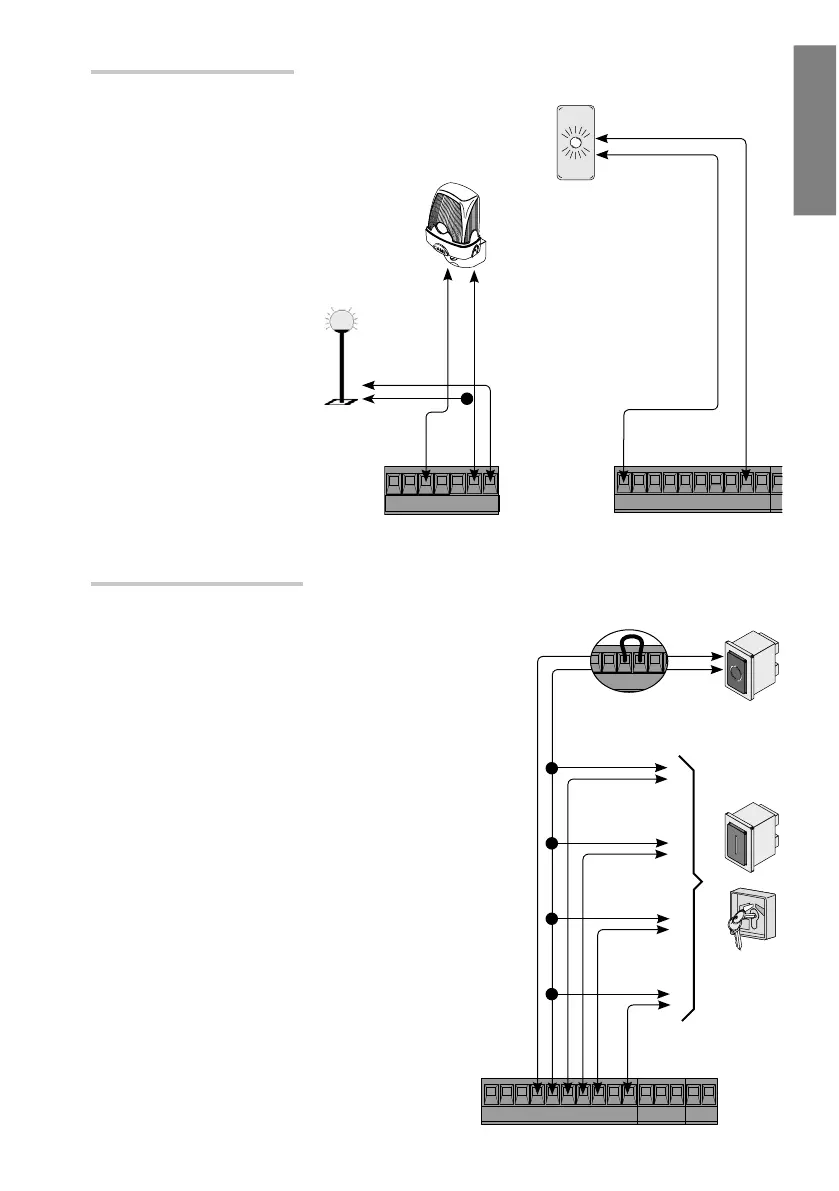

Warning and lighting devices
Gate open warning light (Contact rated at: 24V - 3W max.). - Warns when the
gate is open, and turns o when the gate is closed.
Movement fl ashing light (Contact rated at: 230V A.C.
- 25W max.). - Flashes when the gate is opening and
closing.
Courtesy light (230V-60W). -It stays on
for a fi xed time of 5 minutes from the
moment in which the gate-leaves start
their maneuver.
Command and control devices
Stop button (contact N.C.). - For commanding the gate stop while
excluding the automatic closing cycle. To resume movement, press
the command button or the transmitter button. If unused, short-circuit
terminals 1-2.
Opening key-switch selector and/or button (contact N.O.). - For
commanding gate opening.
Key-switch selector and/or button (contact N.O.). - For commanding
gate opening and closing. By pressing the button or turning the key-switch
selector, the gate inverts its movement or stops depending on the selection
made on the DIP-switches (see functions selecting, DIP-switches 2 and 3).
Partial opening key-switch selector and/or button (contact N.O.).
- For commanding the partial opening of a gate-leaf (2nd motor) for
pedestrian passage.
Closing key-switch selector and/or button (contact N.O.). - For
commanding gate closing.

CAME ZA3P Specifications

General

Motor power supply	230 V AC
Maximum power	800 W
Protection rating	IP54
Operating temperature	-20°C to +55°C
Power supply	230V AC ±10%, 50/60Hz
Functions	Automatic closing
