Before installing do the following:
• Check that the panel’s anchoring point is protected from possible blows, and that the anchoring surface is solid. Also check that the
anchoring is done using the appropriate bolts, screws etc.
• Make sure you have a suitable omnipolar cut-off device with contacts more than 3 mm apart, and independent (sectioned off) power
supply.
•
Make sure that any connections inside the case (that provide continuance to the protective circuit) are fitted with extra insulation
as compared to the other conductive parts inside;
• Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical
damage.
Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and compliance with the

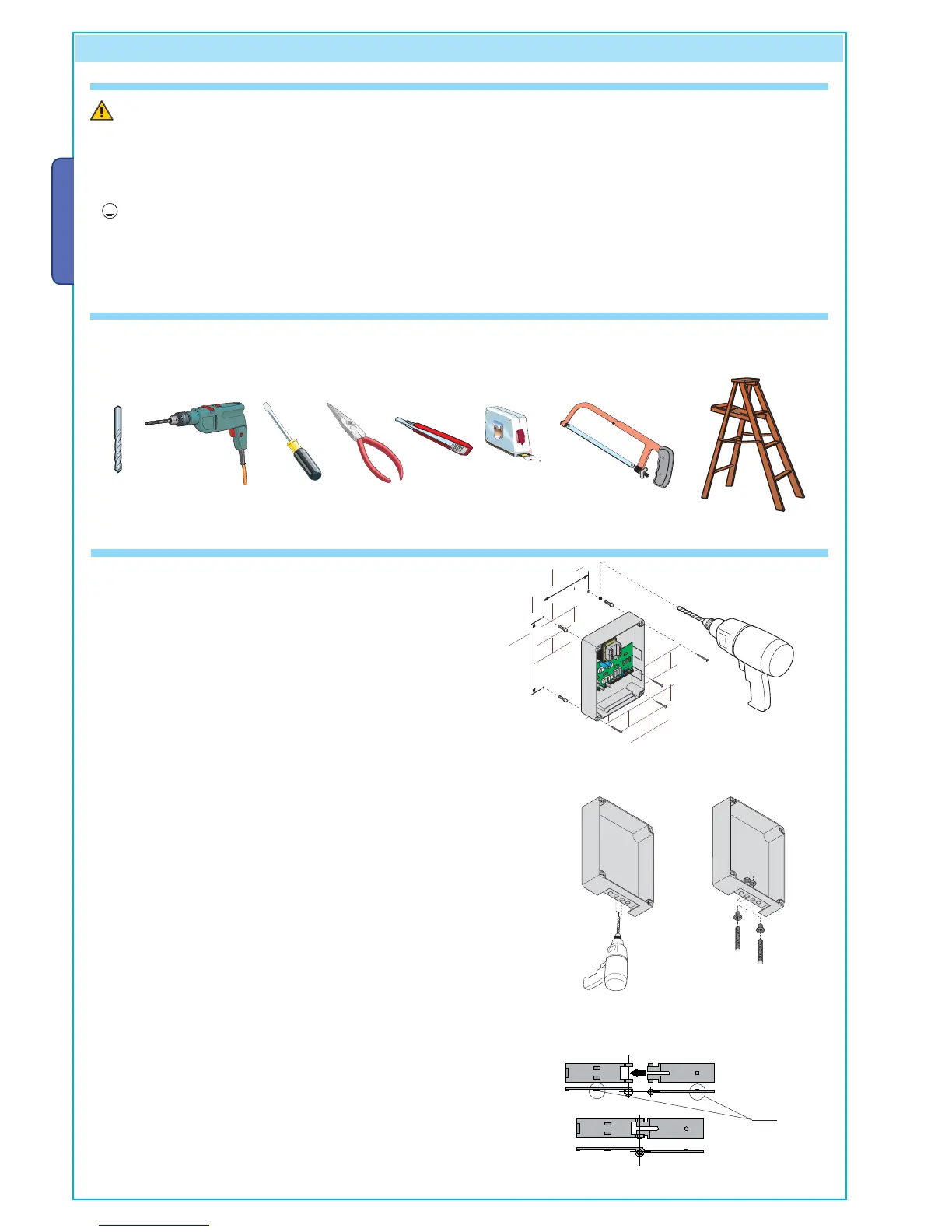

current standards and regulations. The following figure illustrates the minimum equipment needed by the installer.
Here are some examples.
Fix the base of the panel in a protected area; we suggest
using round top Phillips recessed head screws of max. 6mm in
diameter.
5.3 - FIXING AND MOUNTING THE BOX
Perforate the pre-punched holes and insert the cable glands with
the corrugated tubing for the electrical cables to travel through
N.B.: the pre-punched holes have the following diameters:
23m 29 and 37 mm.
Assemble the pressure hinges.
5 Installation
5.1 - PRELIMINARY CHECKS
5.2 - TOOLS AND MATERIALS
