1.2
04/2010
9 © CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

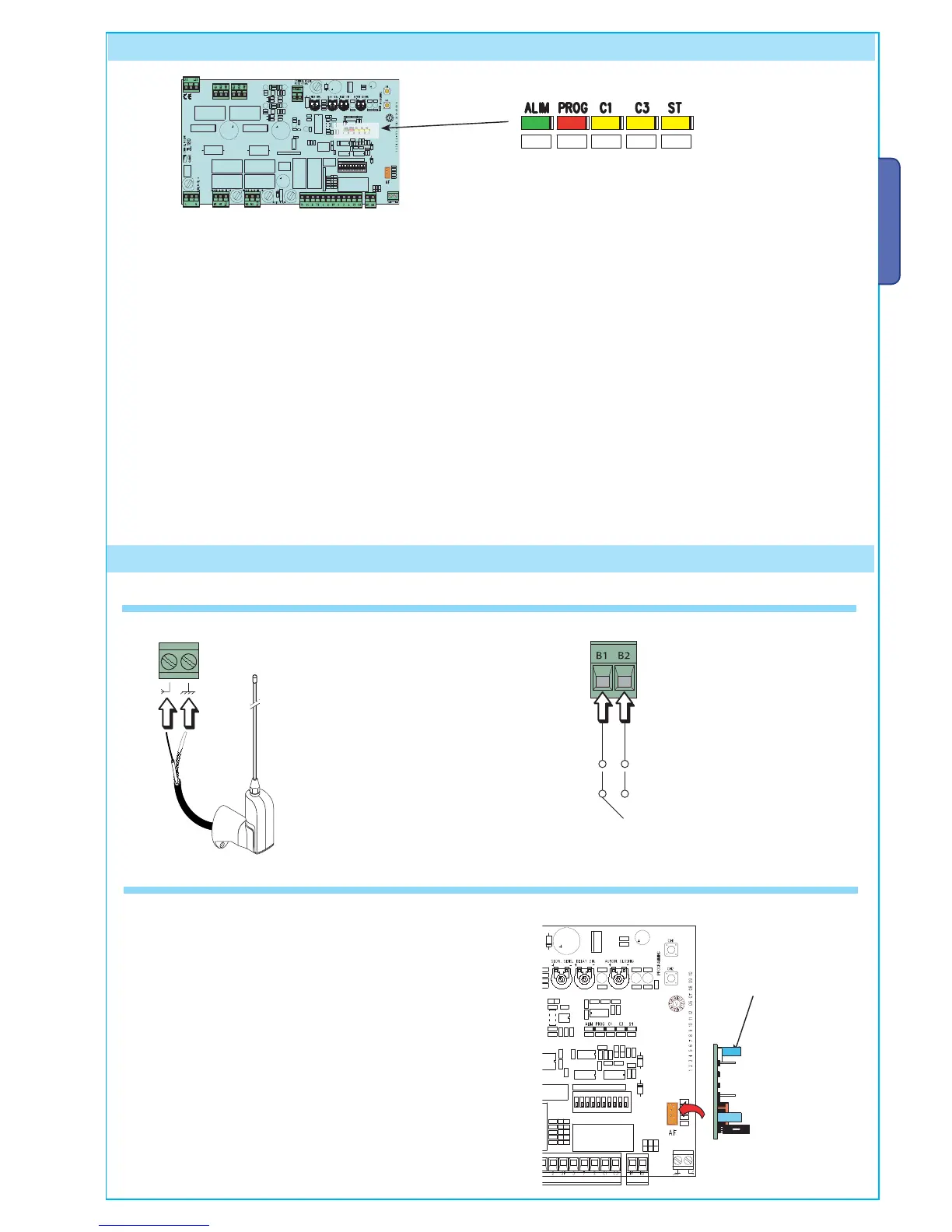

LIST OF CONTROL LED SIGNALS OF THE COMMAND AND SAFETY DEVICES:
- «ALIM» Green LED. Normally on, because it signals the cards proper power rate.
- «PROG» Red LED. Normally off.
During the remote control’s activation procedure, it turns on and blinks.
It blinks faster when combined with LEDs C1/C3/ST
- «C1» Yellow LED. Normally off.
When it is on and with the PROG LED blinking it warns of objects detected by the photocells (connected to REOPEN
DURING CLOSING) or non-operation of the same.
- «C3» Yellow LED. Normally off.
When it is on and with the PROG LED blinking it warns of objects detected by the photocells (connected to PARTIAL STOP)
or non-operation of the same.
- «ST» Yellow LED. Normally off.
When it is on and with the PROG LED blinking it means the TOTAL STOP button has been pushed, or non-operation of the
same.
10 Signal LED
11.2 - RADIOFREQUENCY CARD
Connect the antenna’s RG58 cable to
the apposite terminals.
Possible output of the radio receiver’s
second channel (N.O. socket).
Socket rating: 5 A-24 V DC.
(Also see Chapt. 6.5)
11 Activating the remote control
11.1 - ANTENNA
AF card
Lock the radiofrequency card into the electronic card AFTER CUTTING
OFF
THE POWER SUPPLY (or after disconnecting the batteries).
N.B.: the electronic card only recognises the radiofrequency card
when the power is on.
