12 04/20109 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

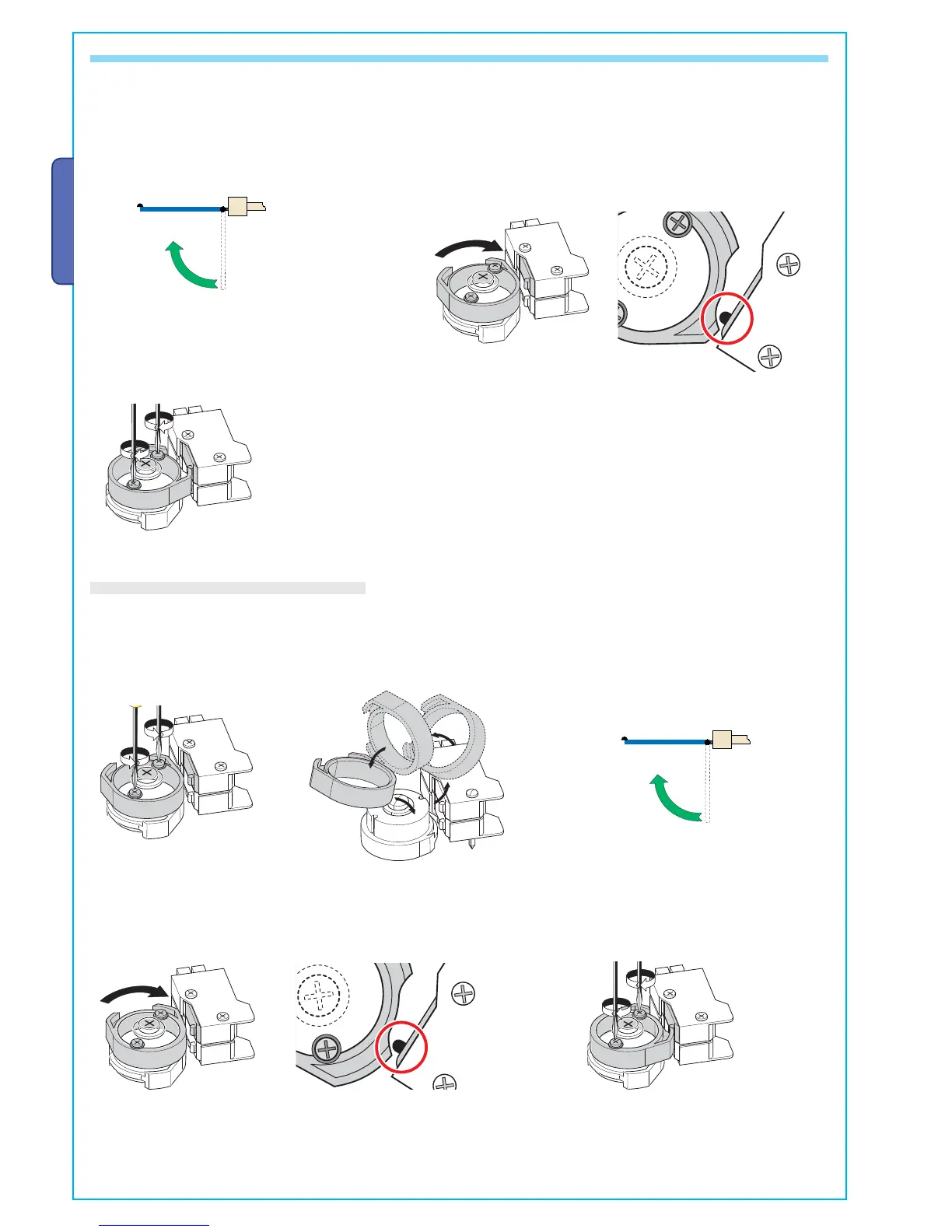

CLOSING ENDSTOP – RIGHTHAND GEARMOTOR – INSIDE VIEW
- turn the upper cam clockwise, until the micro switch is released.
- Secure the cam by tightening the lateral screws.
- Release the gearmotor and fully close the
gate leaf.
N.B. Always fi rst adjust the opening endstop and then the closing endstop
Warning: the upper cam of the operator’s endstop assembly is calibrated for gate widths of between 1.2 m to 2.2 m.
- turn the upper cam clockwise, until the micro-switch is released.
RIGHTHAND GEARMOTOR – INSIDE VIEW
If the gate leaf measures less than 1.2 m, you must turn the upper cam upside down and then set the microswitch.
- Remove the screws from the upper cam and turn it upsidedown. - Release the gearmotor and fully close the
gate leaf.
- Secure the cam by tightening the lateral screws.
