CAME ZL180 SERIES - FAST Gearmotors Opening Endstop (Right)

Pag.
17
17 -
Manual code
:
319U17
319U17
ver.
1.2
1.2
04/2010
9 © CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

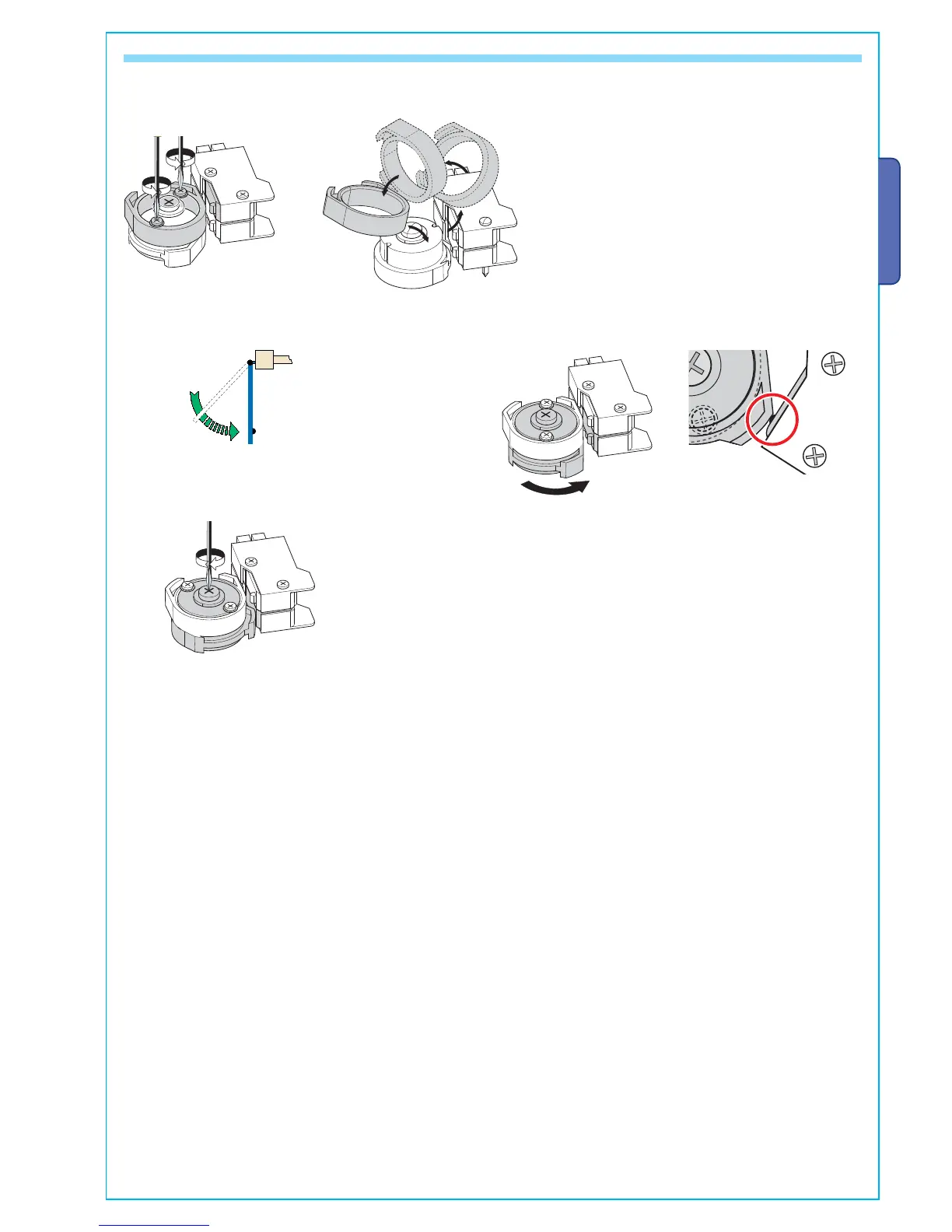

- OPENING ENDSTOP – RIGHTHAND GEARMOTOR – INSIDE VIEW
- Remove the screws from the upper cam and turn it upsidedown.
- Release the motor and position the gate leaf 5
cm ajar from the opening endstop
Turn the lower cam counter-clockwise, until the microswitch is engaged.
- Secure the cam by tightening the central screw.
