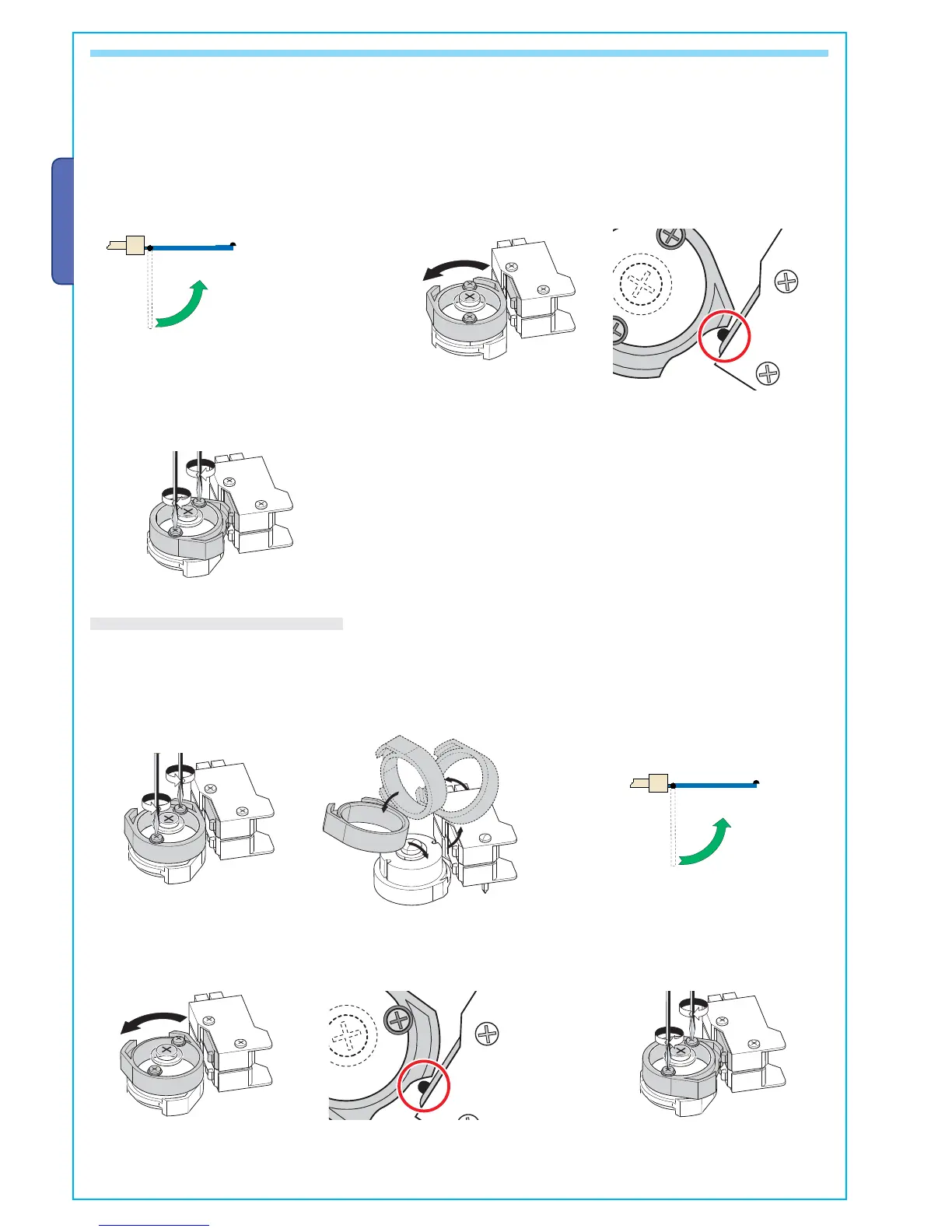

CLOSING ENDSTOP – LEFTHAND GEARMOTOR (INSIDE VIEW)
- Release the gearmotor and fully close
the gate leaf.
- turn the lower cam counter-clockwise, until the micro switch is
released.
- Secure the cam by tightening the lateral
screws.
N.B. The closing endstop can be adjusted after setting the opening microswitch.
Warning: the upper cam of the operator’s endstop assembly is calibrated for gate widths of between 1.2 m to 2.2 m.
LEFTHAND GEARMOTOR – INSIDE VIEW
- Secure the cam by tightening the lateral screws.
Release the gearmotor and fully close the gate leaf.
- turn the lower cam counter-clockwise, until the micro switch is released.
If the gate leaf measures less than 1.2 m, you must turn the upper cam upside down and then set the microswitch.
- Remove the screws from the upper cam and turn it upsidedown.
To Next Page
