1.2
04/2010
9 © CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

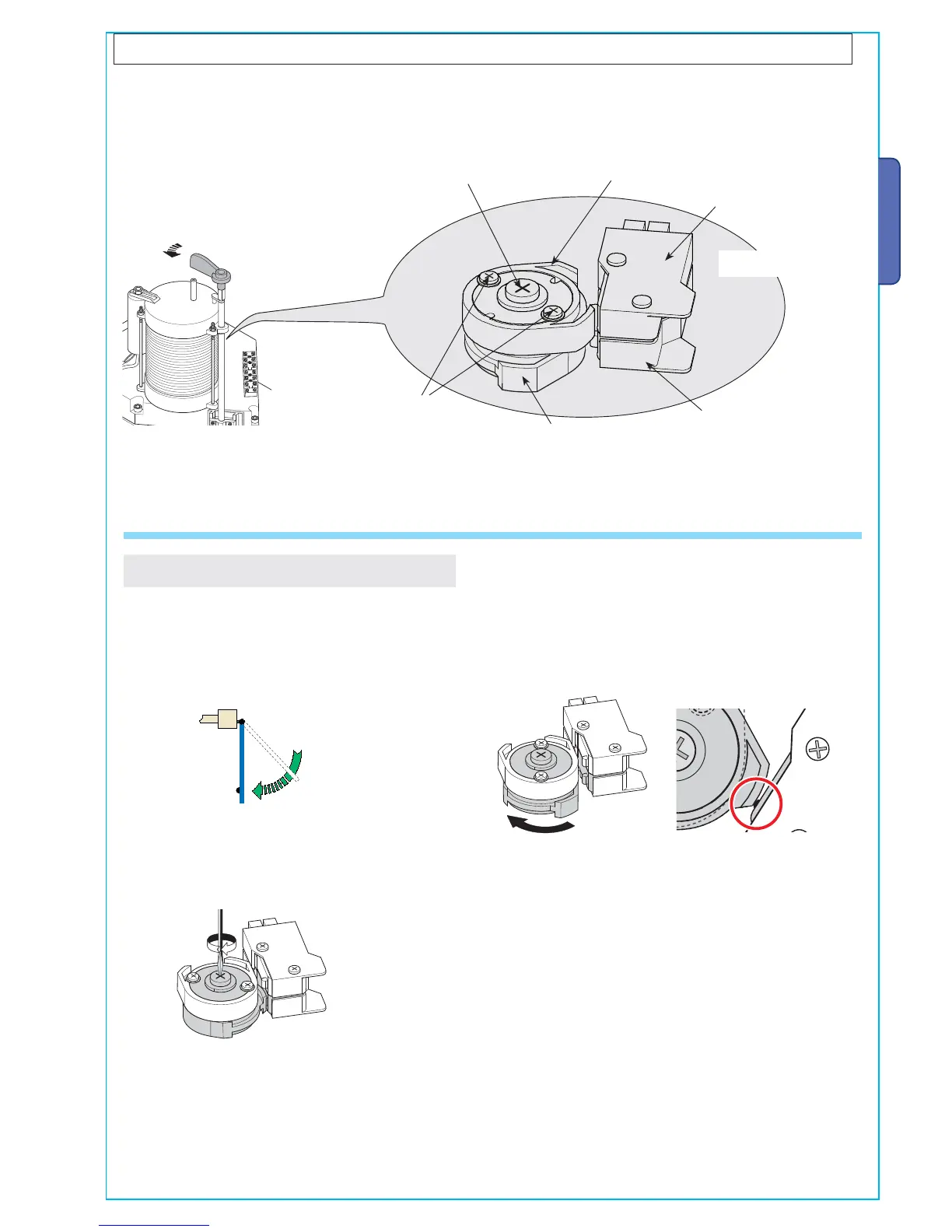

Adjustments to carry out when
gearmotors are released: insert
the release handle and turn it
counter-clockwise.
Opening microswitch
(below)
Closing microswitch
(above)
Upper cam
Lower cam
Lower cam fi xing and
locking/release screw
Upper cam fi xing
and locking/release
screws
ENDSTOP ASSEMBLY
FAST gearmotors
WARNING! Make sure you have inverted the M-N connection for THE RIGHT-HAND MOTOR, as shown on page 8.
- SWITCHES OPENING - MOTOR LEFT (INSIDE VIEW)
Depending on the function you have assigned to the opening endstop (see paragraph 6.4, page 7) the adjustment settings will be the
following:
With the motor released, place the gate leaf at a distance
of 5 cm from the opening endstop.
Rotate the lower cam clockwise until the microswitch is activated.
Secure the cam using the central screw.
