12 04/20109 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

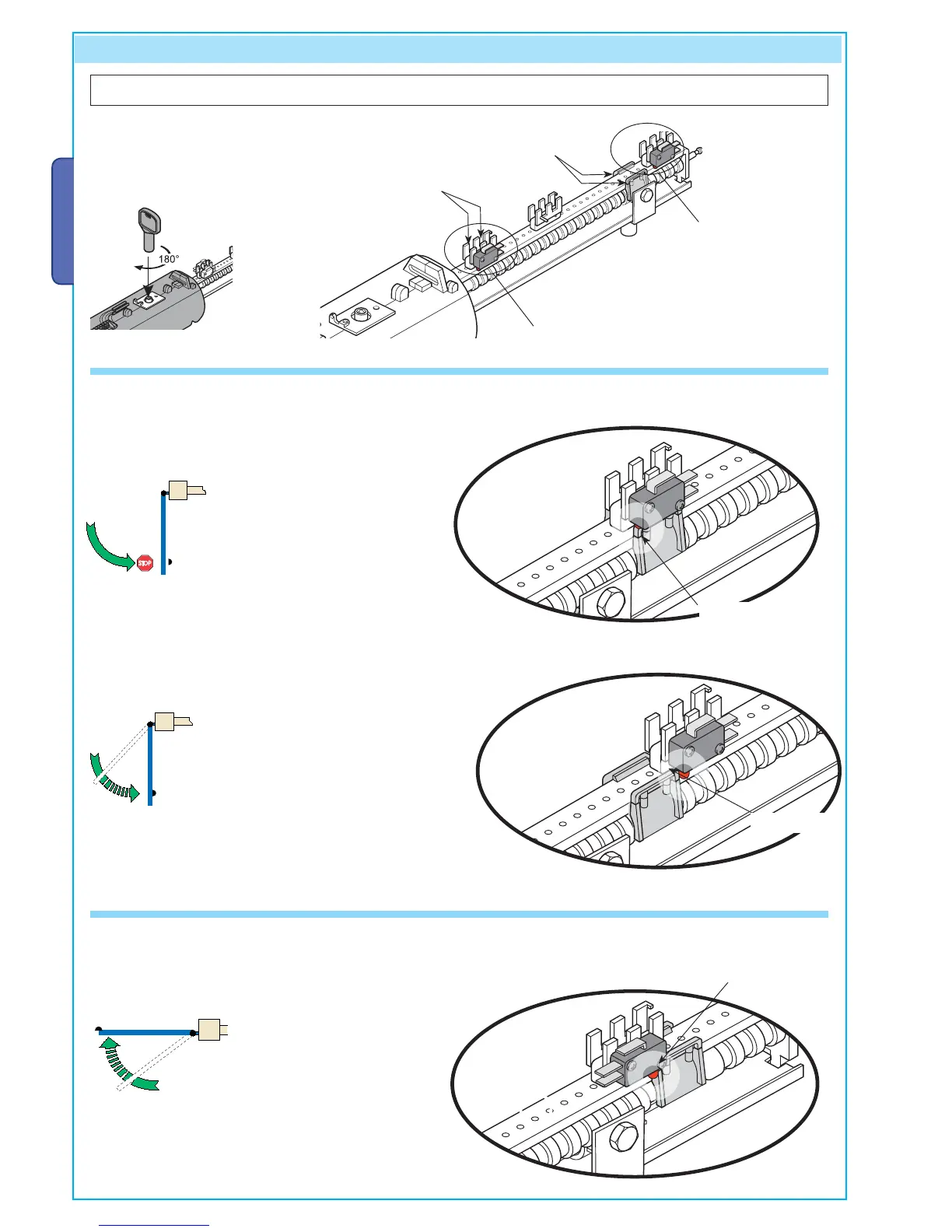

9 Adjusting the endstops
- OPENING ENDSTOP - ATI gearmotors
ATI gea rmotors
Adjustments to carry out when
gearmotors are in release
mode: insert the release key
and turn it clockwise.
If it intervenes resulting in a Stop,
- manually push the door to the fully
opened position;
- release or detach the endstop
and slide it or reposition it
until the switch is activated
as shown in the drawing;
- lock the assembly in this
position.
Depending on the function you have assigned to the opening endstop (see paragraph 6.4, page 7) the adjustment settings will be
the following:
Opening Stop
(default function)
- CLOSING ENDSTOP - ATI gearmotors
However, if it intervenes activating the Decelaration
mode,
- manually push the door to the fully
opened position;
- release or detach the endstop
and slide it or reposition it so
that the switch is adjacent
to the slide as shown in the
drawing;
- lock the assembly in this
position.
Opening
deceleration
(option)
To adjust the microswitch,
- manually push the gate leaf to the fully
closed position;
- release or detach the endstop
and slide it or reposition it so
that the switch is adjacent
to the slide as shown in the
drawing;
- lock the assembly in this
position.
The closing endstop only activates the deceleration.
Switch
Switch
Switch
Closing
deceleration
Microswitch
activating slide
Closing microswitch
Screws for fi xing and
locking/releasing the endstops
Opening microswitch
