CAME ZL180 SERIES User Manual

CH1 = A5024N
b) d)c) a)
b) d)c) a)
b) d)c) a)
Pag.
9
9 -
Manual code
:
319U17
319U17
ver.
1.2
1.2
04/2010
9 © CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

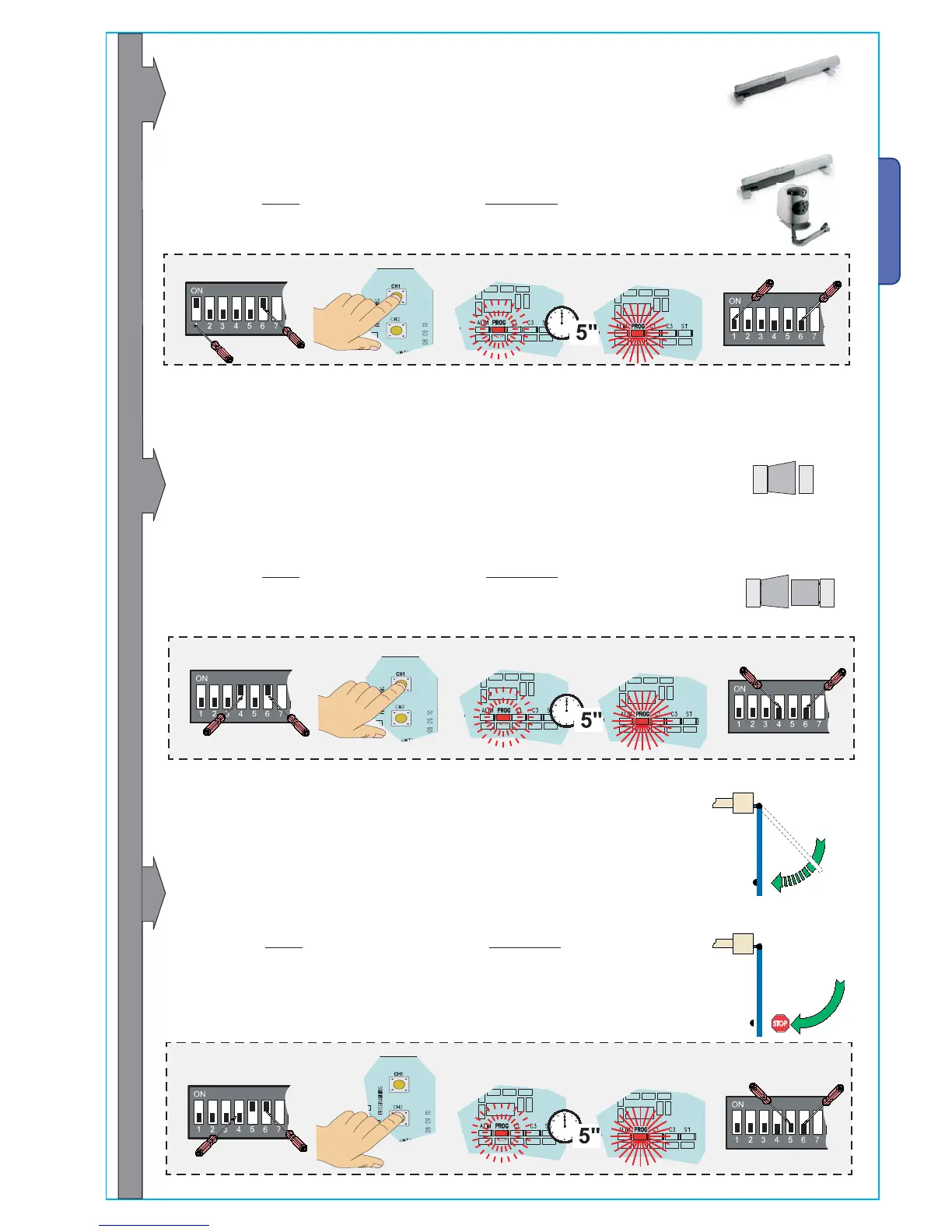

The ZL180 is calibrated to the F7024N or A3024N commands for gate leaves of up to 3 meters.
To command A5024N models (with gate leaves of over 3 m ) and reduce peripheral speed, do the
following:
a) - Set dip switches 1 and 6 to ON (and dip switches 2, 3, 4, 5 to OFF);
b) - press CH1: the red PROG led will start to blink;
c) - when the led stays on (after about 5 seconds) the procedure is complete;
d) - set to the dip switches back to OFF (or to the previous position, which depends on the
functions selection, see paragraph 7, page 12).
N.B.: to return to default, follow the same procedure while pressing CH2.
default
CH2 = A3024N
F7024N
GEARMOTORS CONNECTION OPTIONS
The control panel is set for 2 gearmotors (2 leaved gates).
With only one gearmotor (one-leaved gates; M2 gearmotor), do t
he following:
he following:
a
a
) - Set
) - Set
dip switches 4 and 6 to ON
dip switches 4 and 6 to ON (and dip switches 1, 2, 3, 5 to OFF)
;
;
b) - press CH1: the red PROG led will start to blink;
c) - when the led stays on (after about 5 seconds) the procedure is complete;
d) - set to the dip switches back to OFF (or to the previous position, which depends on the
functions selection, see paragraph 7, page 12).
N.B.: to return to default, follow the same procedure while pressing CH2.
CH1 = 1 gate leaf
default
CH2 = 2 gate leaves
CH2 = Opening slowdown
default CH1 = Opening stop
The microswitches on RA terminals, set the opening stop by default.
If you want instead the slowdown in opening is compulsory setback mechanics,
follow these steps:
a) - Set dip switches 5 and 6 to ON (and dip switches 1, 2, 3, 4 to OFF)
;
;
b) - press CH2: the red PROG led will start to blink;
c) - when the led stays on (after about 5 seconds) the procedure is complete;
d) - set to the dip switches back to OFF (or to the previous position, which
depends on the functions selection, see paragraph 7, page 12).
N.B.: to return to default, follow the same procedure while pressing CH1.
