L
120V=3,15A-F
230V=1,6A-F
L N
24 12 0L1T L2T
+ E - M N ENC
B1 B2
2 FA FC
S1 GND
10 11 TS E E3 ES 1 2 3 3P 4 5 7 CX CY CZ
Transponder o lettore
di tessere
p. 10 - Manual FA01082-EN - 02/2018 - © CAME S.p.A. - Translation of the original instructions

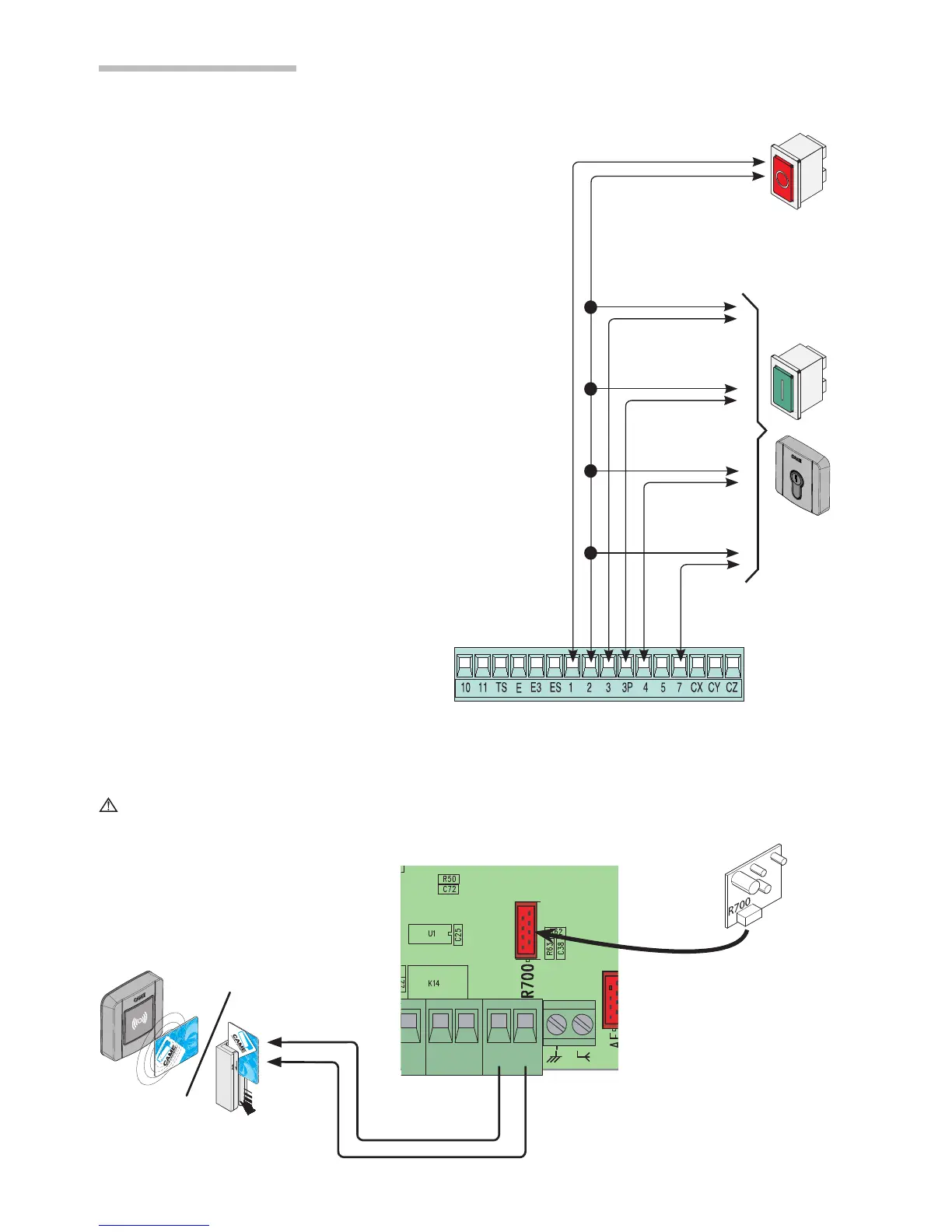

Key-switch selector and/or closing button (N.O. contact).
- For commanding the gate to close.
Key-switch selector and/or partial opening button (N.O. contact).
- - See [SET TIMES]  [Partial Op.].
Key-switch selector and/or control buttons (N.O. contact).
- For commanding the opening and closing of the gate.
- See [FUNCTIONS] menu  [Command 2-7].
Key-switch selector and/or opening button (N.O. contact).
- For commanding the gate to open.
Stop button (N.C. contact).
- For commanding the gate to stop while excluding the automatic-closing time
cycle. To resume movement, press a button on the control or the transmitter
button.
& If unused, disable the contact in the [FUNCTIONS] menu  [Total
Stop].
Command and control devices
Before fitting any snap-in cards (such as the AF or R700), YOU MUST CUT OFF THE POWER MAINS, and disconnect
the power mains.
& Fit the R700 decoder card
so the transponder sensor or the
card reader can be detected.
