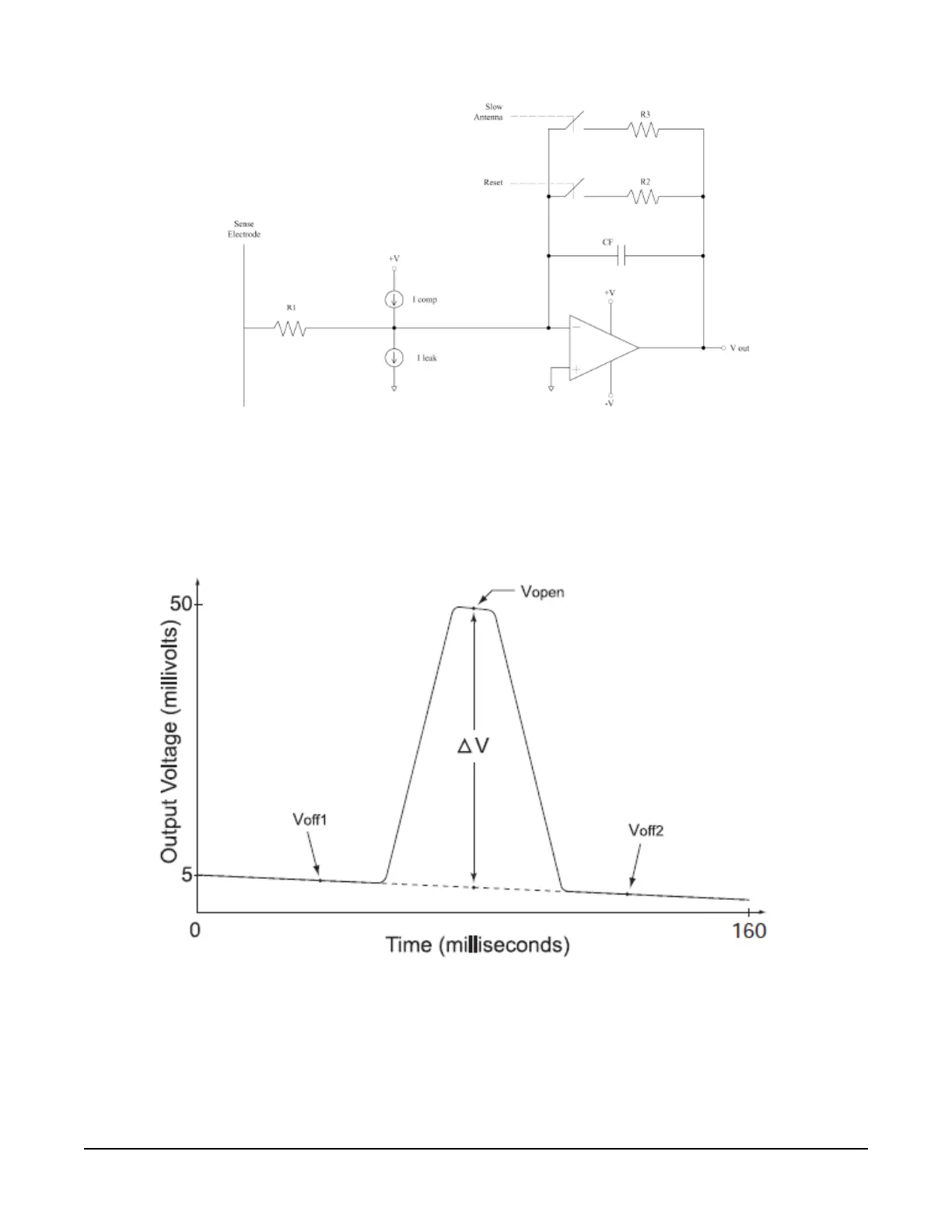

Figure 7-1. Charge amplifier circuitry of reciprocating electric field meter
The charge amplifier output during a measurement cycle of the reciprocating electric field meter
is shown below.
Figure 7-2. Charge amplifier output during an electric field measurement cycle
CS110 Electric Field Meter 13
