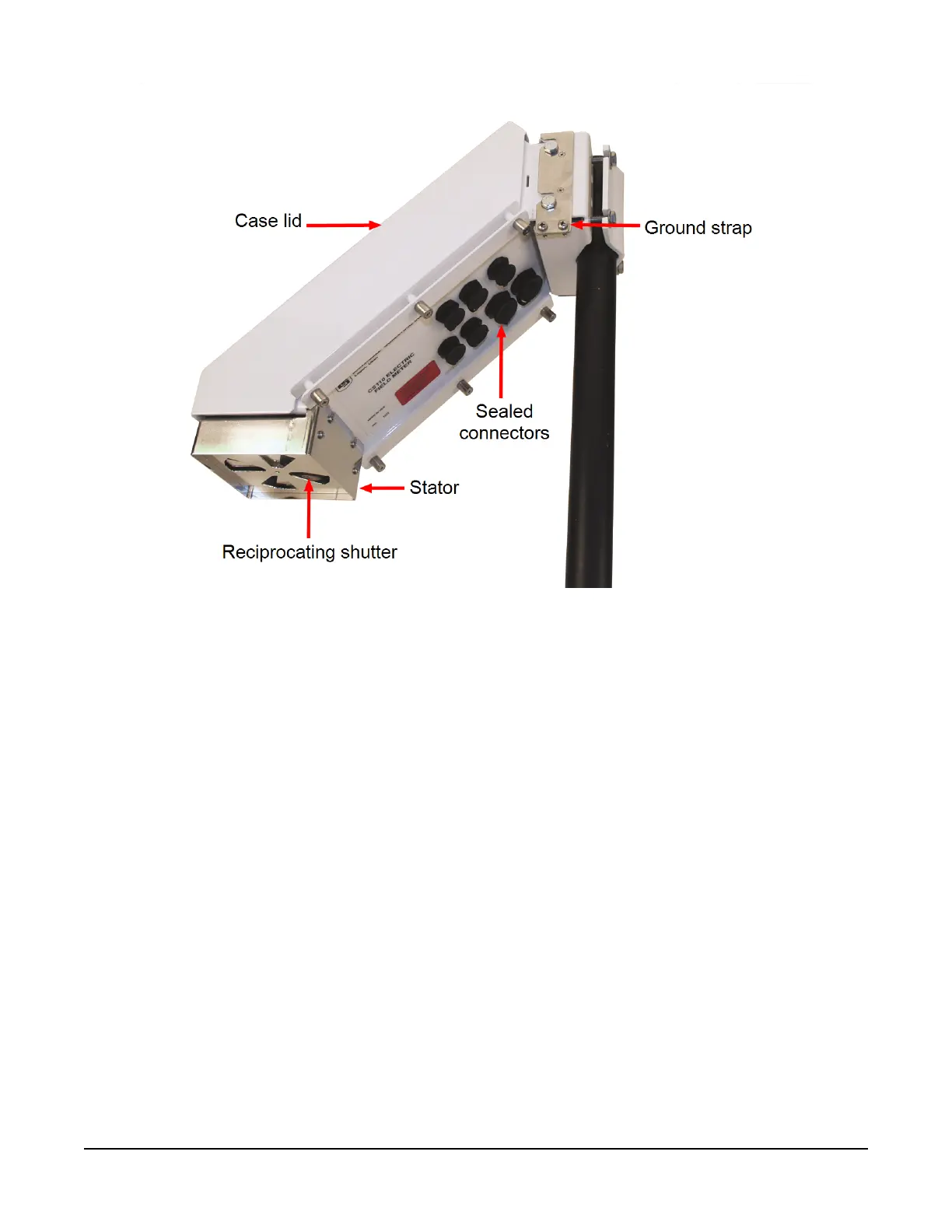

Figure 4-1. CS110 electric field meter
An embedded CR1000M data logger module is required for every CS110 purchased. The data
logger provides measurement and control functions, data processing and storage, and flexible
communications options. LoggerNet software (purchased separately) provides versatile
networking and data collection capabilities. Communication options compatible with the CR1000
include direct connect, Ethernet, phone modems (land-line and cellular), radios, short haul
modems, GOES satellite transmitters, and multidrop modems. For more details on the CR1000
data logger, see the CR1000 Measurement and Control System Operator’s Manual.
The CS110 has sealed connectors for attaching meteorological sensors and three digital control
ports for controlling external devices and/or triggering alarms.
CS110 Electric Field Meter 4
