8

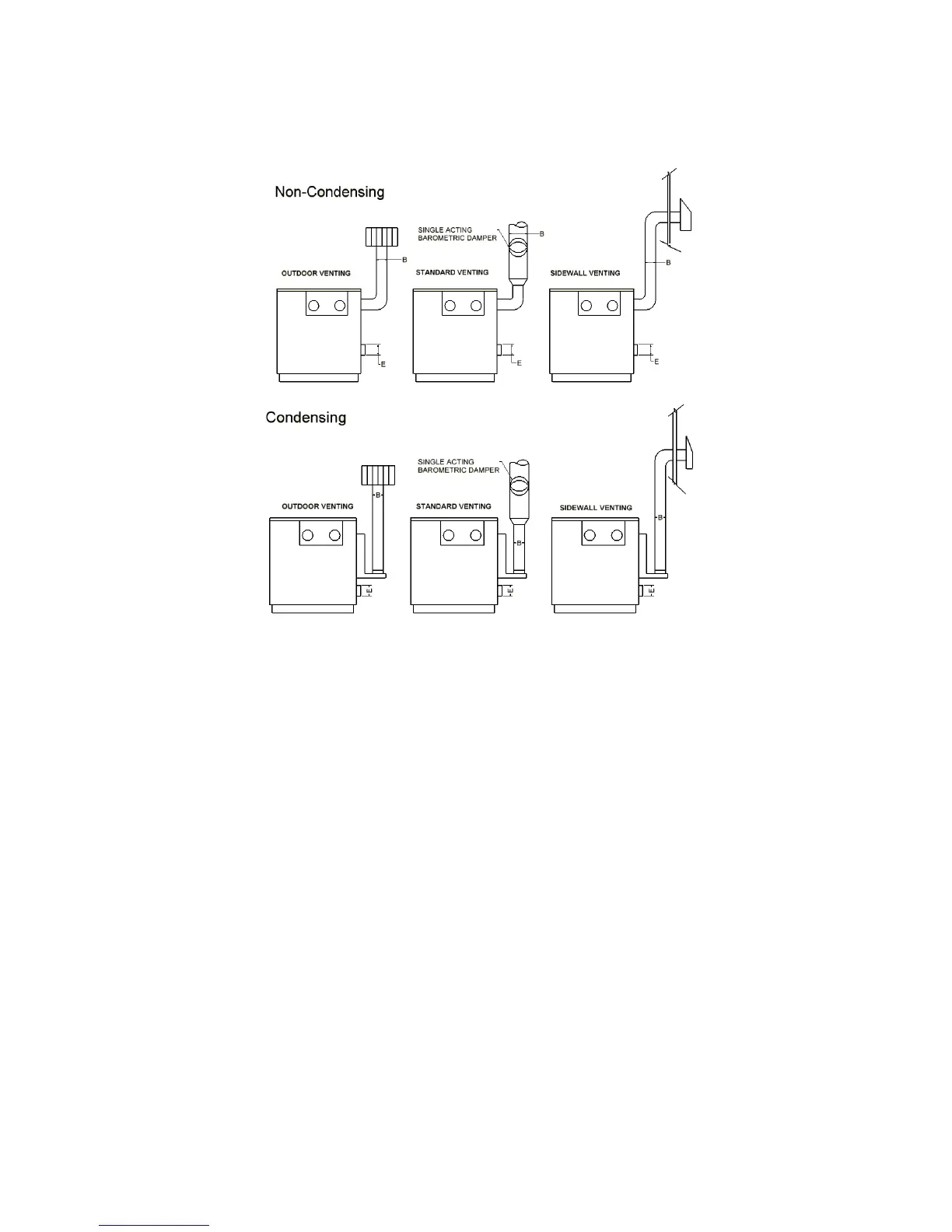

Figure 2: Venting Arrangement
7.1 OUTDOOR VENTING
When fitted with the factory supplied rain shield and UL approved vent cap, the MicoFlame is self-venting.
The following applies to outdoor installations:
1. Use only factory supplied rain shields.
2. Periodically check to ensure that air intake and vent cap are not obstructed.
3. Locate boiler at least 3 feet away from any overhang.
4. Locate boiler at least ten feet from building air intake.
5. Avoid installation in areas where runoff from adjacent building can spill onto boiler.
