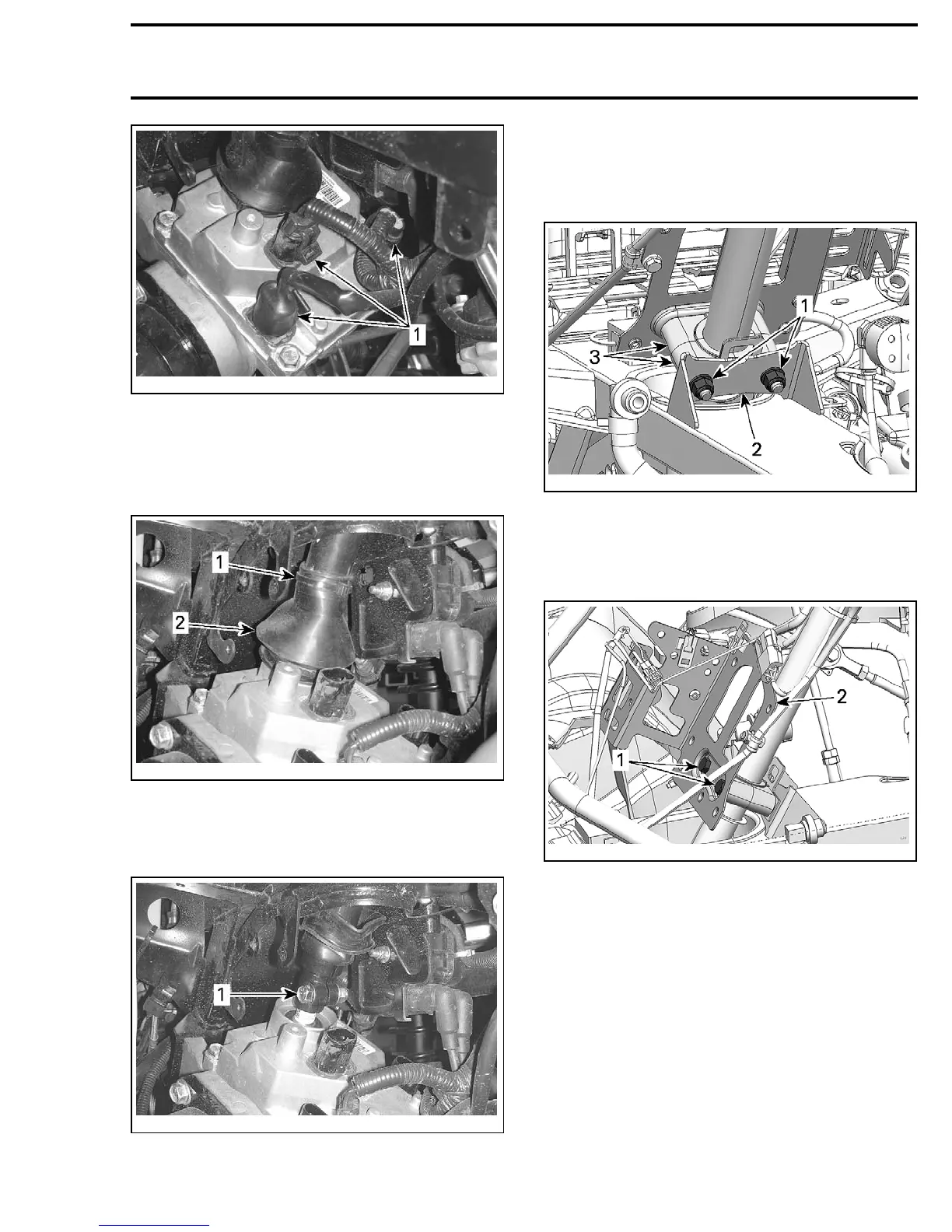

Section01 TECHNICAL MANUAL
Subsection 01 (DYNAMIC POWER STEERING (DPS))
vmr2010-003-013_a
1. DPS connectors (3x)
12. Cut the locking tie securing the bellows at the
bottom of steering column near the DPS unit,
and pull the bellows upwards sufficiently to
access the steering column pinch bolt.
vmr2010-003-016_a
1. Cut this locking tie
2. Steering column bellows
13. Remove the steering column pinch bolt and
retaining nut. Discard the retaining nut.
vmr2010-003-017_a
1. Steering col
umn pinch bolt
14. Remove and discard the elastic nuts from
the 2 hexagonal screws that secure steering
column half bushings to the support on the
frame.
vmr2010-003-018_a
1. Elastic nuts to remove and discard
2. Frame support
3. Steering column half bushings
15. Remove the 2 hexagonal screws from the
ECM support.
vmr2010-003-021_a
1. Hexagonal screws to remove
2. ECM support
16. Remove and save the shim(s) from between
the rear half bushing and the steering support
on the frame.
vmr2010-003 15
