Section 01 TECHNICAL MANUAL
Subsection 01 (DYNAMIC POWER STEERING (DPS))

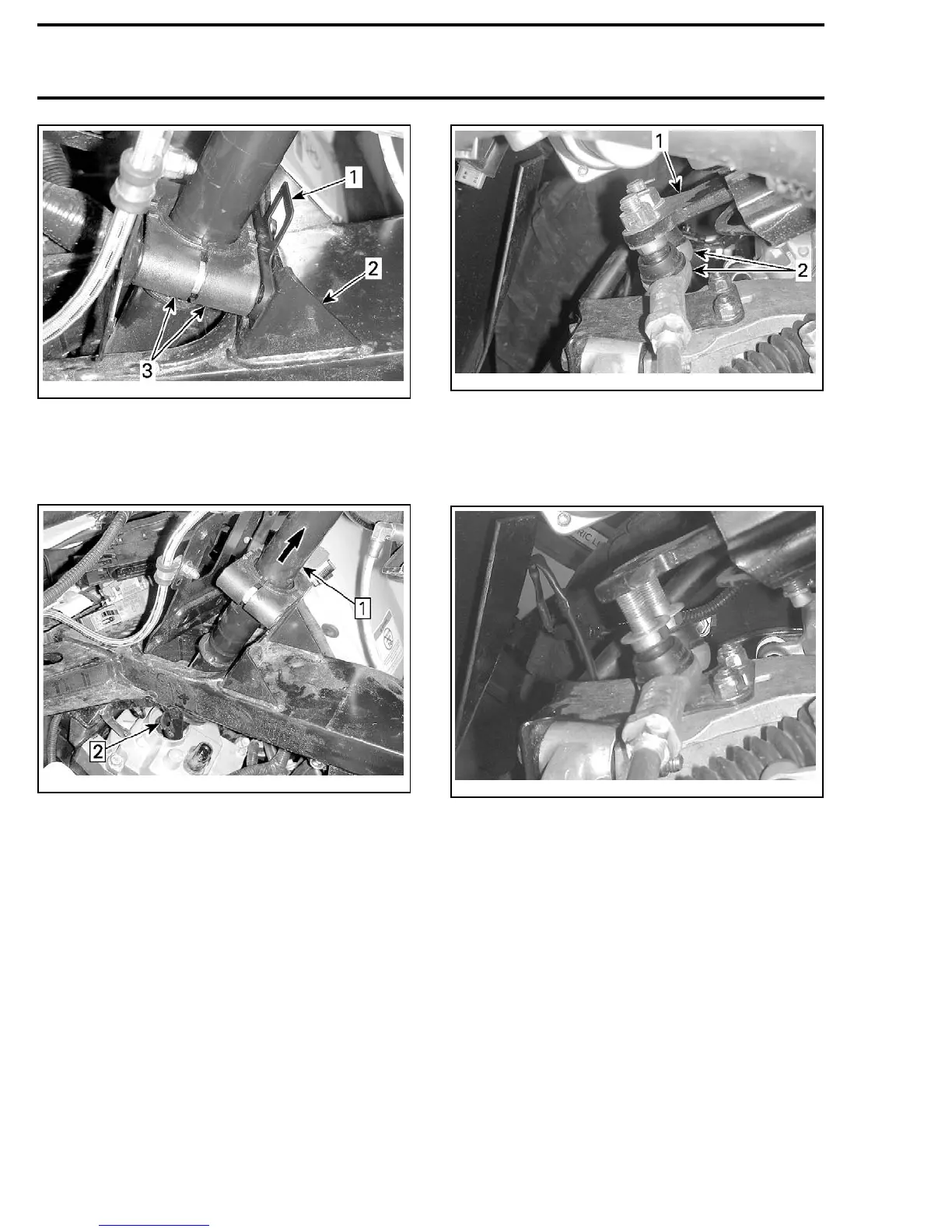

vmr2010-003-019_a
1. Shim
2. Steering column frame support
3. Half bushings
17. Pull up on the steering column to disengage it
from the DPS unit and move it to the side.
vmr2010-003-020_a
Step 1: Pull up on steering column
Step 2: Disengage column from DPS unit
18. Remove the hardware that secures both tie-
rod ends to the pitman arm (steering lever).
Discard cotter pins.
vmr2010-003-022_a
1. Pitman arm
2. Tie rod ends
NOTE: Leavethetierodendsonthepitmanarm
at this time. They will come off easily when the
DPS unit is lifted from its frame support.
vmr2010-003-023
TIE ROD ENDS (HARDWARE REMOVED)
19. Remove the 4 hexagonal flanged screws se-
curing DPS unit to frame.
NOTE: Discard the 4 conical spring washers on
the DPS retaining screws. Do not remove the 2
small hexagonal forming screws from the DPS
unit unless it is being replaced.
16 vmr2010-003
