PC400 / PC410 l User’s Manual
28
Chapter 2: Switches and Connectors

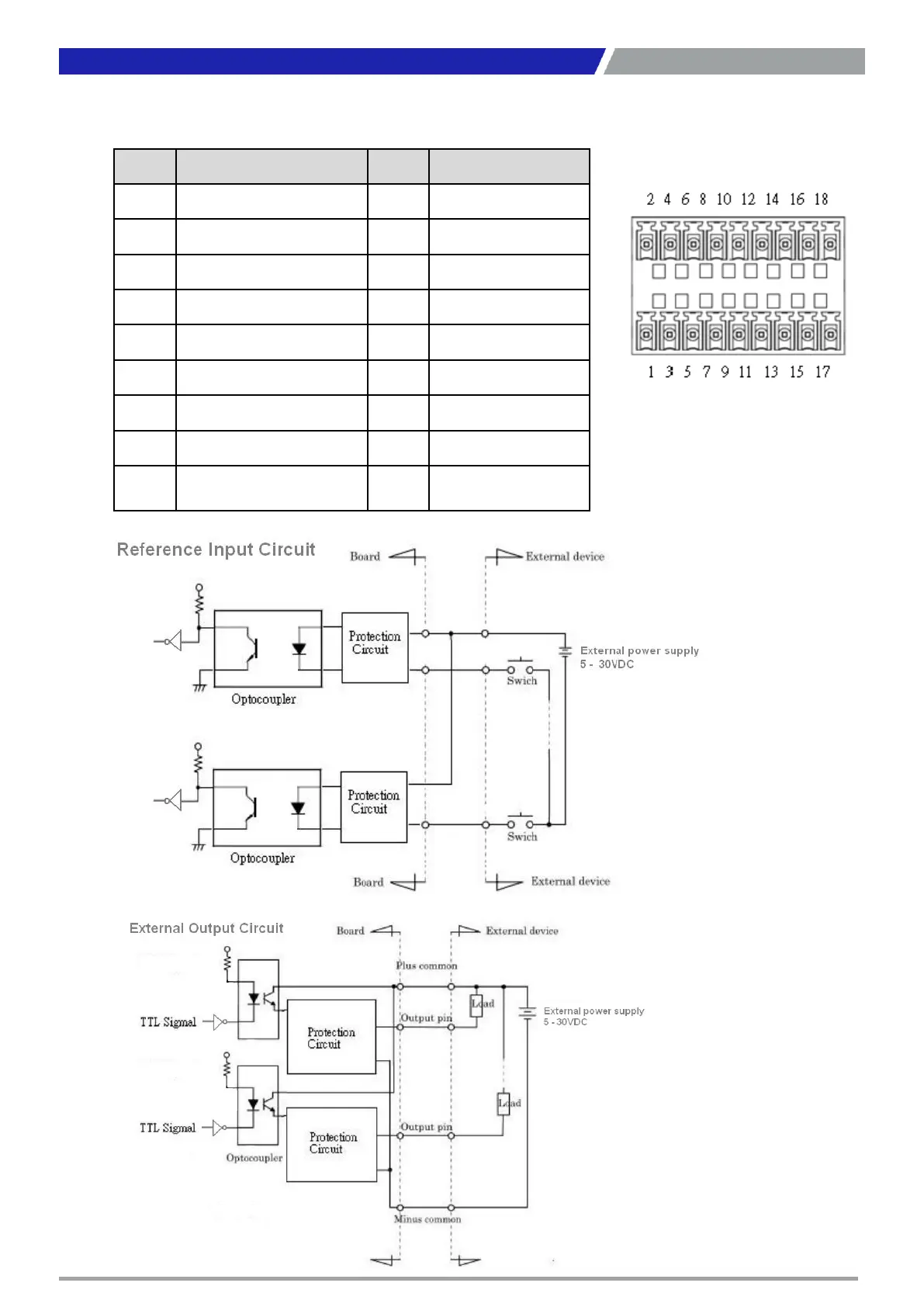

DIO1: Digital Input / Output Connector
Connector Type: Terminal Block 2X9 18-pin, 3.5mm pitch
Pin Definition Pin Definition
1 DIN1 2 DOUT1
3 DIN2 4 DOUT2
5 DIN3 6 DOUT3
7 DIN4 8 DOUT4
9 DIN5 10 DOUT5
11 DIN6 12 DOUT6
13 DIN7 14 DOUT7
15 DIN8 16 DOUT8
17
DC power input
(+5V~+30V)
18 GND
