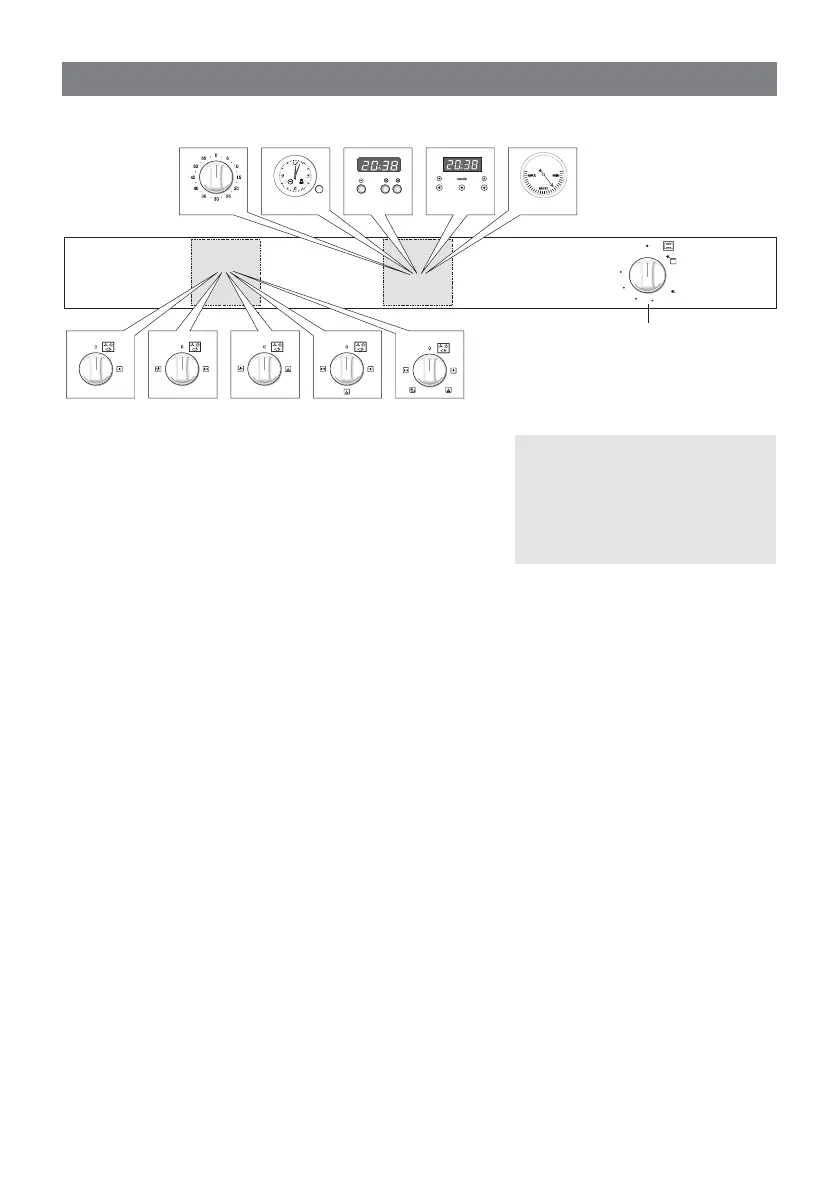

CONTROL PANELS
1
NOTES:
The knobs and symbols may
vary.
The symbols may be printed
on the knob itself.
130
155
180
205
230
Max
1
3a 3b 3c 3d 3e
2a 2b 2c 2d 2e
Fig. 1.1
CONTROLS DESCRIPTION
1. Gas oven/grill thermostat control knob
2. Depending on the models:
a. Oven light control knob
b. Oven light / rotisserie control knob
c. Oven light / fan motor control knob
d. Oven light / fan motor / rotisserie control knob
e. Oven light / fan motor / fan motor and rotisserie / rotisserie control knob
3. Depending on the models:
a. 60’ or 120’ alarm control knob
b. Electric clock with alarm
c. Electronic clock with alarm
d. Digital electronic clock with timer (with “Touch-control” keys)
e. Oven thermometer
Notes:
• The electric ignition is incorporated in the thermostat control knob.
• The appliance has a safety valve system tted, the ow of gas will be stopped if and
when the ame should accidentally go out.
CAUTION:
If the burner is accidentally extinguished, turn the gas o at the control knob and wait at least 1
minute before attempting to relight.
CAUTION:
Gas appliances produce heat and humidity in the environment in which they are installed.
Ensure that the cooking area is well ventilated by opening the natural ventilation grilles or by
installing an extractor hood connected to an outlet duct.
CAUTION:
If the appliance is used for a prolonged time it may be necessary to provide further ventilation by
opening a window or by increasing the suction power of the extractor hood (if tted).
