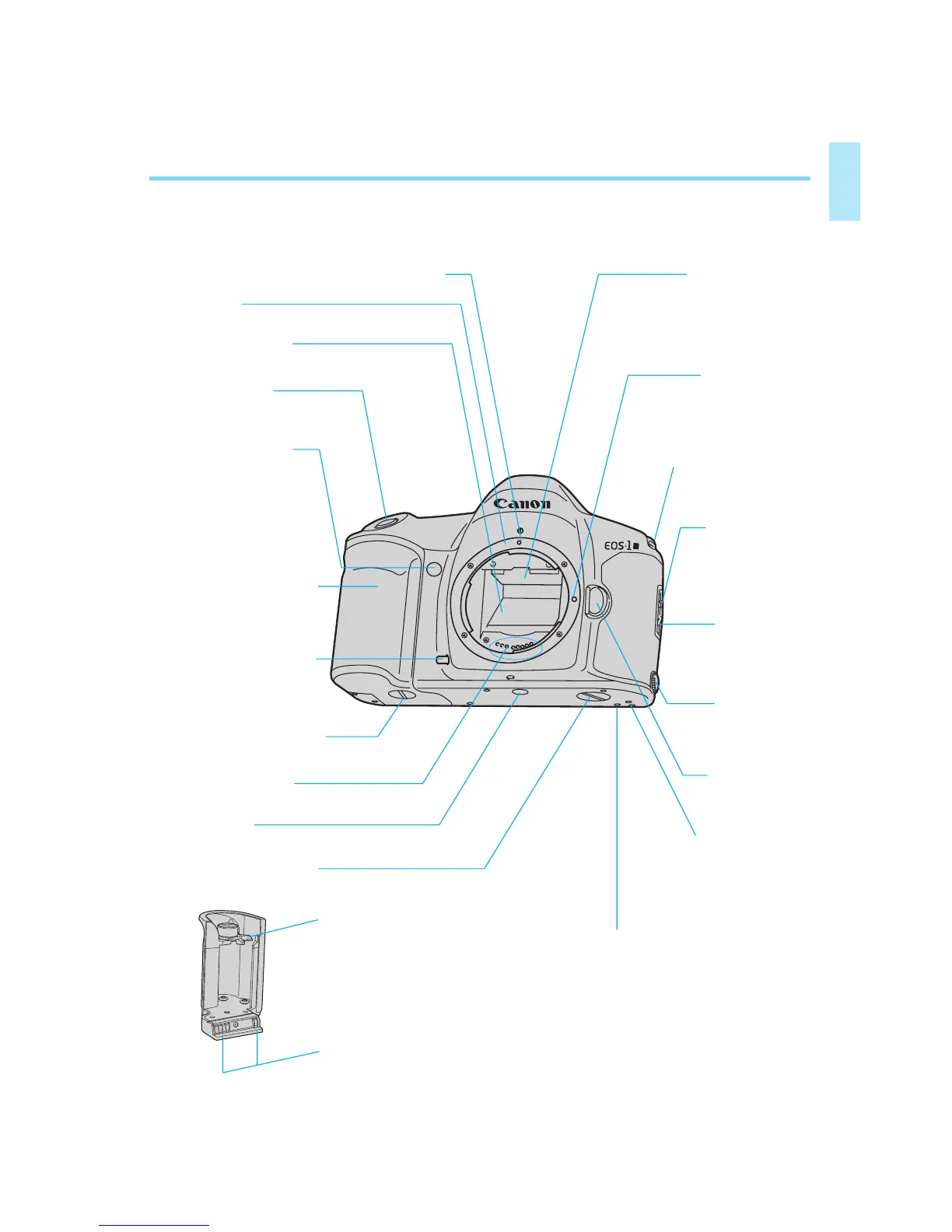

Nomenclature
• Page numbers of sections related to each component are indicated in
parentheses.
N
Lens Attachment Mark (red) (→ page 18)
Lens Mount
Mirror (→ page 72)
Shutter Button
(→ page 20)
Self-Timer Indicator
(→ page 70)
Grip / Battery Chamber
(→ page 14)
Depth-of-Field Preview
Button (→ page 74)
Grip Screw (→ page 14)
Electronic Contacts
Tripod Socket
Booster Coupler Cover
Battery Release Lever (→ page 14)
Electronic Contacts
Focusing Screen
Lens Lock Pin
Strap Fixture (→ page 13)
Back Cover
Lock Release
Button
(→ page 23)
Back Cover
Latch
(→ page 23)
PC Terminal
(cover)
(→ page 80)
Lens Release
Button
(→ page 18)
Booster Coupling Pin
Booster / Battery Pack
Attachment Hole
