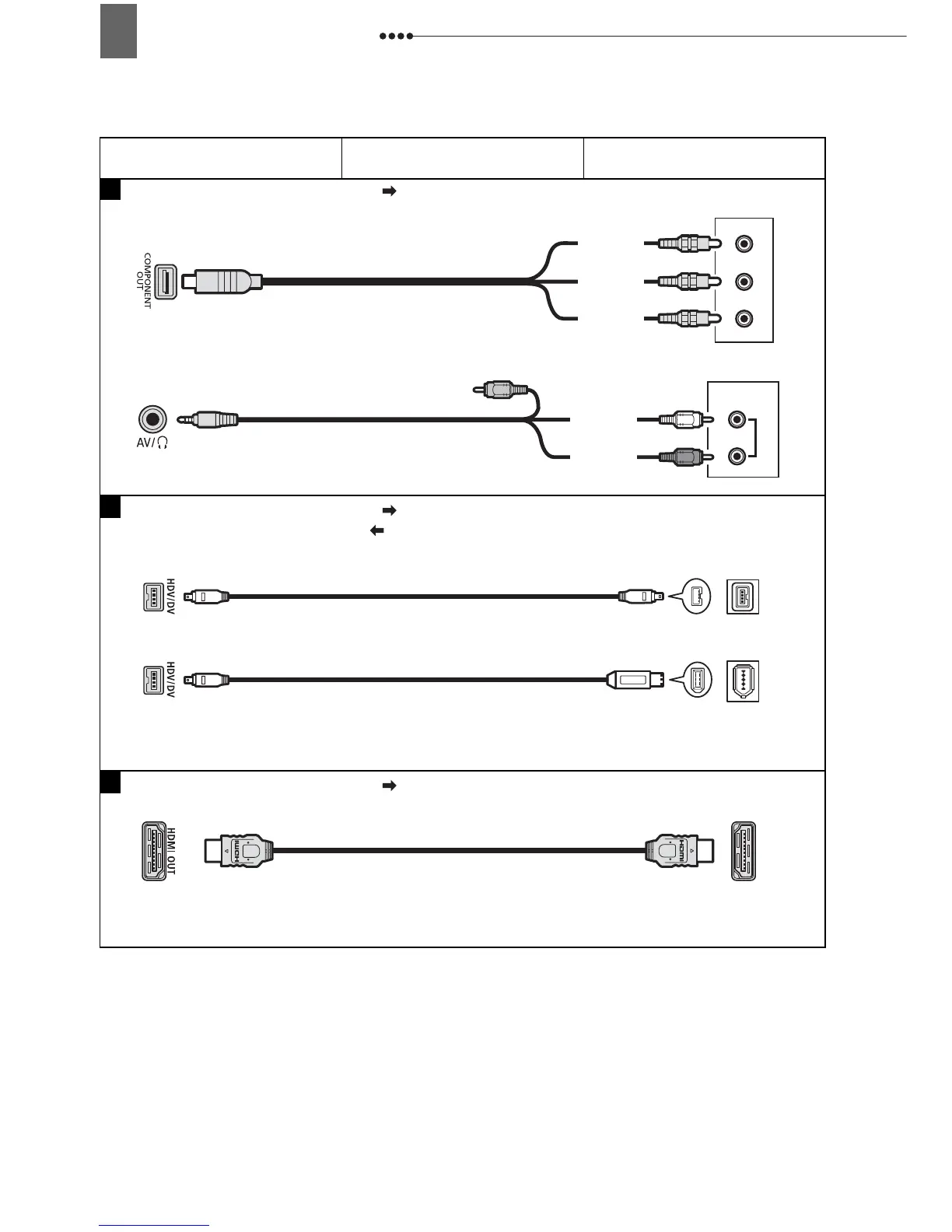

Connecting to a TV or VCR
66
High Definition TV Sets (HDTV)
Terminal on the Camcorder Connecting Cable
Terminal on the Connected
Device
AUDIO
R
L
Pr/Cr
Pb/Cb
Y
1
Output connection (Signal Flow ) to an HDTV with component video input terminals.
Red
Green
Blue
White
Red
CTC-100/S Component Cable
(Supplied)
STV-250N Stereo Video Cable
(Supplied)
2
Output connection (Signal Flow ) to an HDTV with a DV (IEEE1394) terminal.
Input connection (Signal Flow ) from a TV or other digital video source with a DV
(IEEE1394) output.
CV-150F/CV-250F
DV Cable (Optional)
4-pin
6-pin*
* Be careful to correctly insert the 6-pin plug into the DV terminal. Inserting it in the wrong direction
can result in damage to the camcorder.
3
Output connection (Signal Flow ) to an HDTV with an HDMI terminal.
HDMI cable
(Commercially available)
To Next Page
