Canon imagePRESS Server M10 - Installation Procedure; Installing the Open I;F PCB (Steps 9-10)

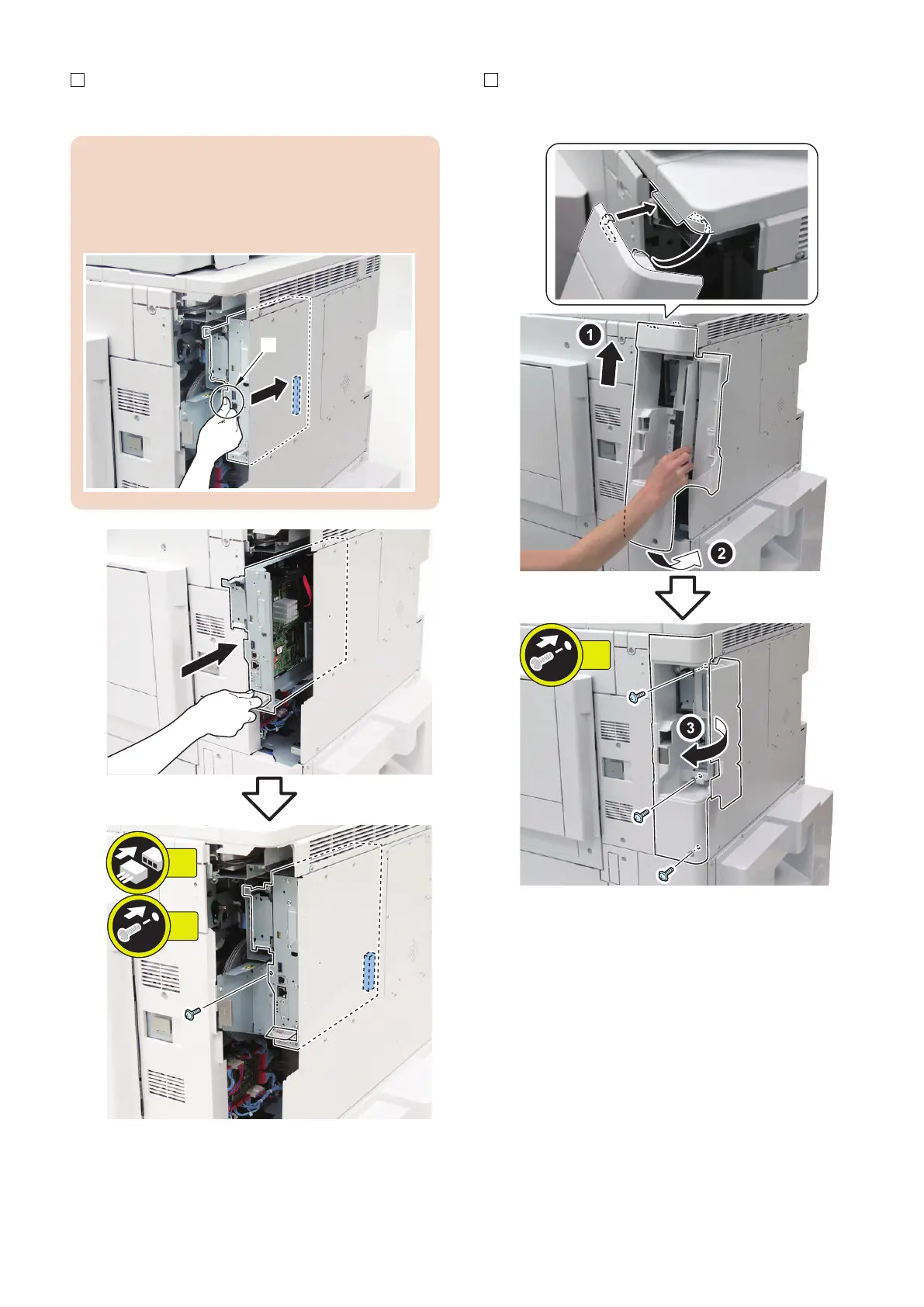

9.
CAUTION:
• Be sure to insert the Main Controller PCB until it
stops.
• Be sure to push [A] part hard to install it, otherwise
the connector may not be connected properly.
[A]
1x
1x
10.
3x
6. INSTALLATION PROCEDURE
86
