Printer parts
Printer parts
Front ..................................................................................................................................................................................... 60
Back ...................................................................................................................................................................................... 61
Top Cover (Inside) .......................................................................................................................................................... 61
Paper Feed Slots ............................................................................................................................................................. 62
Inside the Roll Feed Unit Cover ................................................................................................................................ 63
Carriage .............................................................................................................................................................................. 63
Ink Tank Cover (Inside) ................................................................................................................................................. 64
Vents .................................................................................................................................................................................... 65

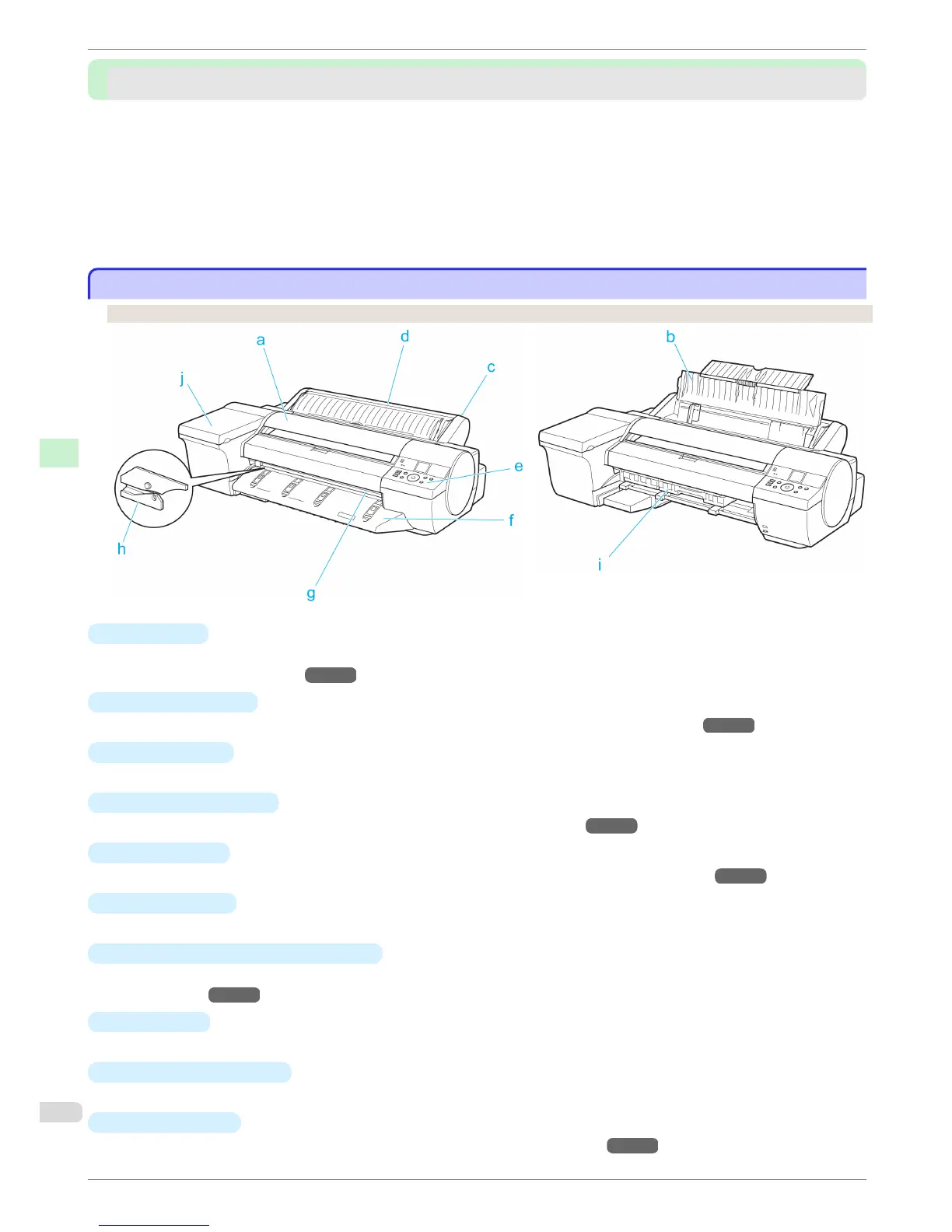

Front
Front
Standard With the Ejection Guide removed
a
Top Cover
Open this cover to install the Printhead and remove any jammed paper from inside the printer, as needed.
(See "Top Cover (Inside).") →P.61
b
Paper Tray Cover
Open this cover to load a sheet in the Top Paper Feed Slot. (See "Paper Feed Slots.") →P.62
c
Roll Feed Unit
Load rolls in this unit. You can also load sheets manually.
d
Roll Feed Unit Cover
Open this cover to load rolls. (See "Inside the Roll Feed Unit Cover.") →P.63
e
Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.") →P.50
f
Ejection Guide
Supports output paper.
g
Output Tray (Front Paper Feed Slot)
All printed documents are ejected from this slot. When loading heavyweight paper, insert it here. (See "Paper
Feed Slots.") →P.62
h
Cutter Unit
A round-bladed cutter for automatic roll cutting.
i
Maintenance Cartridge
Absorbs excess ink.
j
Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).") →P.64
Front
iPF6400
Basic Guide
Printer Parts Printer parts
60
