b
Carriage Shaft
The Carriage slides along this shaft.
c
Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
d
Platen
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
e
Borderless Printing Ink Grooves
For catching ink outside the edges of paper during borderless printing.
f
Cleaning Brush
When cleaning inside the printer under the Top Cover, use this brush to sweep away paper dust on the Platen.
Also use the brush to move the blue Switch on the Platen.
g
Linear Scale
The linear scale serves a key role in detecting the Carriage position. Be careful not to touch this part when
cleaning inside the Top Cover or clearing paper jams.
h
Switch
Set the switch to the side opposite ● if the edges of printed images are blurred. Set the switch to the ● side
before borderless printing. (See "Setting the Blue Switch on the Platen.") →P.106

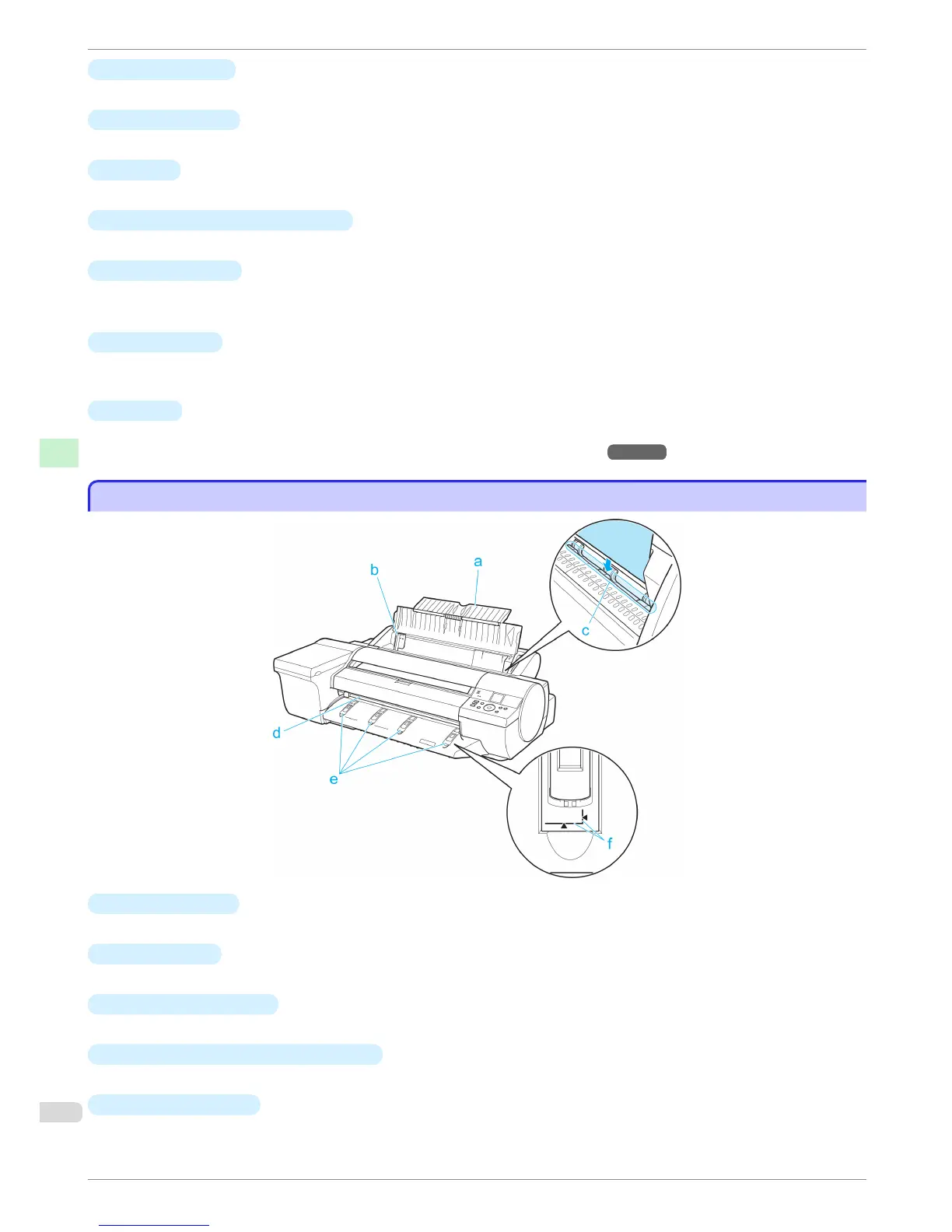

Paper Feed Slots
Paper Feed Slots
a
Tray Extension
When loading a sheet manually, open this tray after opening the Paper Tray Cover.
b
Width Guide
When loading a sheet, move the guide to match the paper size.
c
Top Paper Feed Slot
When loading a sheet, insert it here.
d
Front Paper Feed Slot (Output Tray)
When loading a heavyweight sheet, insert it here. All printed documents are ejected from this slot.
e
Front Tray Guides
Lift all of the guides before printing on heavyweight paper. When feeding heavyweight paper, rest the sheet on
these guides, align it to the right, and insert the leading edge up to the Paper Alignment Line.
Paper Feed Slots
iPF6400
Basic Guide
Printer Parts Printer parts
62
