f
Paper Alignment Line
Load heavyweight sheets parallel to this line.

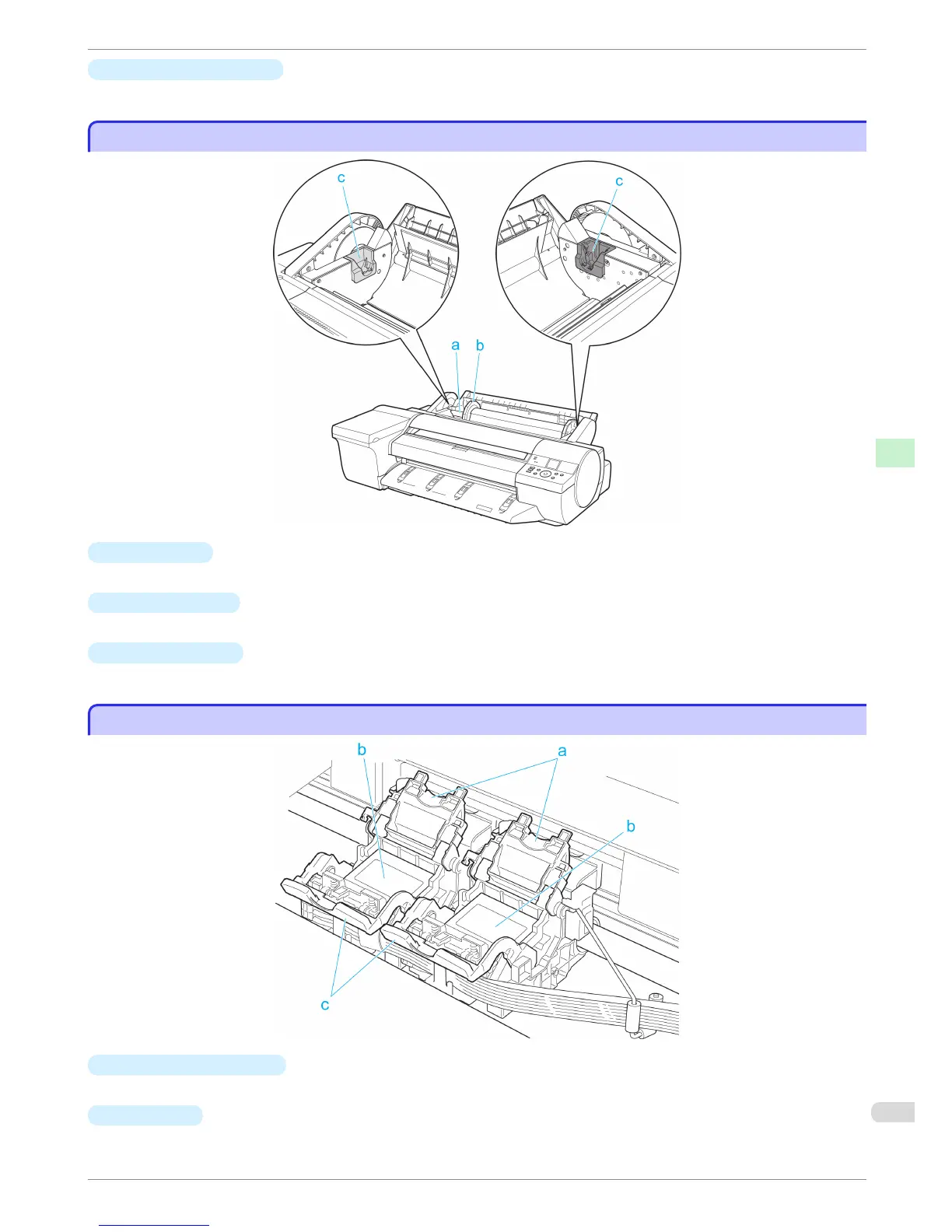

Inside the Roll Feed Unit Cover
Inside the Roll Feed Unit Cover
a
Roll Holder
Load the roll on this holder.
b
Holder Stopper
Secure rolls on the Roll Holder with this part.
c
Roll Holder Slot
Slide the Roll Holder into this slot.
Carriage
Carriage
a
Printhead Fixer Cover
Holds the Printhead in place. Do not open this part except during Printhead replacement.
b
Printhead
The printhead is equipped with ink nozzles. It serves a key role in printing.
iPF6400
Inside the Roll Feed Unit Cover
Basic Guide
Printer Parts Printer parts
