Chapter 4
4-7

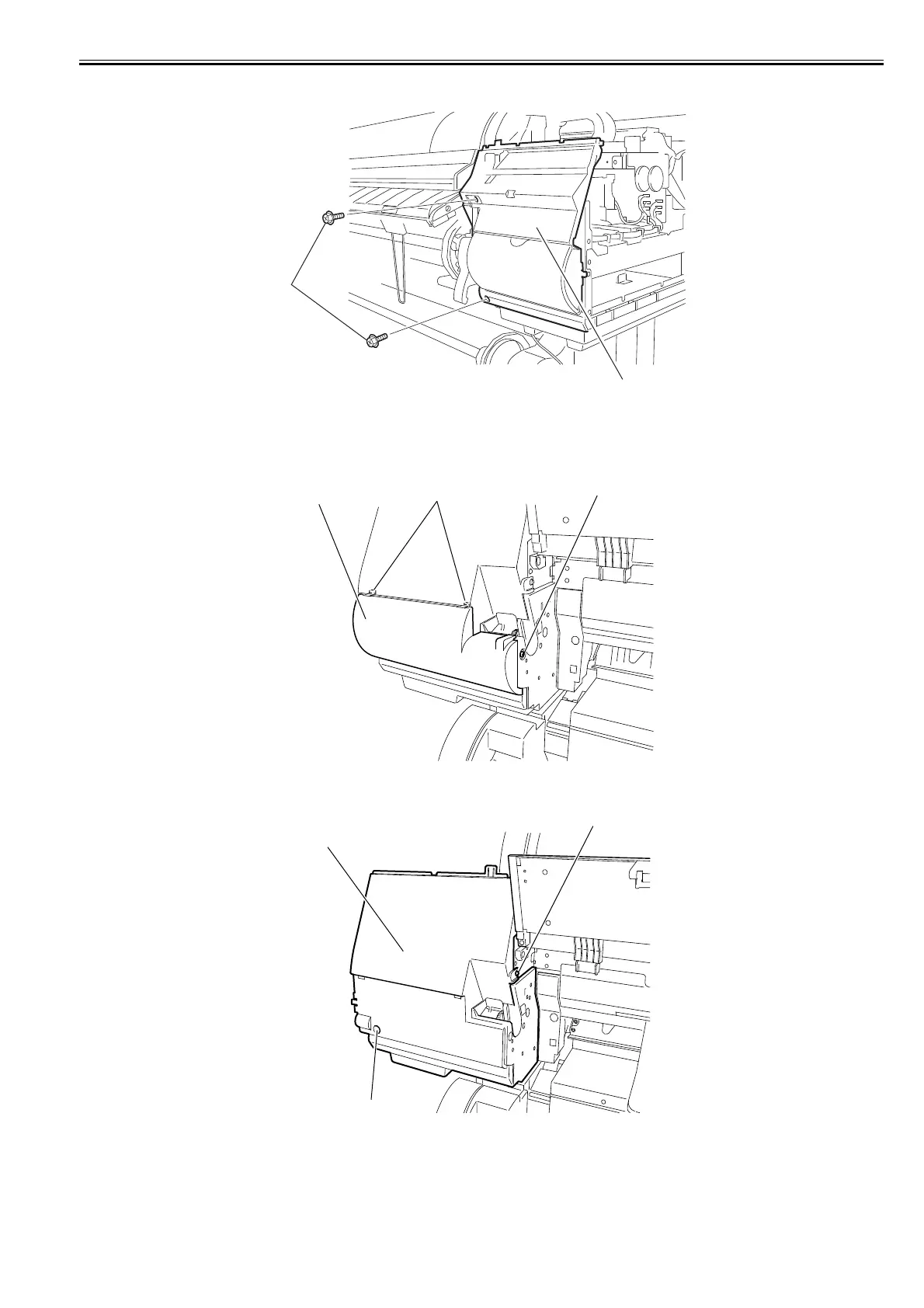

1) To remove right front cover [1], remove right circle cover (L), right circle cover (S), right side cover, upper right cover and the operation panel.
2) Remove two screws [2].
F-4-11
g) Left front cover
Removing the left front cover
1) Raise the ejection guides.
2) Remove screw [1] and hook [2] to remove left front lower cover [3].
F-4-12
3) Remove two screws [1] to remove left front cover [2].
F-4-13
[1]
[2]
[2]
[1]
[3]
[1]
[1]
[2]
