Chapter 4
4-8
h) Right rear cover/Left rear cover

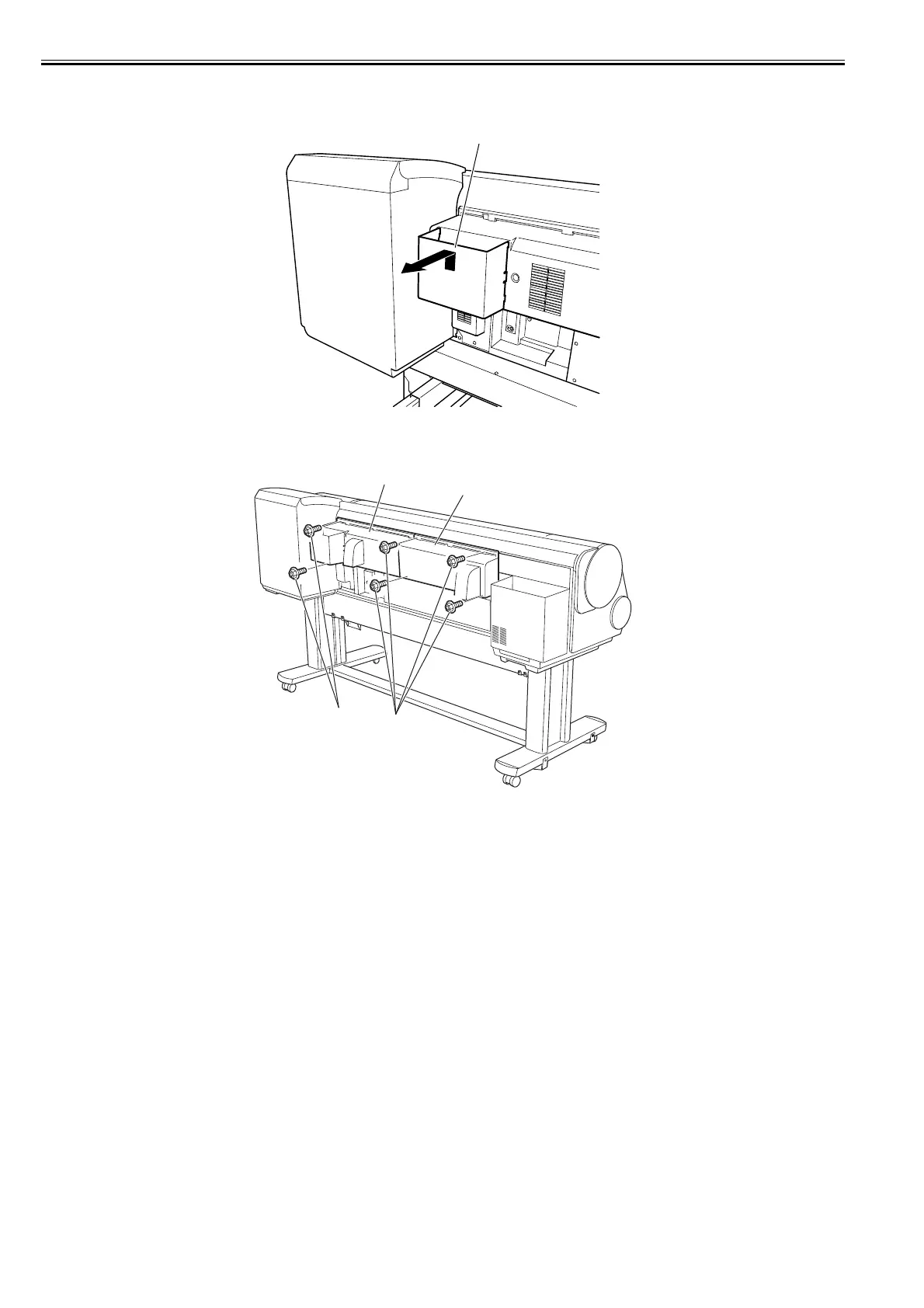

Removing the right rear cover/left rear cover
1) Remove the hook to remove accessory box [1].
F-4-14
2) To remove right rear cover [1], remove four screws [2].
3) To remove left rear cover [3], remove the right rear cover and two screws [4].
F-4-15
i) Right lower rear cover/Left lower rear cover, filter cover
Removing the right lower rear cover/left lower rear cover and filter cover
[1]
[3]
[2]
[4]
To Next Page
