Chapter 4
4-9

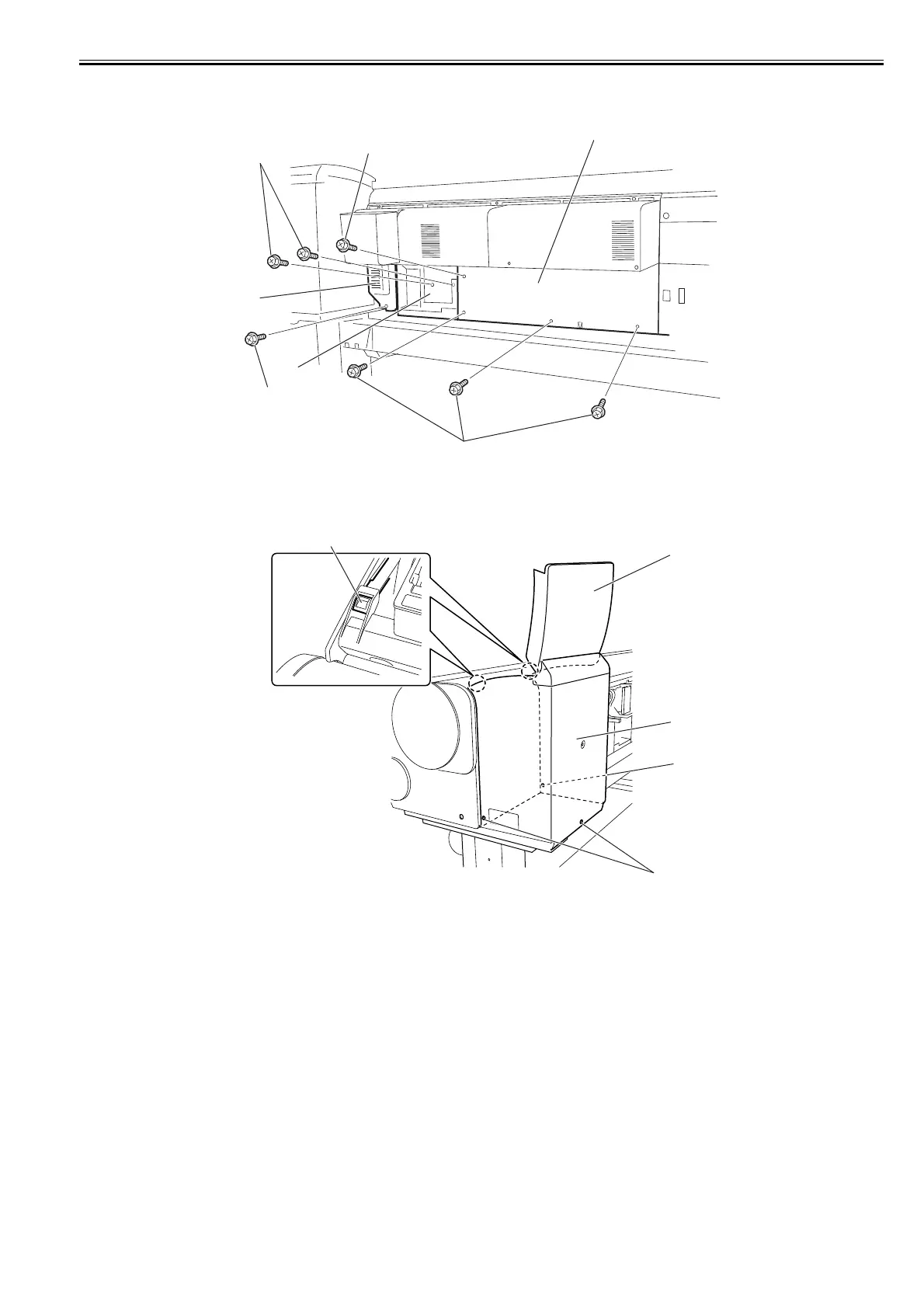

1) To remove right lower rear cover [1], remove four screws [2].
2) To remove left lower rear cover [3], remove two screws [4].
3) To remove filter cover [5], remove screw [6].
F-4-16
j) Left/Right ink tank cover units
Removing the left/right ink tank cover units
1) To remove ink tank cover unit [1], remove three screws [2], open tank cover [3] and remove two hooks [4].
F-4-17
k) Ink tank unit
Opening the ink tank unit
[2]
[4]
[6]
[2]
[1]
[3]
[5]
[4]
[2]
[2]
[1]
[3]
