Canon imagePROGRAF iPF815 - Page 163

Chapter 4
4-13
p) Cover stay unit (R)

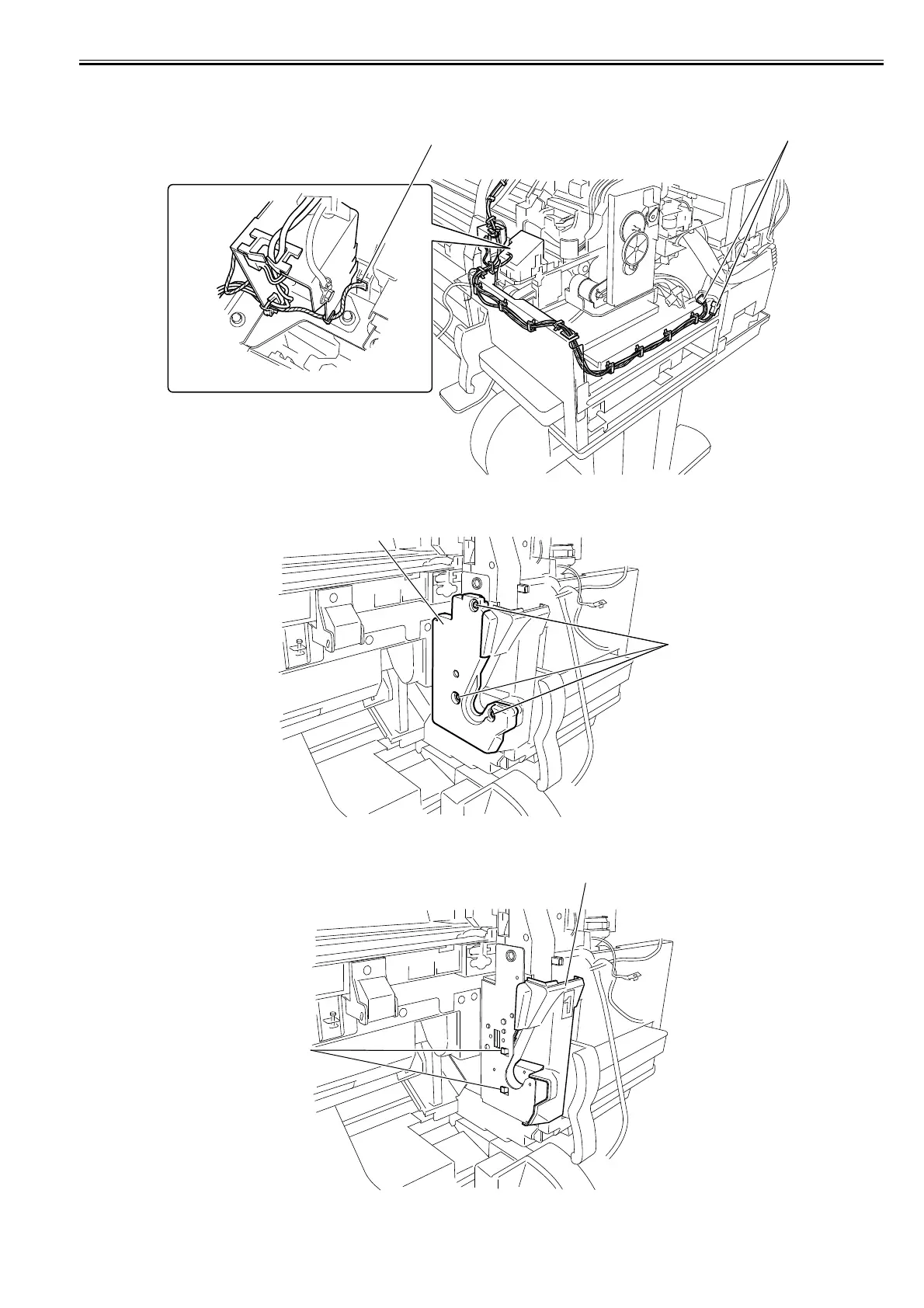

Removing the cover stay unit (R)
1) Disconnect three connectors [1] to release the harness from the harness guide.
F-4-24
2) Remove there screws [1] to remove spool holder (R) [2].
F-4-25
3) Remove two hooks [1] to remove spool holder from cover [2].
F-4-26
[1][1]
[1]
[2]
[1]
[2]
