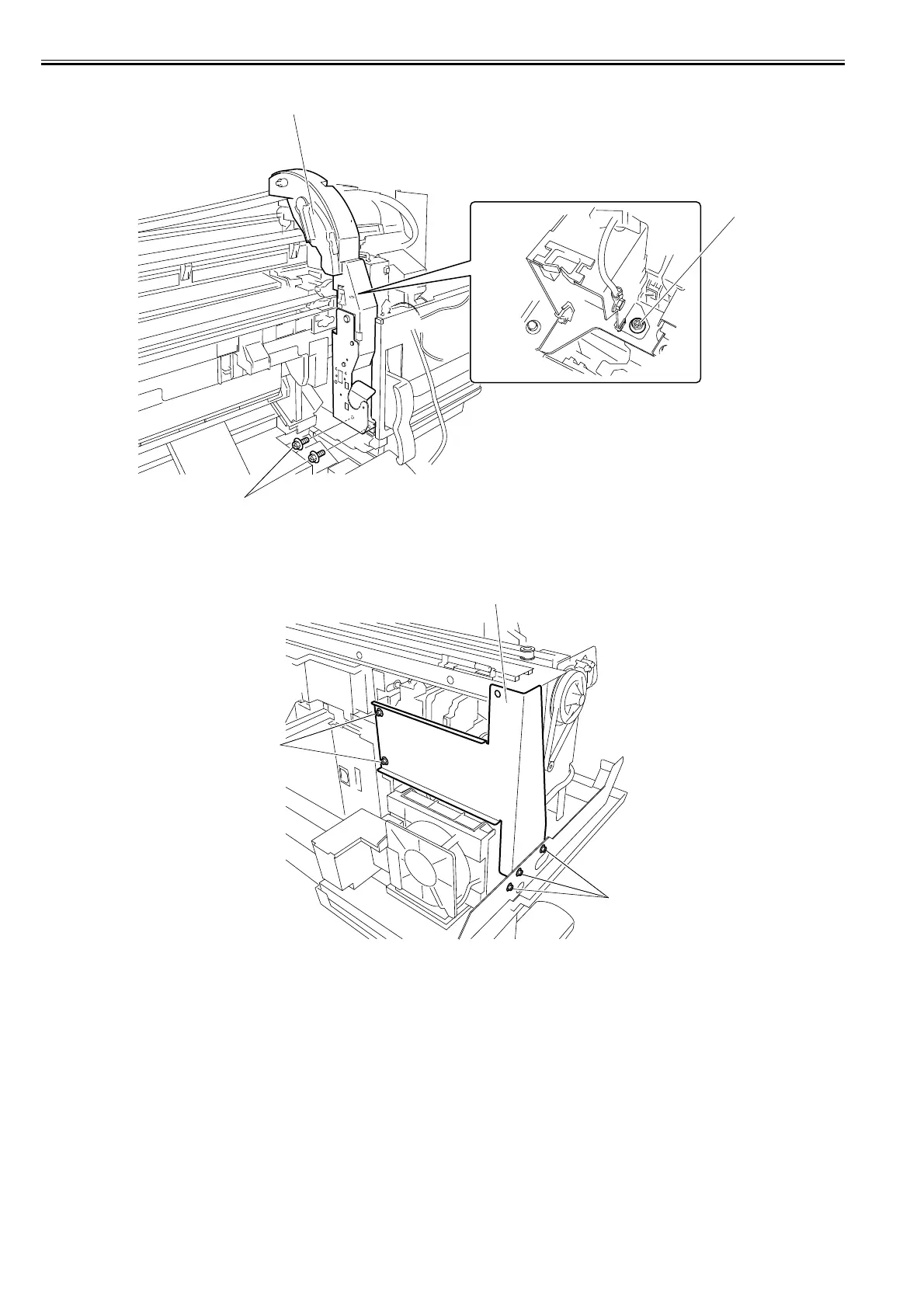

4) Remove three screws [1] to remove cover stay unit (R) [2].
F-4-27
q) Cover stay unit (L)
Removing the cover stay unit (L)
1) Remove five screws [1] to remove left rear support plate [2].
F-4-28
[1]
[1]
[2]
[1]
[1]
[2]
