Canon imagePROGRAF iPF815 - Page 165

Chapter 4
4-15

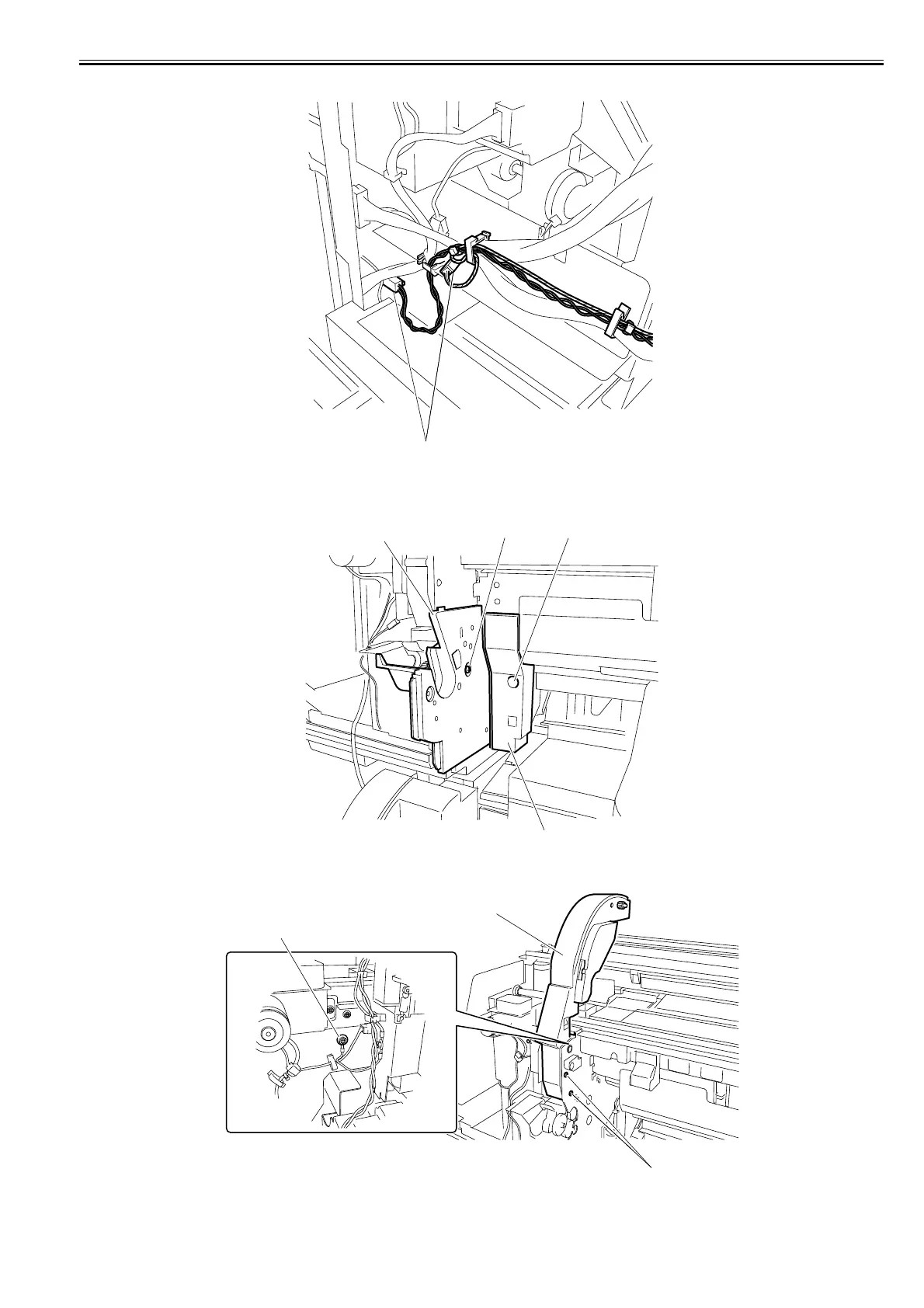

2) Disconnect two connectors [1] from the back of the printer to release the harness from the harness guide.
F-4-29
3) Remove screw [1] to remove left front inner cover [2].
4) Remove screw [3] to remove spool holder [4].
F-4-30
5) Remove screw [1] to remove cover stay unit [2].
F-4-31
[1]
[3]
[4]
[1]
[2]
[1]
[1]
[2]
