Canon imagePROGRAF iPF815 - Page 172

Chapter 4
4-22

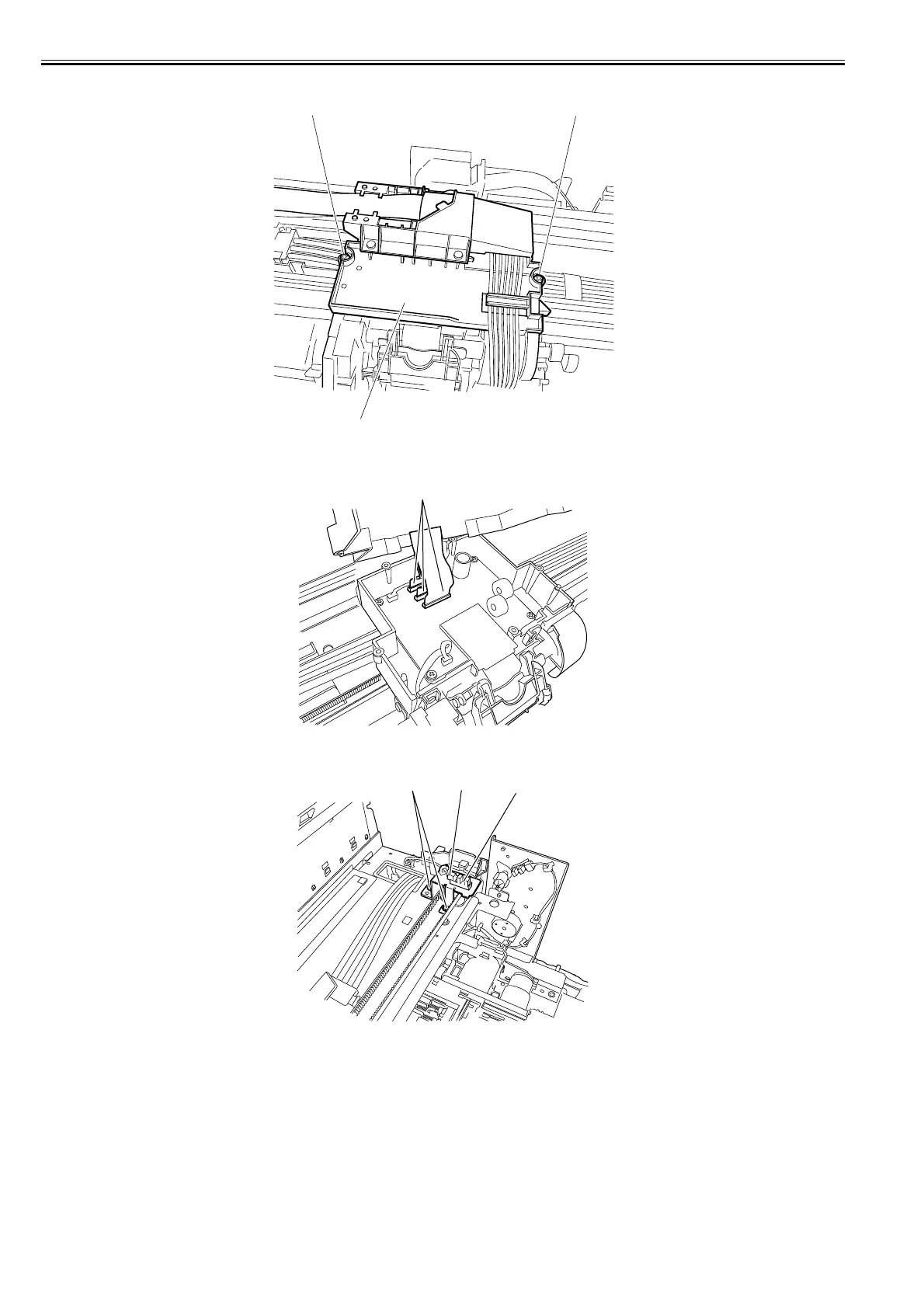

5) Remove two screws [1] to remove carriage upper cover [2].
F-4-43
6) Remove three connectors [1].
F-4-44
7) Remove two screws [1] and connector [2] to remove carriage HP sensor assembly [3].
F-4-45
[1]
[1]
[2]
[1]
[3]
[1]
[2]
