Chapter 4
4-27

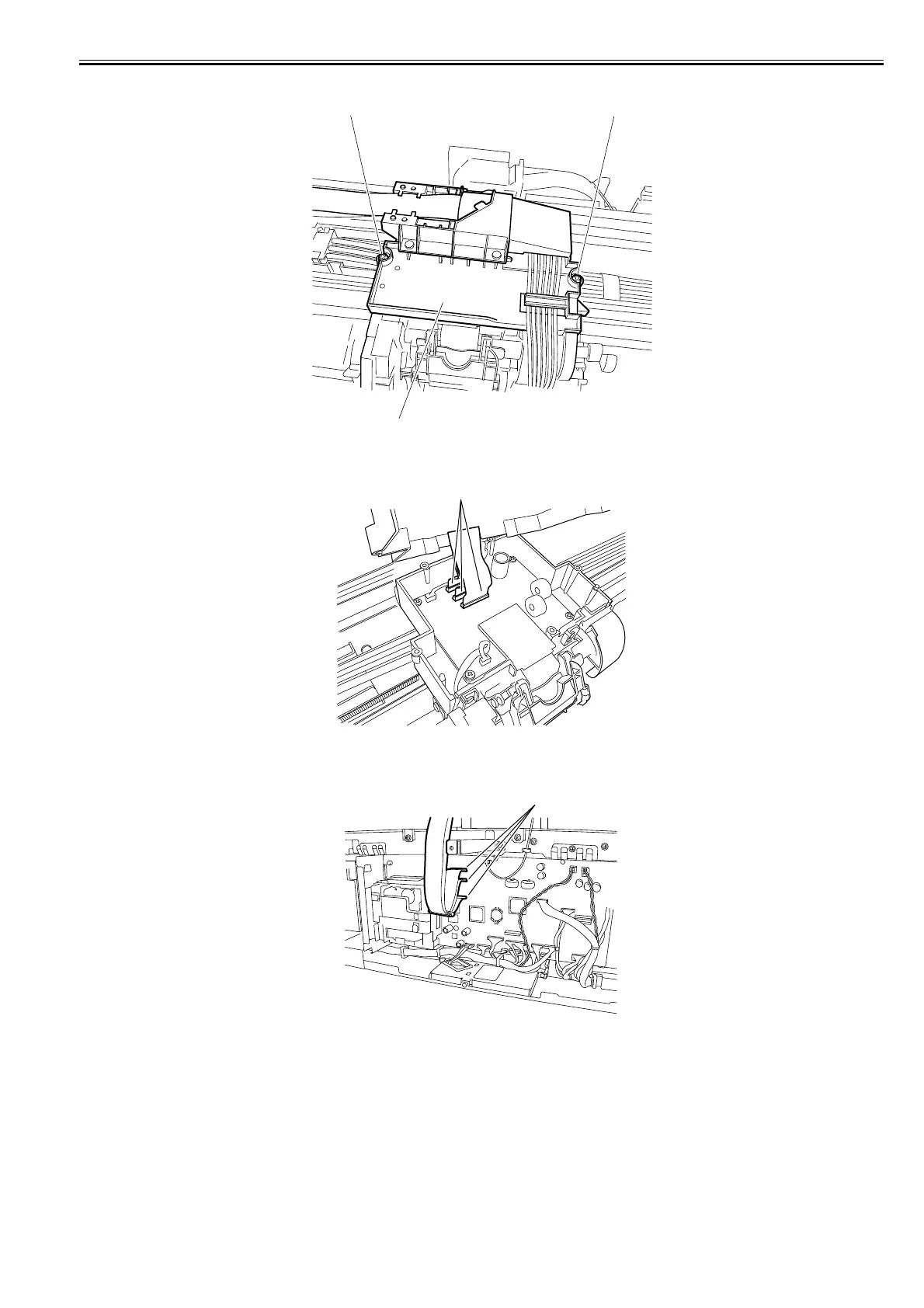

5) Remove two screws [1] to remove carriage upper cover [2].
F-4-53
6) Remove three connectors [1].
F-4-54
7) Remove the PCB cover.
8) Remove three connectors [3] from the main controller PCB.
F-4-55
[1]
[1]
[2]
[1]
[1]
