Canon imagePROGRAF iPF815 - Page 186

Chapter 4
4-36

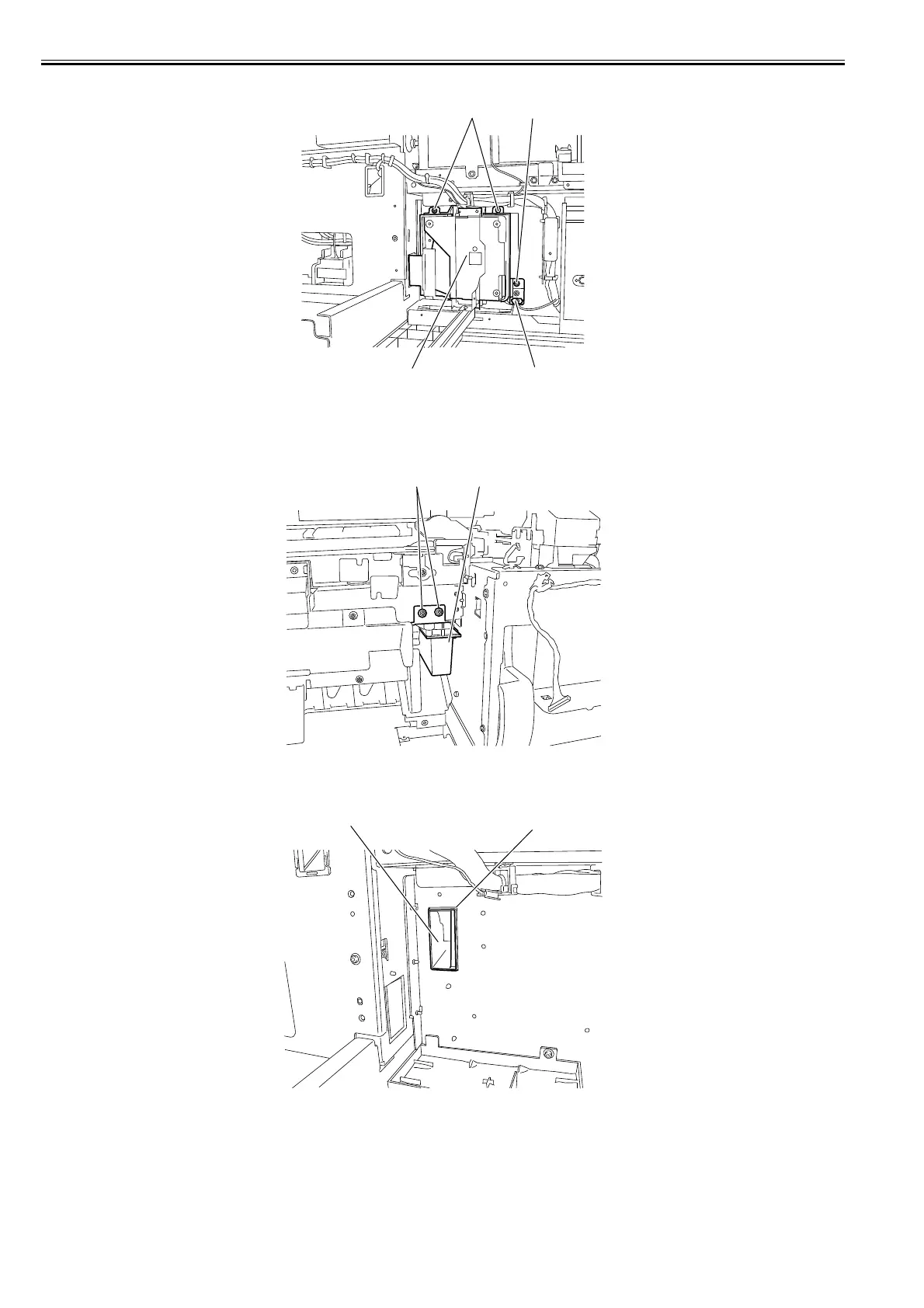

3) Remove three screws [1] and connector [2] to remove platen suction fan unit [3].
F-4-80
d) Removing the platen suction duct
1) Removed the cover stay unit (R).
2) Remove two screws [1] to remove platen suction duct [2].
F-4-81
e) Precaution in mounting the platen suction duct
Check that platen suction duct [1] is firmly seated in hole [2] in the rear side plate.
F-4-82
[1] [1]
[2][3]
[1] [2]
[1]
[2]
