Chapter 4
4-37

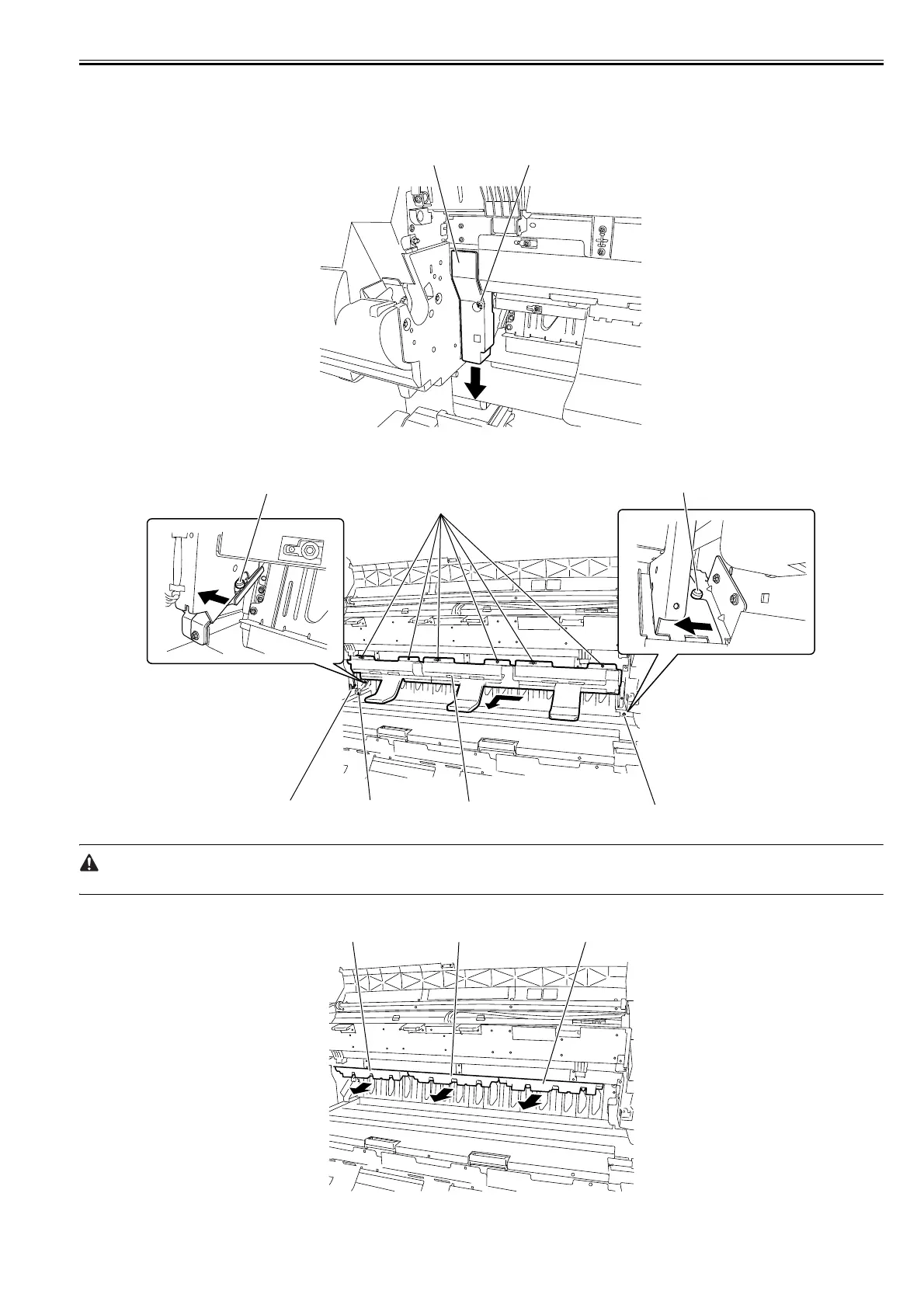

f) Removing the platen ink BOX unit
1) Open the upper cover.
2) Raise the ejection guides.
3) Pull out the lower roll unit as far as possible.
4) Remove screw [1] to remove left front inner cover [2].
F-4-83
5) Remove eight screws [1] and connector [2] and remove slide pick-up unit [4] by sliding it to the left to release the groove from two pins [3].
F-4-84
The pick-up unit weighs about 27kg. Use maximum care not to drop it or let it hit other objects.
6) Slide platen ink BOX unit [1] to the front out of position.
F-4-85
To Next Page
