Chapter 4
4-41

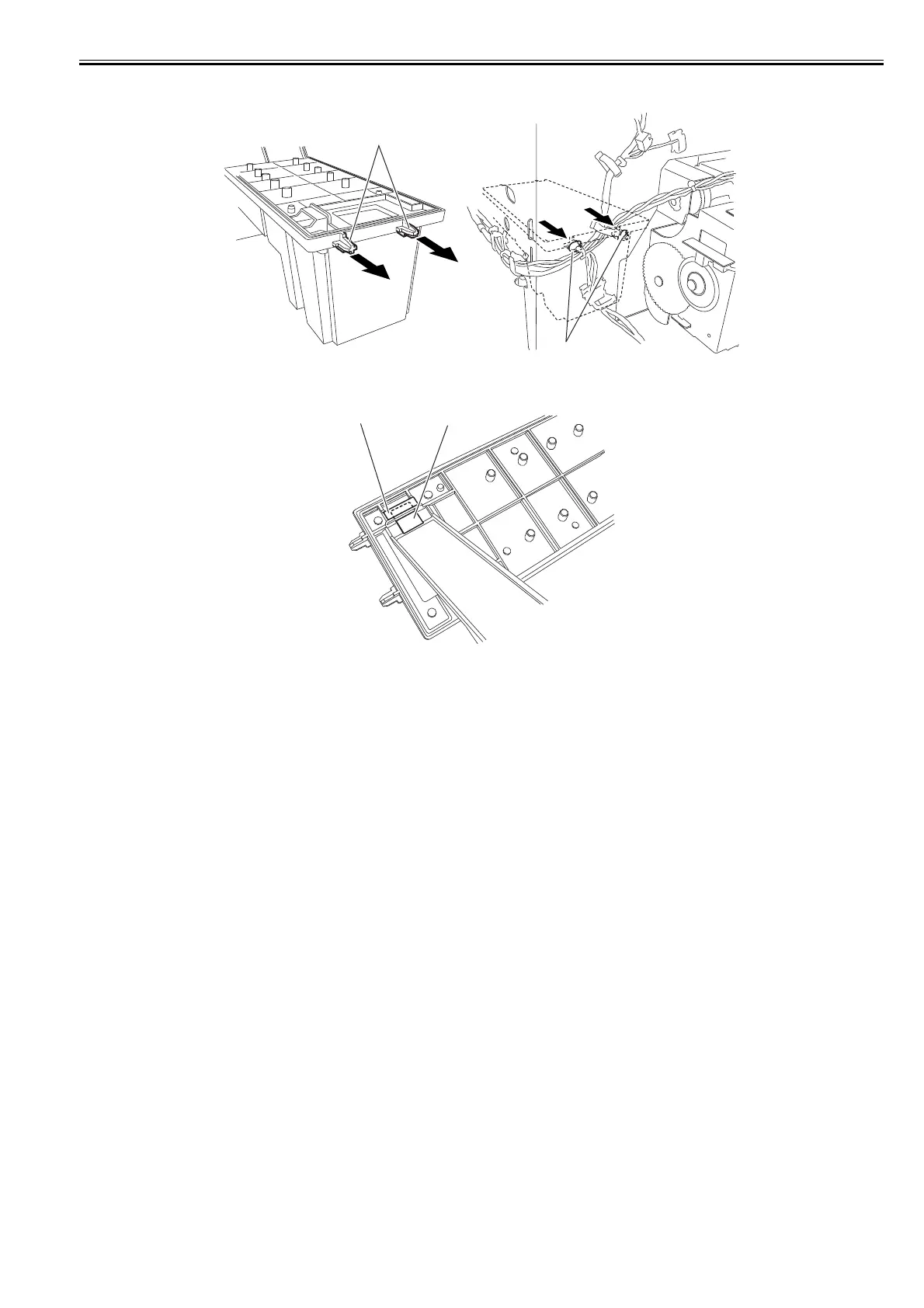

j) Precaution in mounting the BP maintenance jet ink BOX unit
- Check that bosses [1] on the BP maintenance jet ink BOX unit are inserted in hole [2] in the side plate.
F-4-95
- Check that boss [1] on the duct is inserted in the groove [2] in the BP maintenance jet ink BOX unit.
F-4-96
[1]
[2]
[1][2]
