Chapter 4
4-40

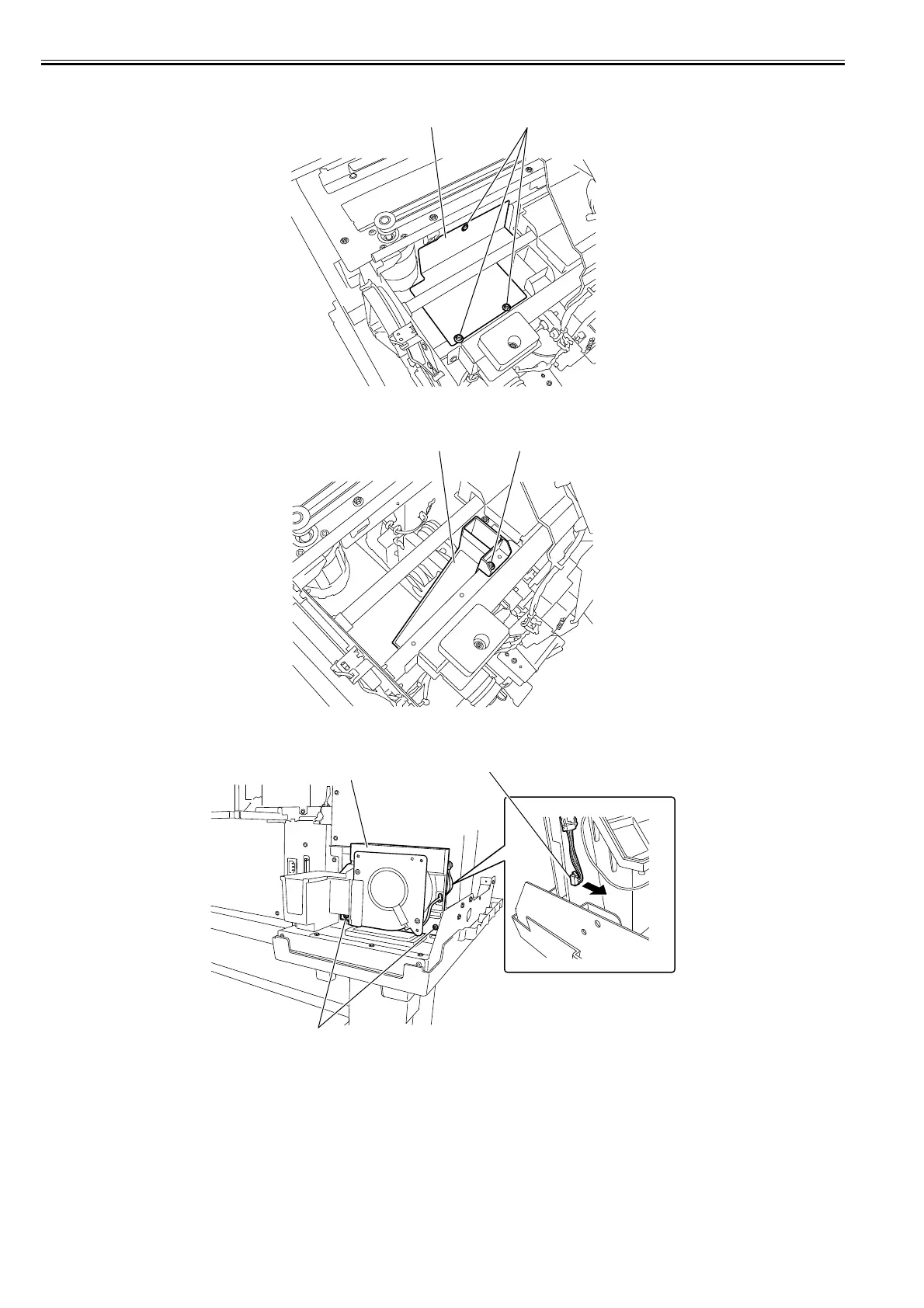

i) Removing the BP maintenance jet ink BOX unit
1) Remove three screw [1] to remove support plate [2].
F-4-92
2) Remove screw [1] to remove duct [2].
F-4-93
3) Remove two screws [1] and connector [2] to remove BP maintenance jet ink BOX unit [3].
F-4-94
[1][2]
[2] [1]
[2]
[1]
[3]
