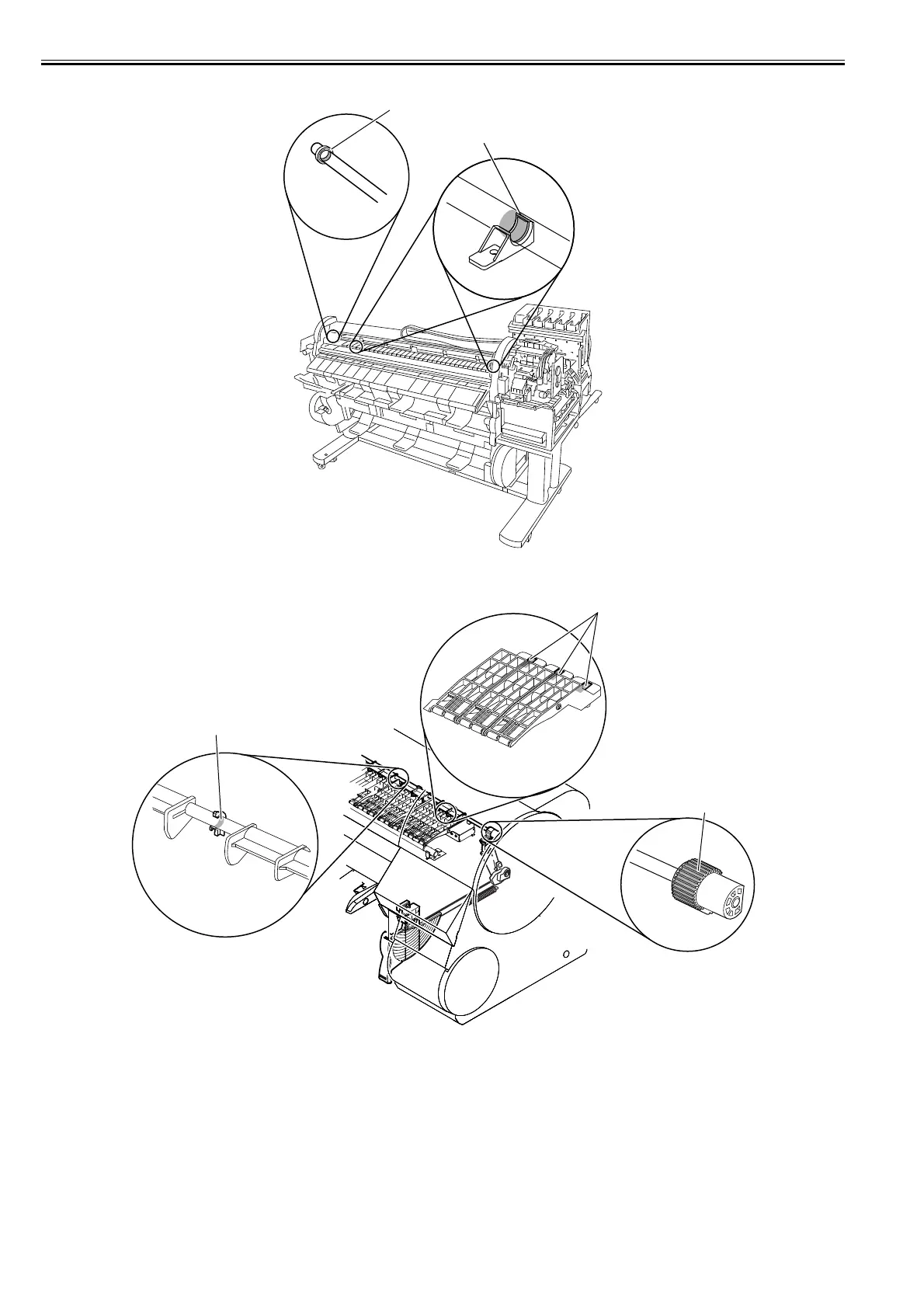

2. Feed roller backup [1](2 parts)/Feed roller bearing [2]
F-4-115
3. Pinch roller release bushing [1](5 parts)/Pinch roller pressure release gear [2]/The concave of the pinch roller arm [3](28 parts)
F-4-116
[1]
[2]
[1]
[3]
[2]
