Canon iPF600 series - Manual Loading Area; Roll Feed Unit Cover (Inside)

Chapter 1
1-18

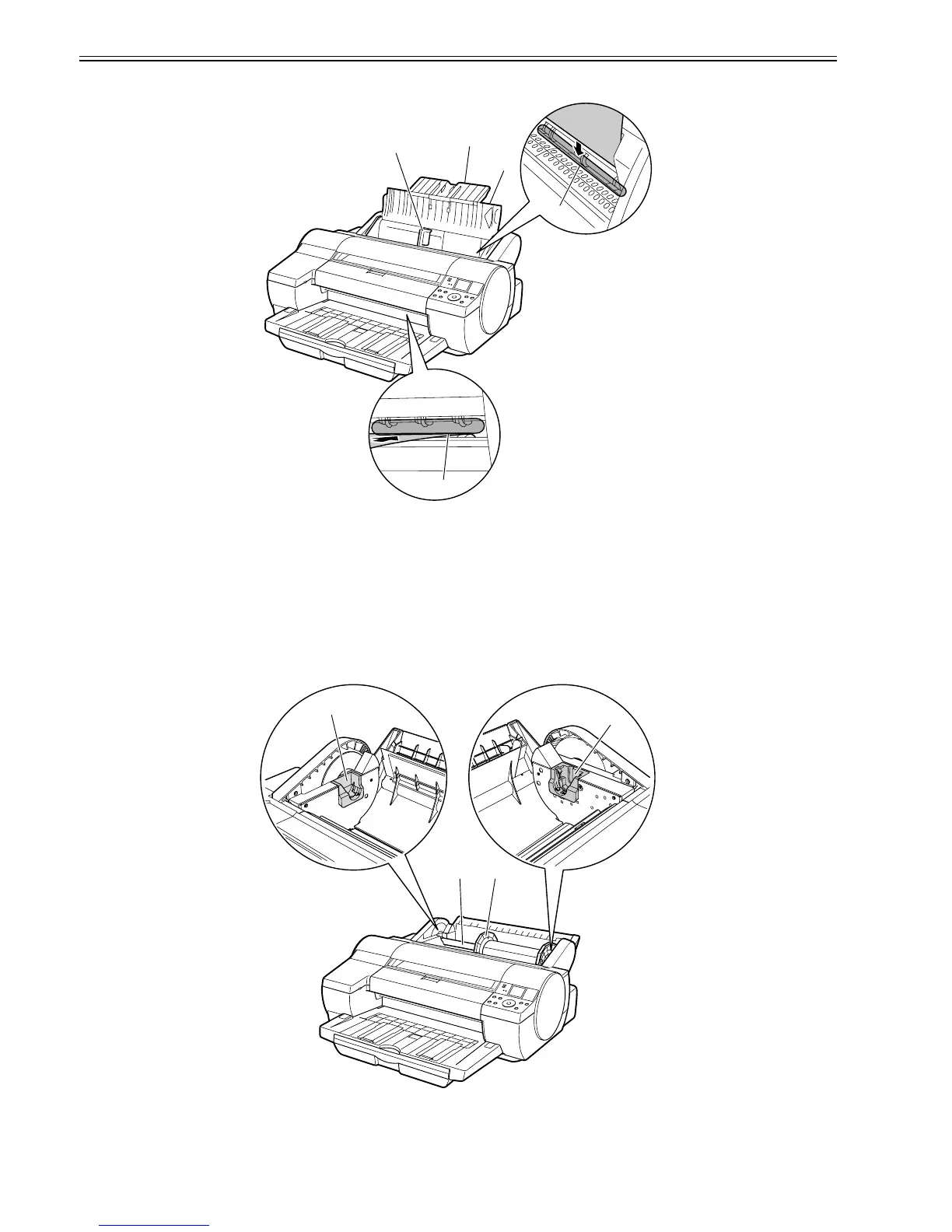

1.5.4 Manual Loading Area
0017-4564
F-1-20
[1] Paper tray cover
In loading paper in a paper tray, open this cover.
[2] Paper support
In loading paper in a paper tray, open the paper tray cover and then this tray.
[3] Width guides
In loading cut sheet, move the guide to adjust to the paper size.
[4] Paper tray front loading port (Paper eject slot)
In loading thick paper, insert it into this port. All printed matter is ejected from this port.
[5] Paper tray top loading port
In loading cut sheet, insert them into this port.
1.5.5 Roll Feed Unit Cover (Inside)
0017-4570
F-1-21
[1] Roller holder
Set roll media on this holder.
[2] Holder stopper
[1]
[2]
[3]
[4]
[5]
[3]
[3]
[2] [1]
