4.3.4 External Covers
0017-5613
a) Left/right circle cover
Removing the left/right circle cover

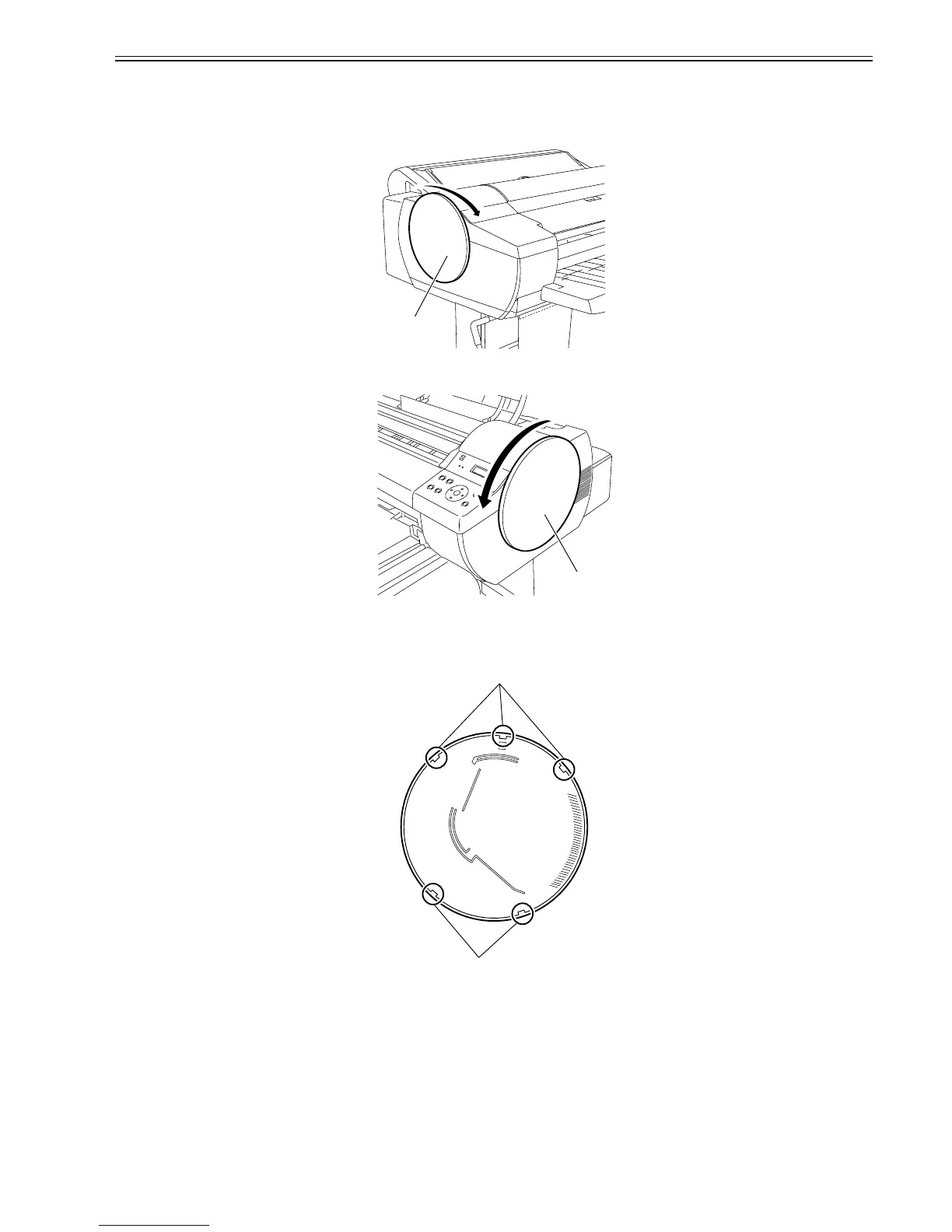

1) When removing the left circle cover [1], turn it in the direction of the arrow.
F-4-4
2) When removing the right circle cover [1], turn it in the direction of the arrow.
F-4-5
Attaching the left/right circle cover
1) When attacing the left circle cover, fit it in place with the three hooks [1] up and turn it toward the rear side of the printer. when attacing the right circle cover,
fit it in place with the two hooks [2] up and turn it toward the rear side of the printer.
F-4-6
[1]
[1]
[2]
[1]
