b) Roll Feed Unit

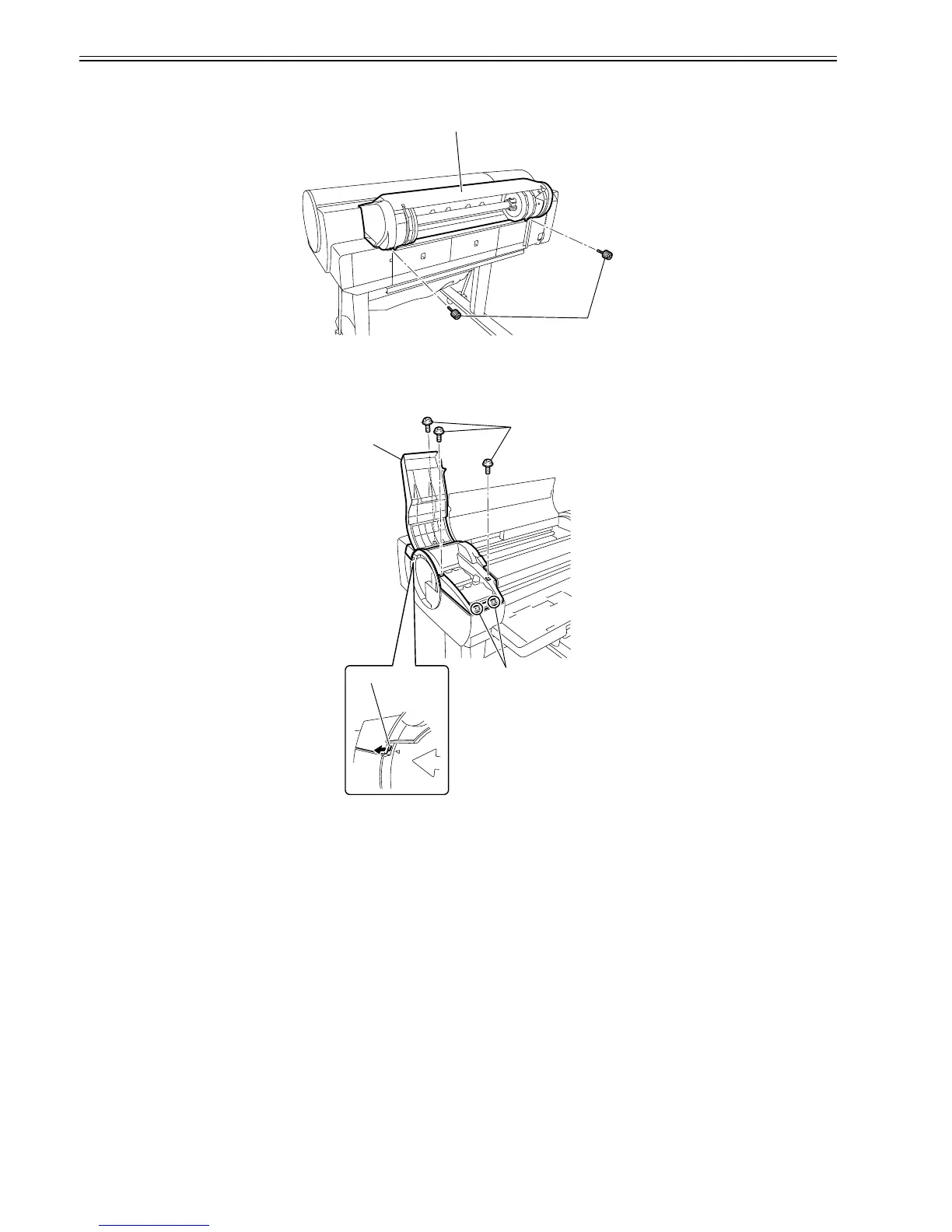

Removing the roll feed unit
1) Remove two coin screws[1] to remove roll feed unit [2].
F-4-7
c) Tank cover
Removing the tank cover
1) When removing the tank cover[4], remove the left circle cover and then open the top cover.
2) Open the tank cover, remove the three screws[1], and then release the two hooks[2] while opening the hook[3] outward.
F-4-8
d) Left cover
Removing the left cover
[2]
[1]
[1]
[4]
[2]
[3]
