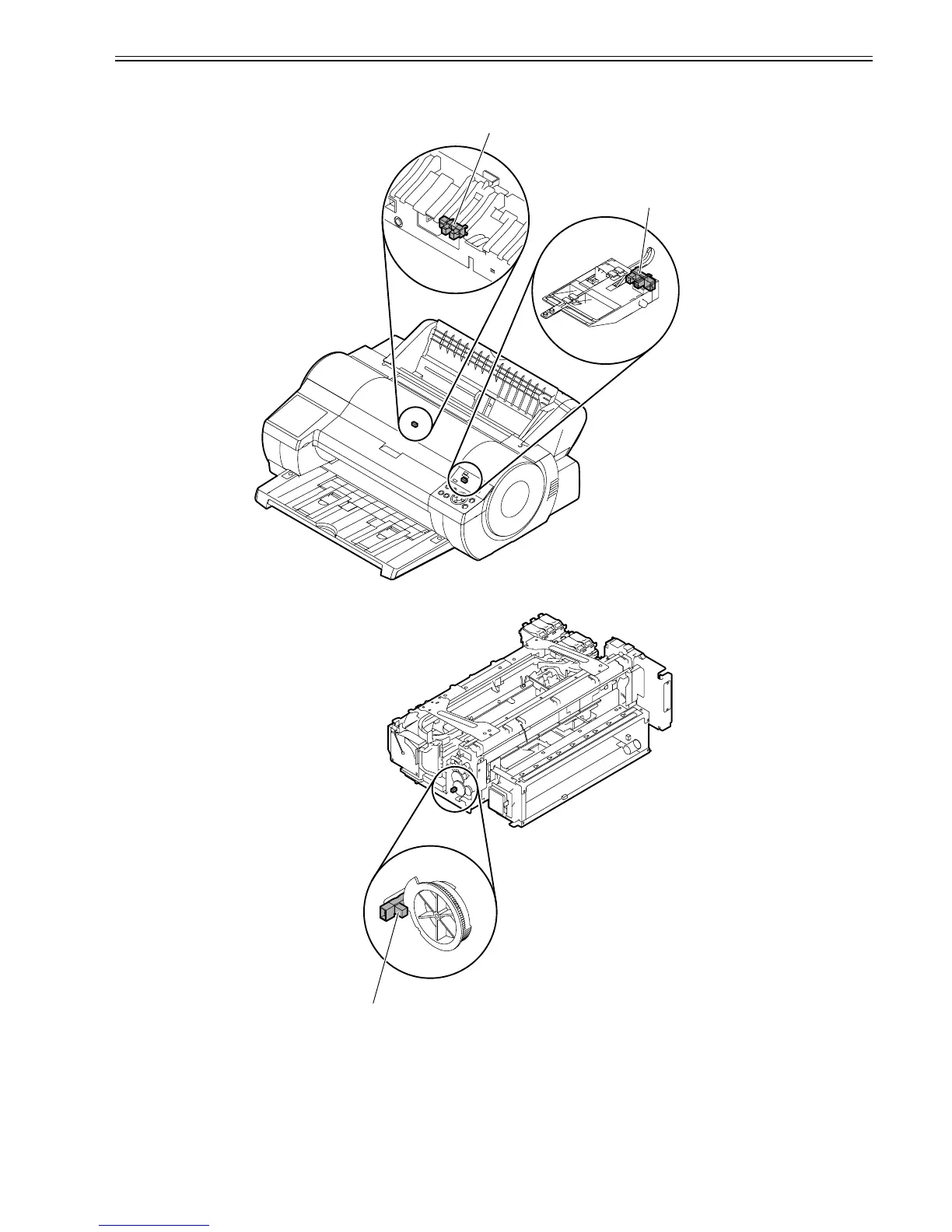

At the bottom of the cassette unit are mounted a cassette detection sensor and a cassette paper detection sensor to check whether a cassette is loaded and whether
paper is present in the cassette.
The pressure plate is moved up and down by the cam and the movement is detected by the casette cam sensor.
F-2-26
F-2-27
cassette paper detection sensor
cassette detection sensor
cassette cam sensor
