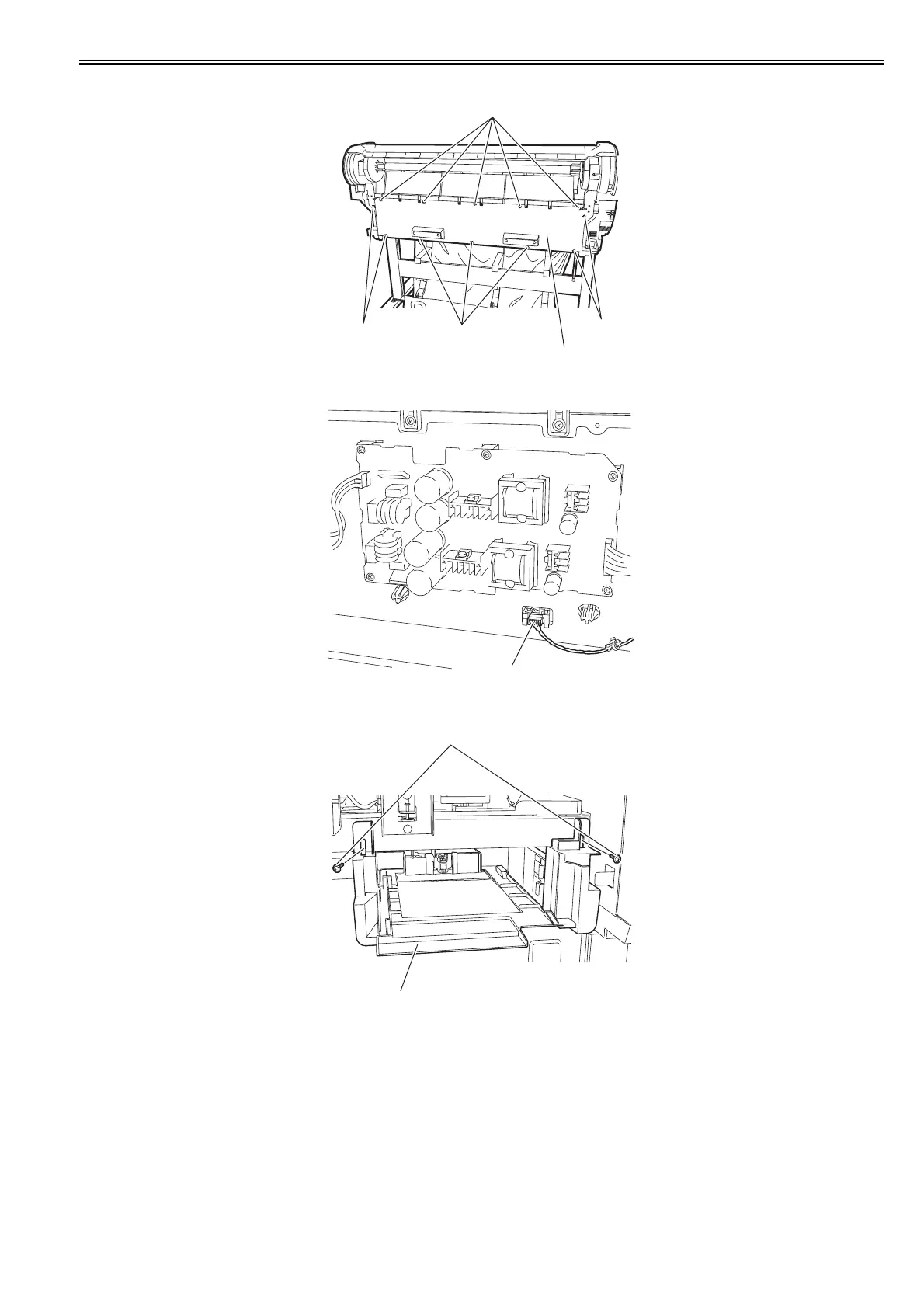

3) Remove twelve screws [1], and then remove the rear cover [2].
F-4-45
4) Disconnect the connector [1].
F-4-46
5) Remove two screws [1], and then remove the maintenance cartridge holder unit [2].
F-4-47
[1]
[1]
[1]
[1]
[2]
[1]
[1]
[2]
