b) Valve Motor Unit
Removing the Valve Motor Unit
1) Remove the ink tank unit.
2) Remove three screws [1] and disconnect two connectors [2], and then remove the cable from the cable guide to remove the valve motor unit [3].

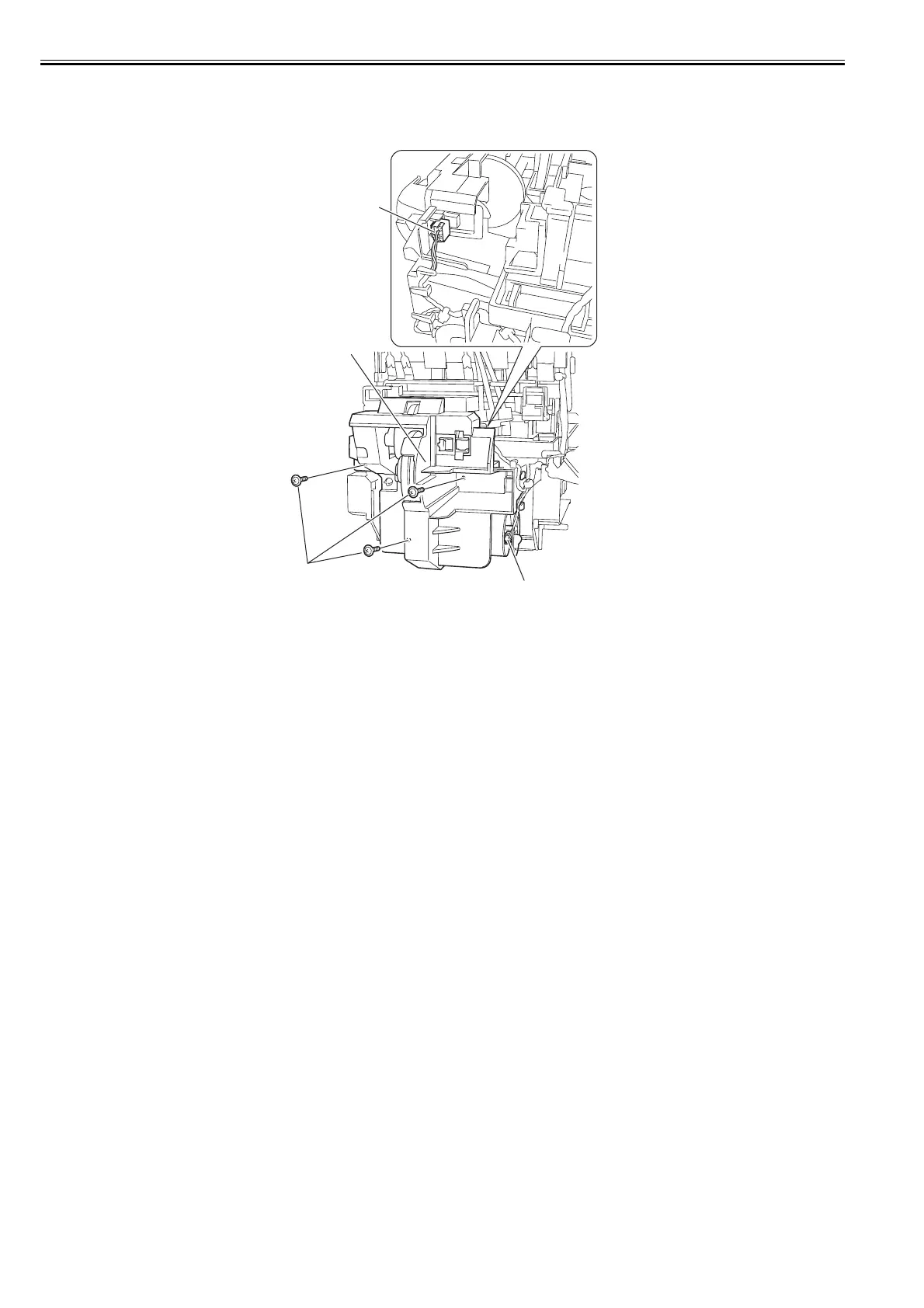

F-4-58
[1]
[2]
[2]
[3]
