Canon MVX200i E - Separation of Shields

MVX250i E, MVX200i E, MVX200 E
DISASSEMBLING
10
1-8 Separation of Shields

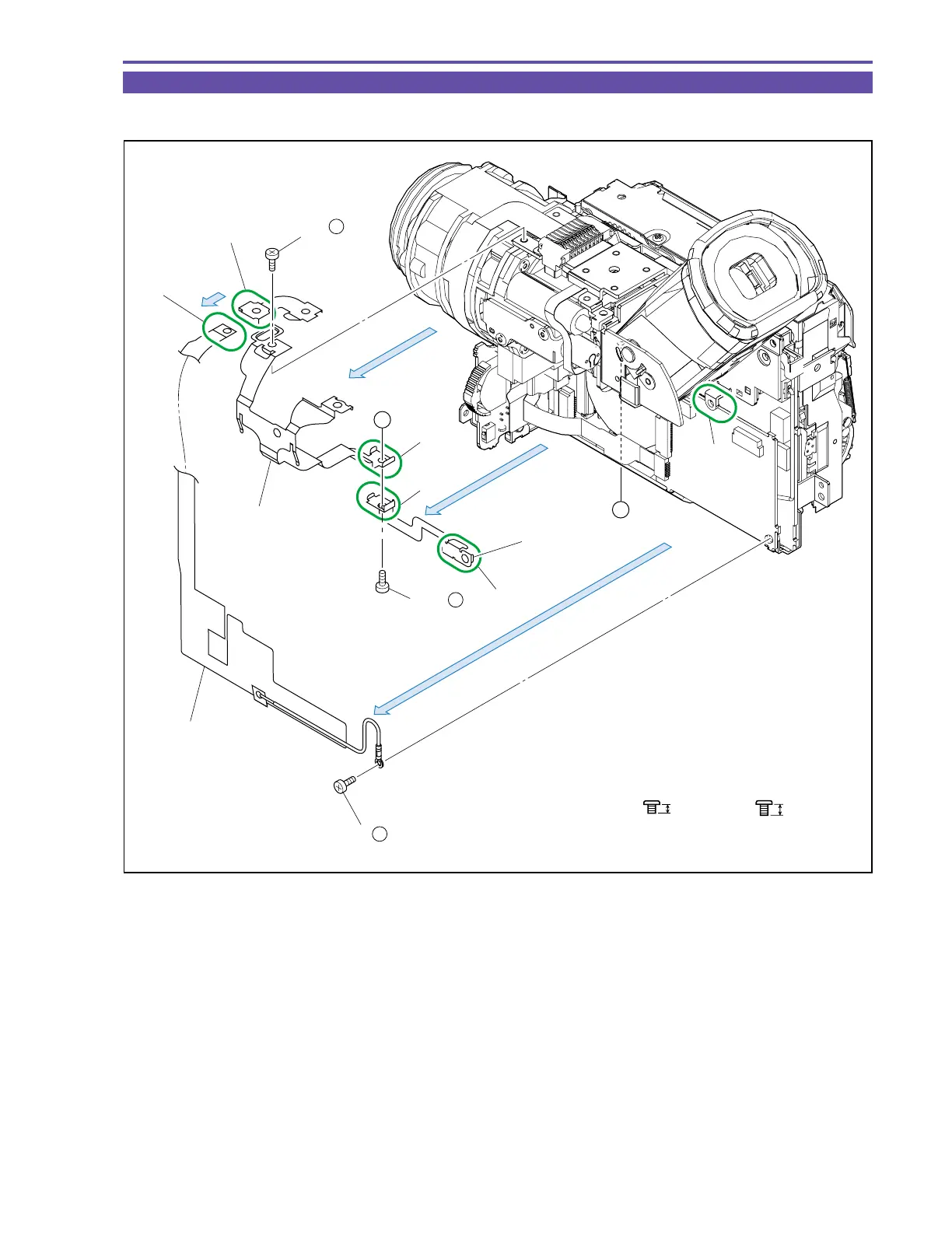

(1) Remove three screws (j × 2, k × 1), and then detach the Lens Shield, Lens Shield B, and FPC Shield Unit.
Fig. 7
k
2.5mm
Metal
M1.7
Metal
M1.7
2mm
j
(1)
(1)
(1)
(1)
Part A
Part C
Lens Shield
Part B
Part D
Part E
Part F
FPC Shield Unit
A
A
(1) - k
(1) - j
(1) - j
Lens Shield B
