MVX250i E, MVX200i E, MVX200 E

SERVICE MODE · ADJUSTMENT

2-2 Setting A

Envelope observation)

(1) Observe a PB-RF signal output from each extension connector that has been attached in 2-1 “Using the Extension Connectors”.

Tracking Adjustment)

(1) Detach the regulation cover.

* : To avoid flawing the regulation cover, detach it from the inside of the left cover as illustrated.

(2) While observing a PB-RF signal, adjust the post to eliminate

fluctuations of the envelope.

Note : When the tracking adjustment is going to be per-

formed, refer to “5-9 Tape Path Adjustment” on

p.36.

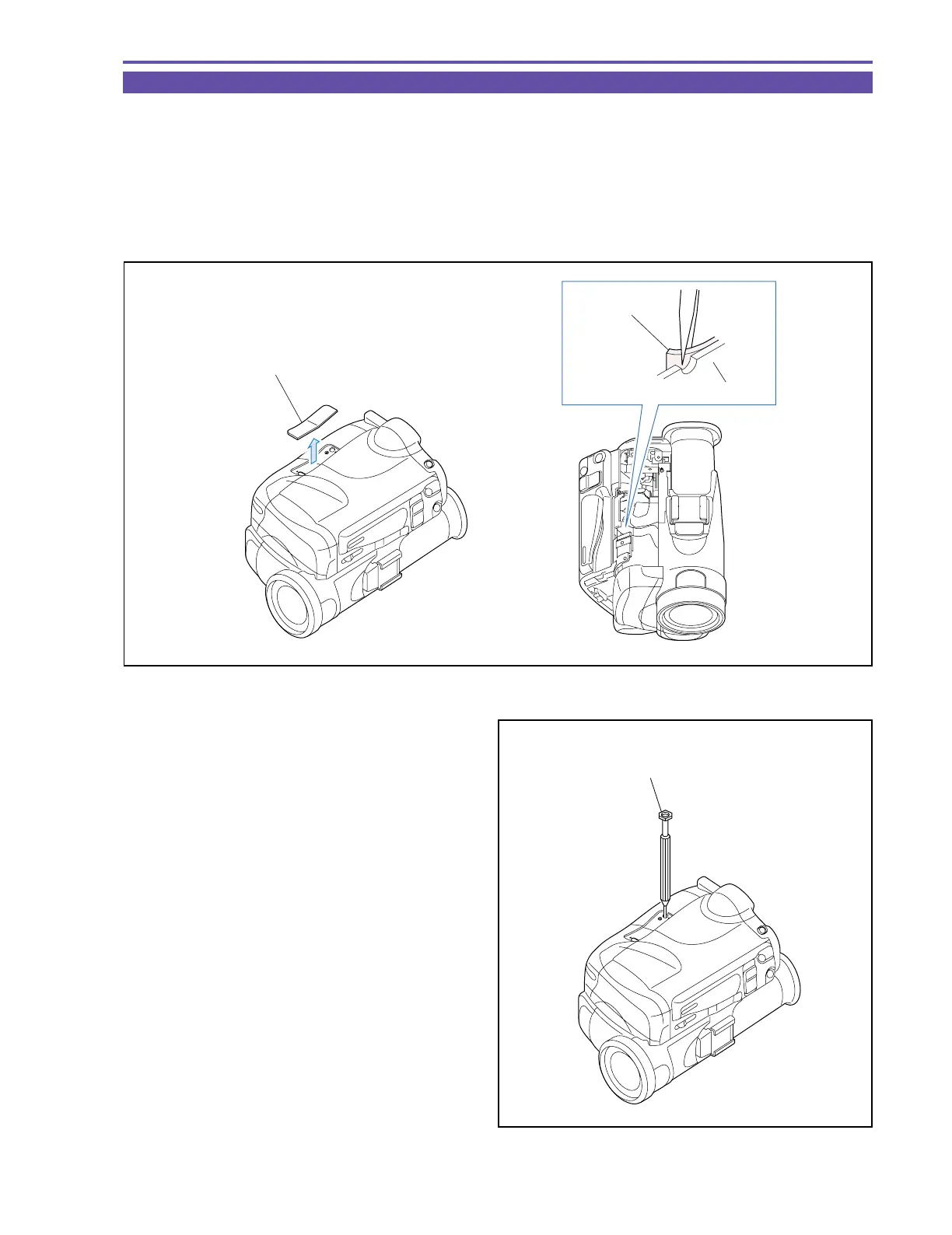

Fig. 4

REGULATION COVER

LEFT COVER

REGULATION

COVER

Fig. 5

ADJUSTMENT DRIVER

(DY9-2053-000)
