MVX250i E, MVX200i E, MVX200 E

DISASSEMBLING

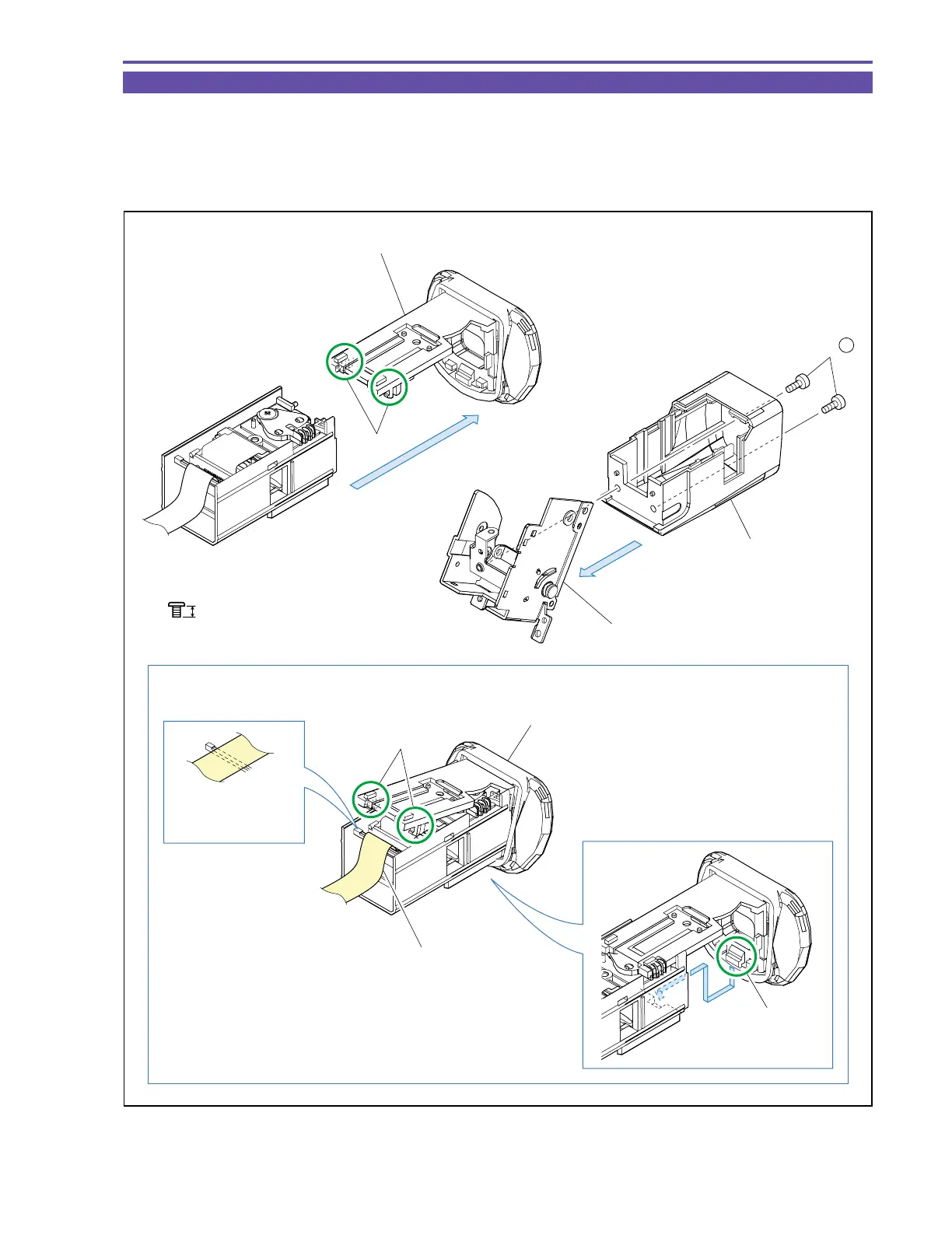

1-32 Disassembly of CVF Unit - 3

(1) Disengage two claws A, and detach the CVF Inner Bottom Cover Ass’y.

(2) Remove two screws (k × 2), and detach the CVF Hinge Unit.

(1) Attach the CVF Inner Bottom Cover Ass’y as illustrated below.

Fig. 40

2.5mm

Metal

M1.7

Note on Reassembling (1)

First engage the Eye Piece side (claw B)

and engage the claw A.

Claw A

(2)

CVF Top Cover

CVF Hinge Unit

Running CVF FPC

between the ribs.

Claw B

Eye Piece

CVF FPC

(2) - k

(1)

CVF Inner Bottom Cover Ass'y
