Canon VB-H43 User Manual

143
7

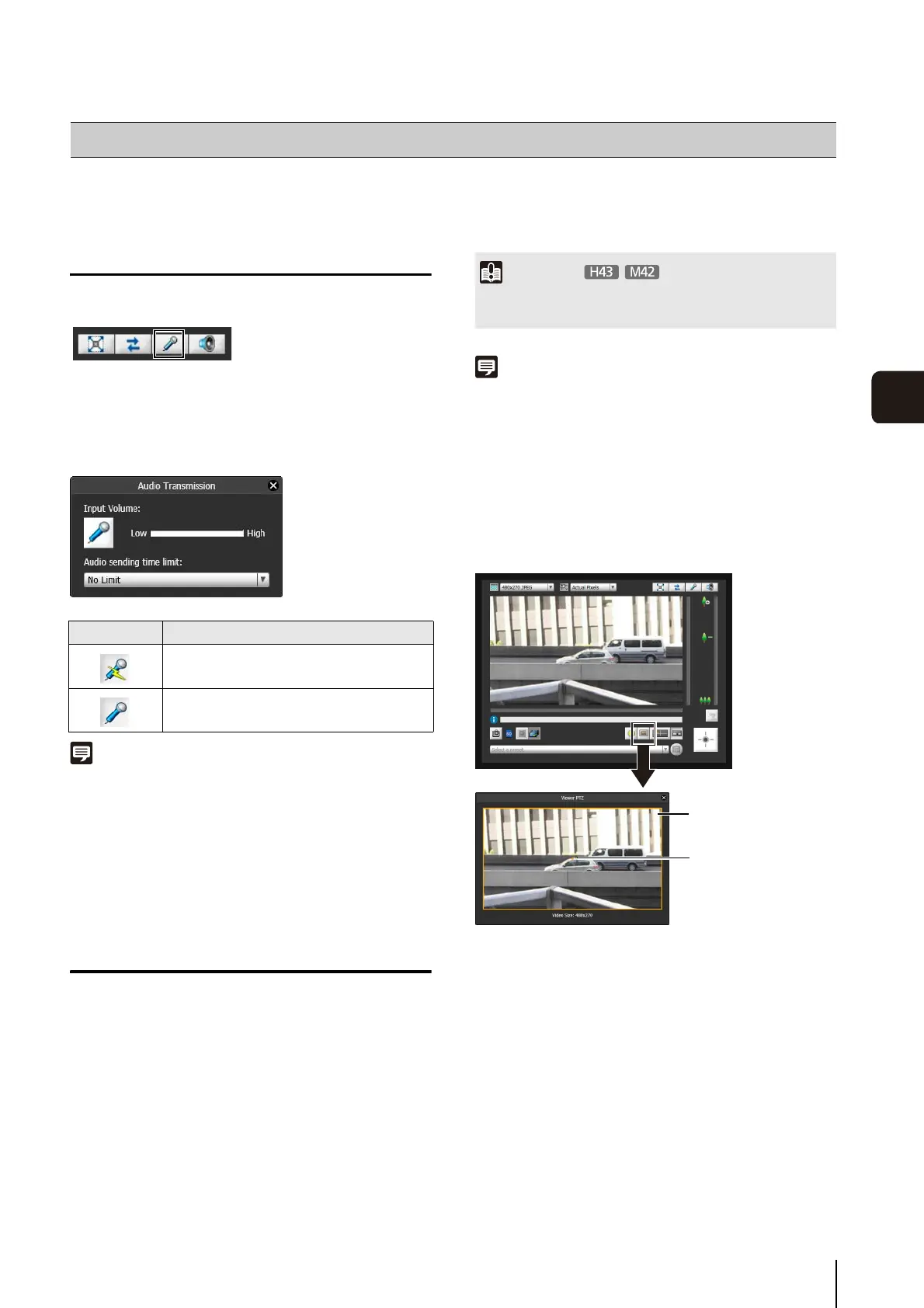

Admin Viewer/VB Viewer
The operations and settings that can be performed only in the Admin Viewer are explained.
Transmitting Audio
In the Admin Viewer, you can transmit audio via an
external device connected to the camera.
Click this button to transmit audio.
Use the slider to set an appropriate volume on the Audio
Transmission panel that appears.
In the [Audio sending time limit], select [No Limit], [1
min(s)], [5 min(s)] or [10 min(s)].
Note
• To transmit audio, set [Server] > [Audio Server] > [Audio
Reception from Viewer] to [Enable] on the setting page (p. 65).
• To use the audio function in environments that use a proxy
server, the camera IP address must be specified in [Internet
options] > [Connections] > [LAN settings] > [Proxy server] >
[Advanced] > [Exceptions] of Internet Explorer.
Magnifying Part of the Image (Viewer
PTZ)
You can use the Viewer PTZ panel to magnify part of the
camera’s image in the image display area.
 Viewer PTZ
Viewer PTZ uses the digital zoom function to enlarge part
of a video without using the camera pan, tilt or zoom
functions.
This function allows you to enlarge part of a video when
using the camera in a locked position, for example, during
use of an intelligent function.
Note
• Video cropped with Viewer PTZ will not be videos recorded
manually, or by event or timer.
• The cropped position in the image display area will be
reflected in full screen mode as well.
 Opening the Viewer PTZ Panel
Click the [Viewer PTZ] button to display the viewer PTZ
panel.
The initial status of the Viewer PTZ panel shows the
preview frame (yellow) occupying the entire image.
Performing Operations and Settings in the Admin Viewer
Icon Meaning
Transmitting audio
Not transmitting audio
Important
When the Viewer PTZ function is used, you cannot operate the
camera by clicking the image display area.
Preview Frame
(Magnified display area)
Center of preview
frame

Canon VB-H43 Specifications

General

Type	IP security camera
PTZ control	Yes
Processor model	Canon DIGIC DV III
Placement supported	Indoor
Light exposure modes	Aperture priority AE, Auto, Manual, Shutter priority AE
Connectivity technology	Wired
Form factor	Dome
Mounting type	Ceiling
Product color	White
Total megapixels	2.1 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 960 x 540, 1280 x 960, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Pan range	-170 - 170 °
White balance	Auto, Daylight, Fluorescent, Lamp, Manual
Tilt angle range	-90 - 10 °
Camera shutter speed	0.0000625 - 1 s
Minimum illumination	0.001 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	12 x
Optical zoom	20 x
Focus adjustment	1.6 - 3.5
Focal length range	4.7 - 94 mm
Security algorithms	EAP-MD5, EAP-TLS, EAP-TTLS, SSL/TLS
Password protection type	User
Built-in HDD	No
Internal memory	5 MB
Compatible memory cards	SD, SDHC, SDXC
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF
Compliance industry standards	802.3af PoE
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
Built-in microphone	-
AC input voltage	24 V
Power source type	PoE
Power consumption (max)	9.2 W
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 85 %

Weight and Dimensions

Width	132 mm
Height	155 mm
Weight	1140 g
