CanyCom CM141 - Floor Panel; Cutting Blade Shield

Maintenance
-38-
5
1. Remove 4 bolts.
2. Remove upper rear cover.

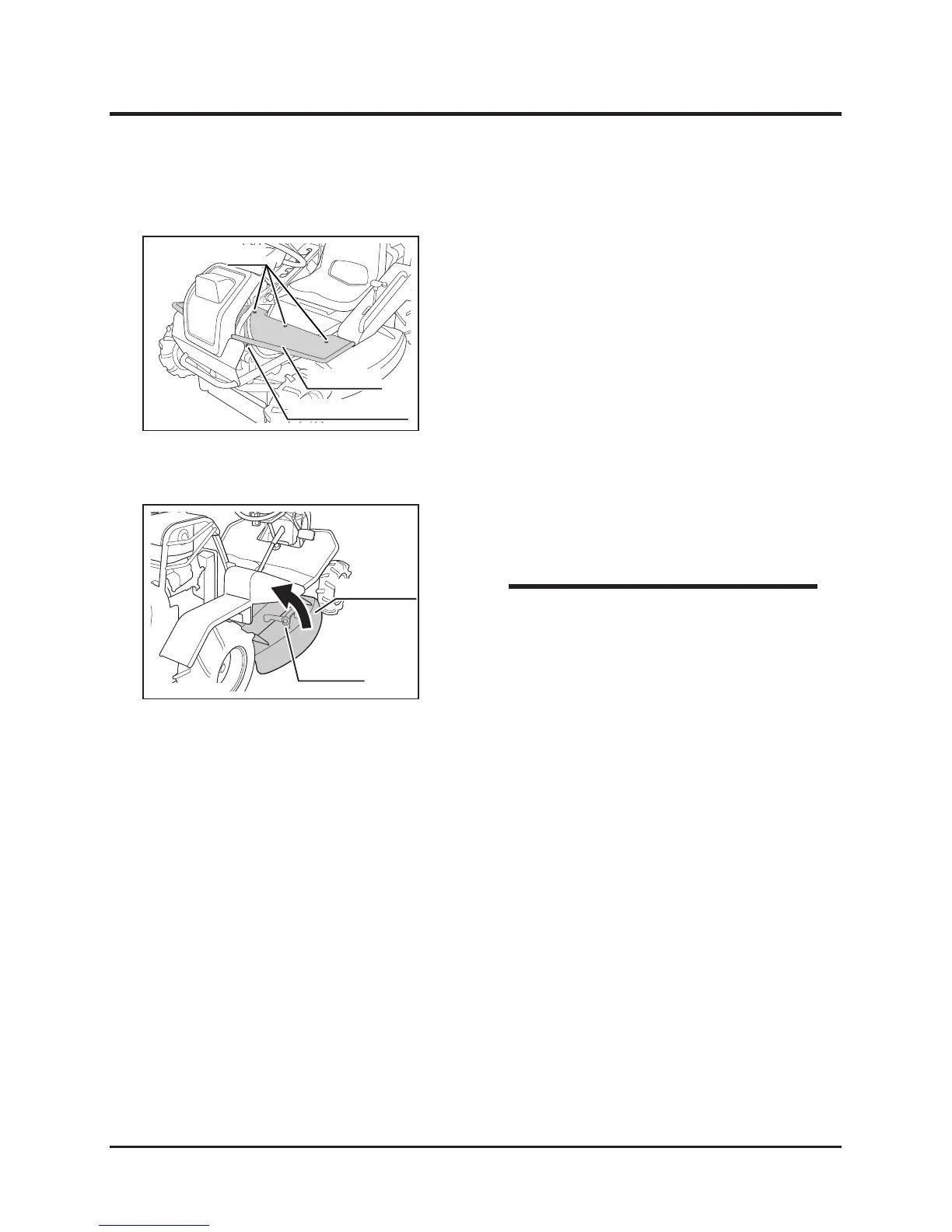

Floor Panel
Cutting Blade Shield
1. Loosen knob bolt and lift blade shield.
2. Tighten knob bolt and x blade shield rmly.
5331M-0505-060E
Bolts
Bolts (right and left)
Floor Panel
5331M-0505-040E
Knob Bolt
Blade Sheild
• Blade shield can not fully opened when
cutting height adjust lever is in [Transport]
position. Set cutting height adjust lever to
[3] or lower to fully open the blade sheild.
NOTE
