CanyCom CMX 224 - Head Lamp

Maintenance
-50-
5
Head Lamp
Tray
Knob Bolt
Fixing Bracket
5332M-0509-030E

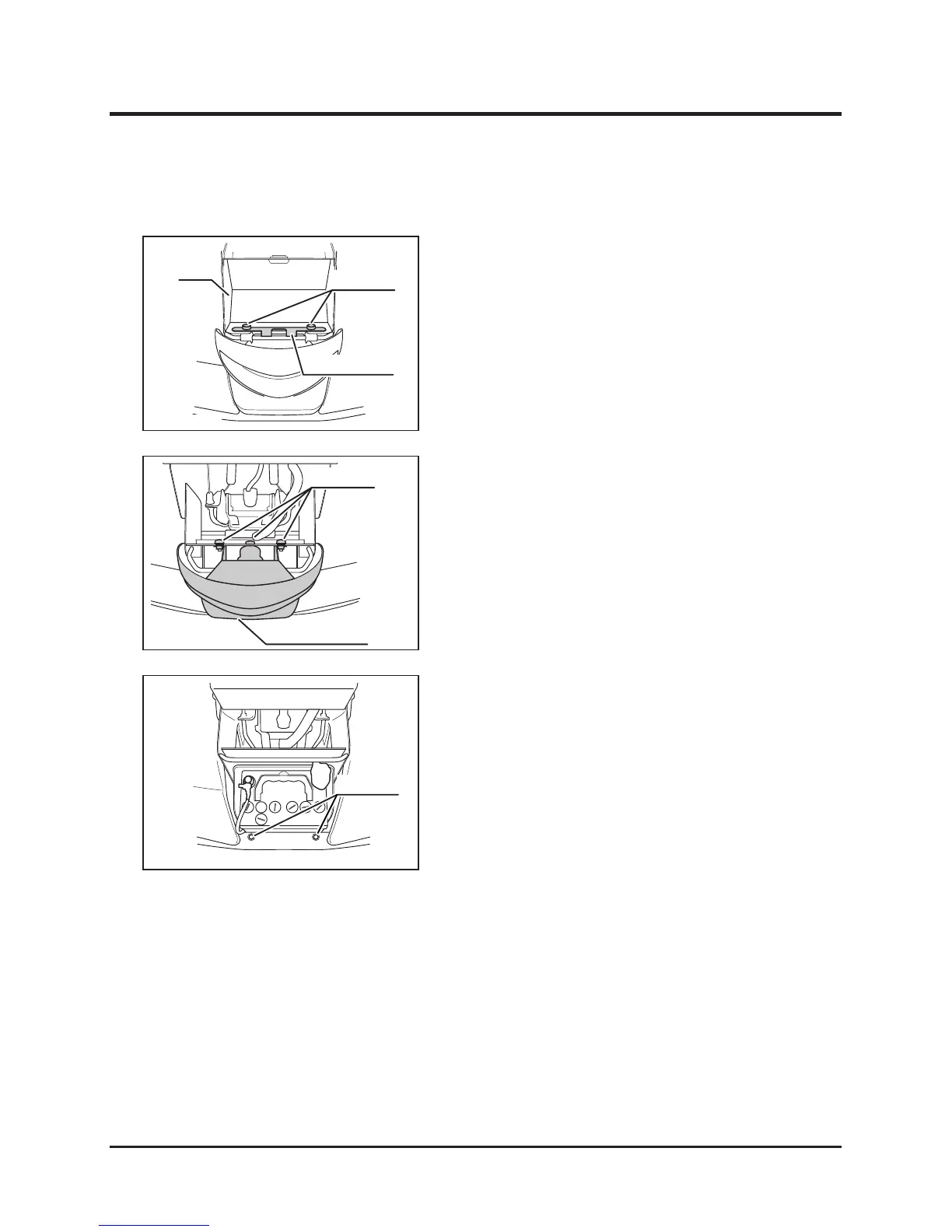

1. Remove front cover.
2. Remove 2 knob bolts xing the tray.
3. Remove xing bracket and lift tray.
Knob Bolt
Head Lamp Unit
5332M-0509-040E
4. Remove 3 knob bolts xing head lamp unit to
remove head lamp unit.
Grommet
5332M-0509-060E
5. Insert projections at the bottom of head lamp
unit into holes of grommet on bumper and
install adversely.
